Manual Air Conditioning System
Manual Air Conditioning System

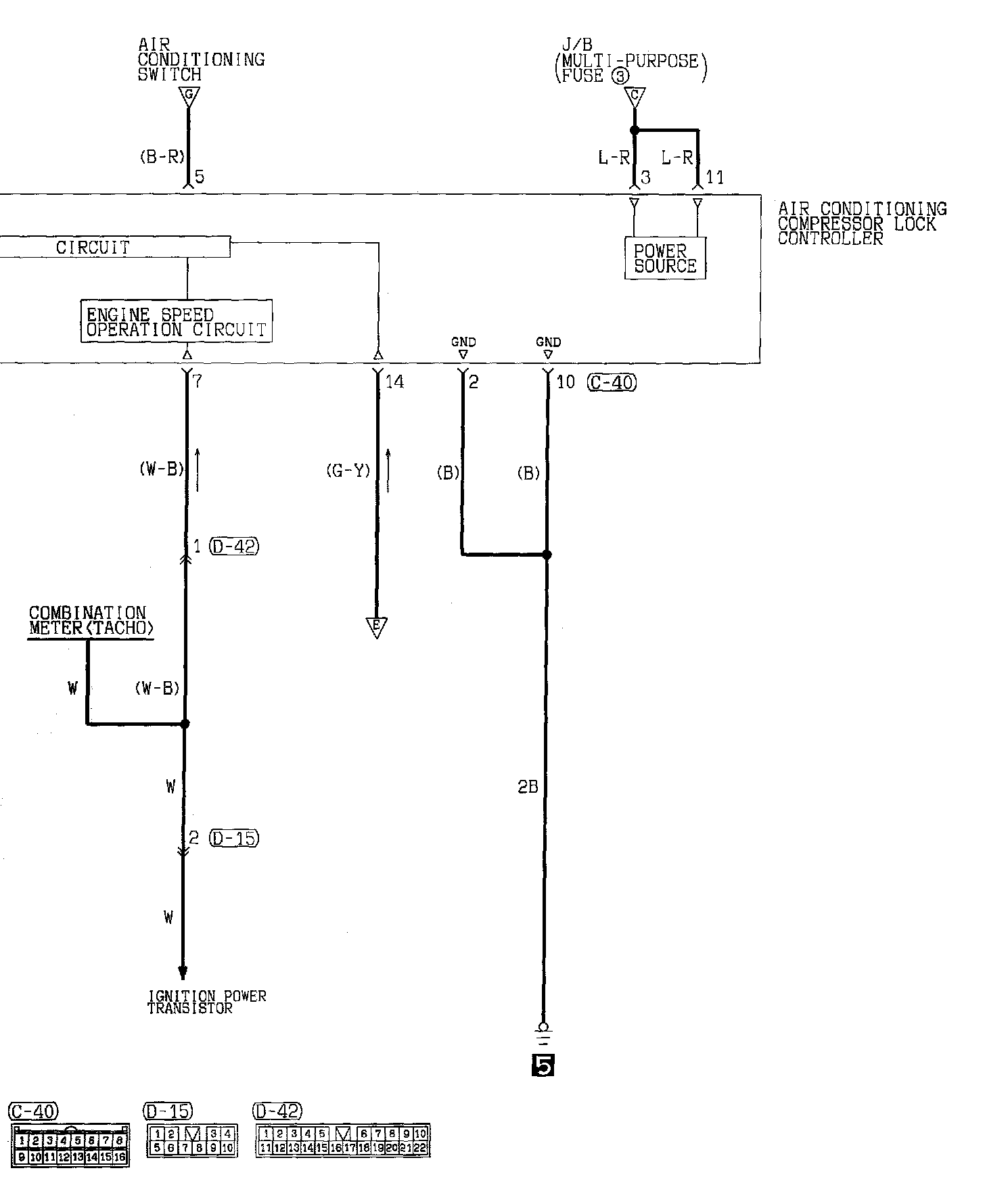

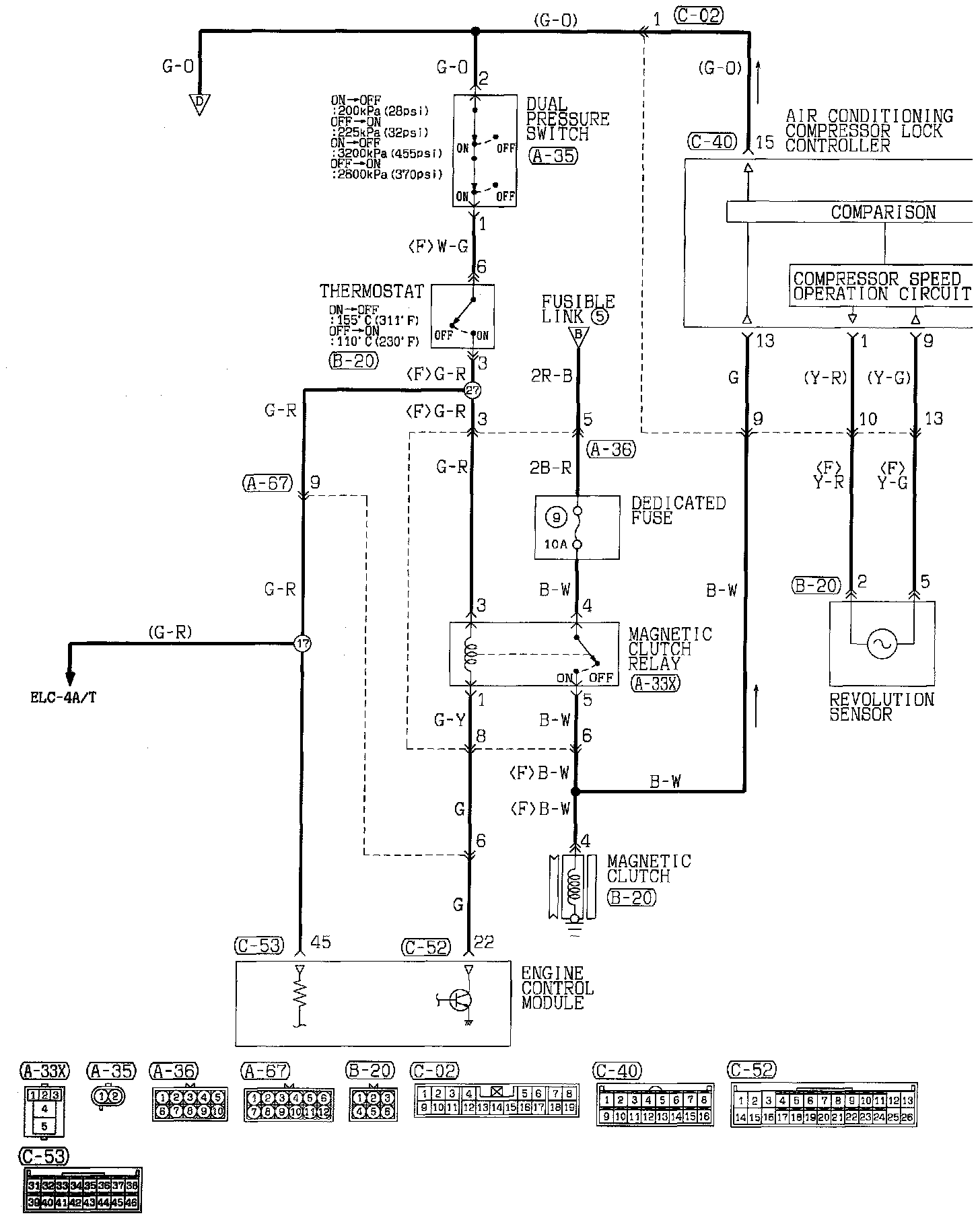

MANUAL AIR CONDITIONING CIRCUIT (1994,1995 MODELS)
