Turbocharger: Locations

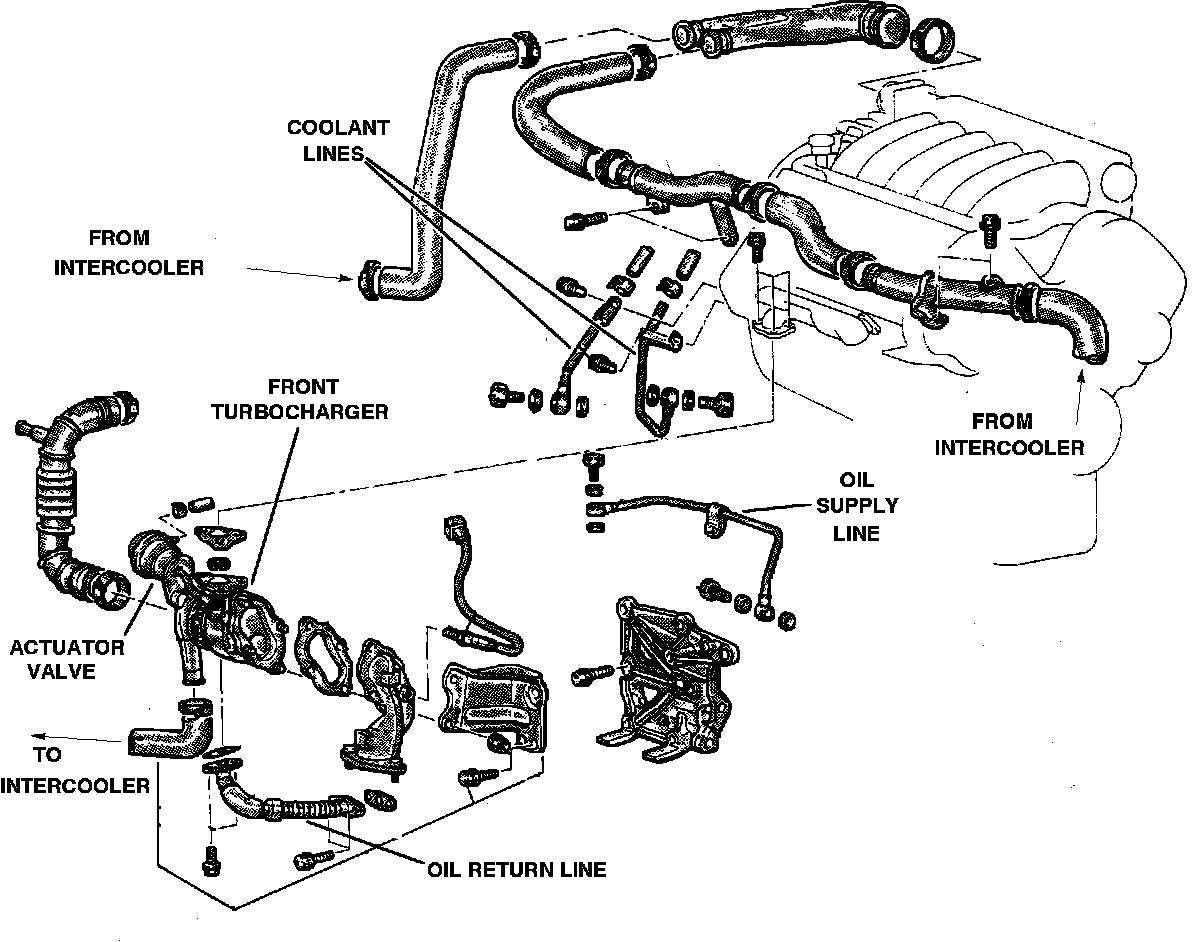

Forward Turbocharger W/ Accessories And All Piping:
FRONT TURBOCHARGER

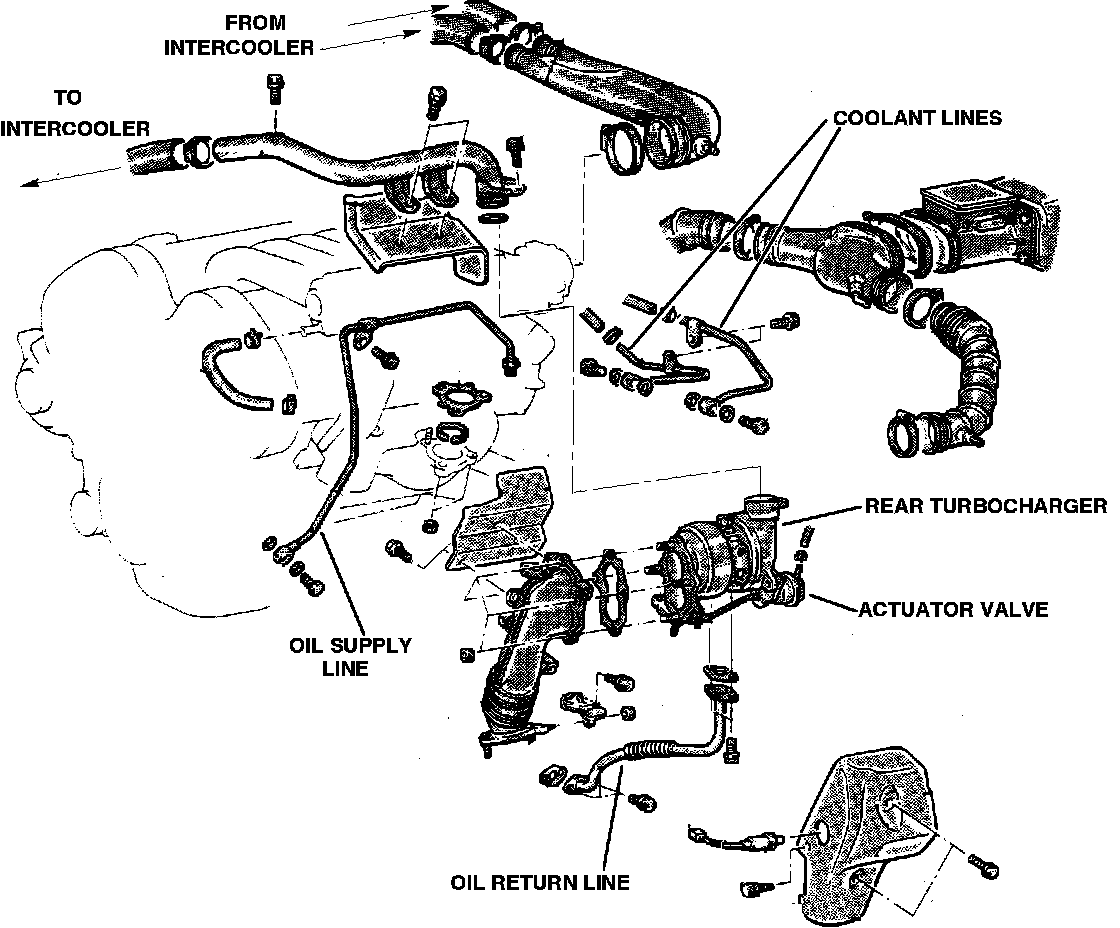

Rear Turbocharger W/ Accessories And All Piping:
REAR TURBOCHARGER
