3000GT AWD V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

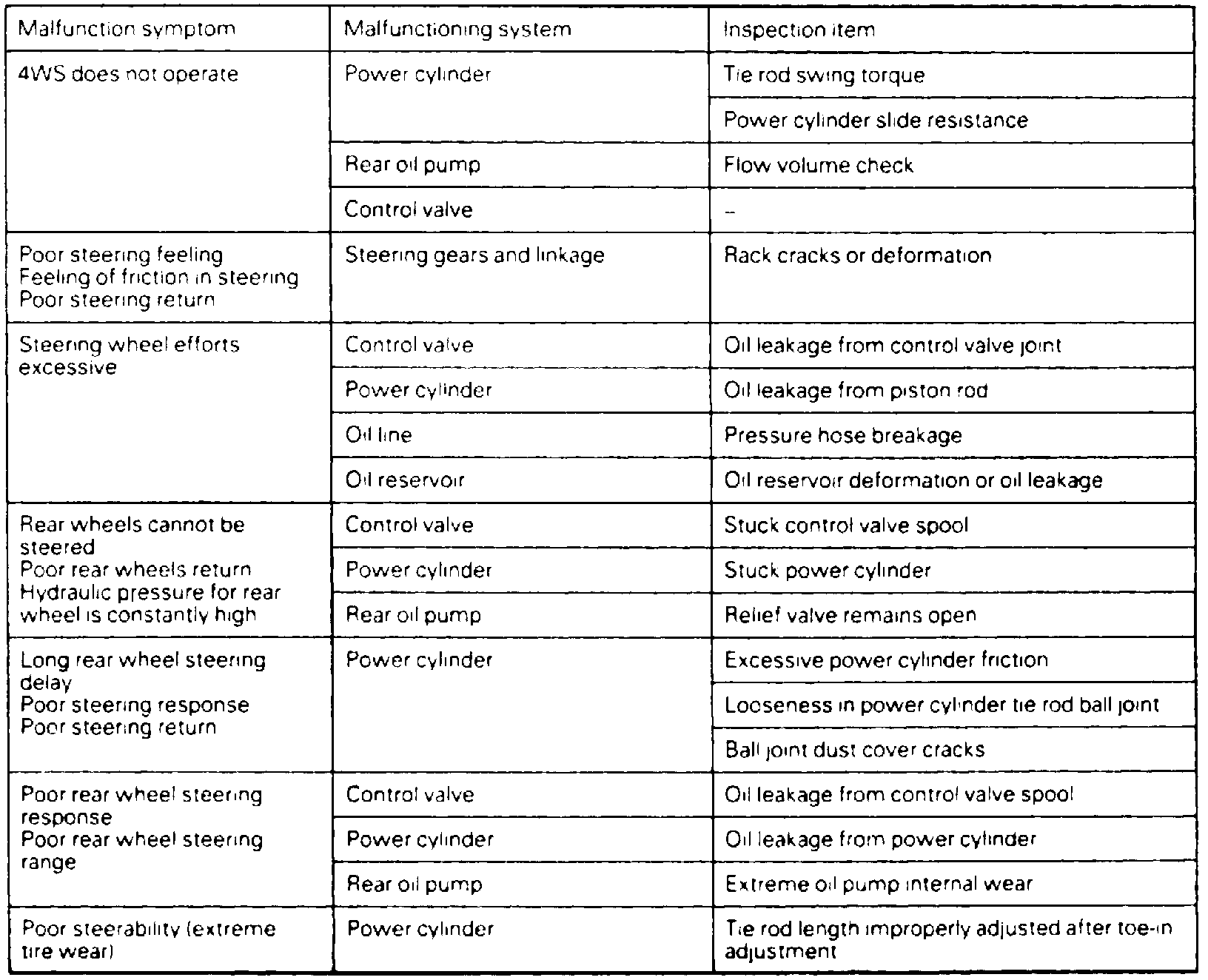

Fig. 1:
Refer to
Fig. 1
when troubleshooting the Four Wheel
Steering
(4WS) system.
