Mechanical Specifications

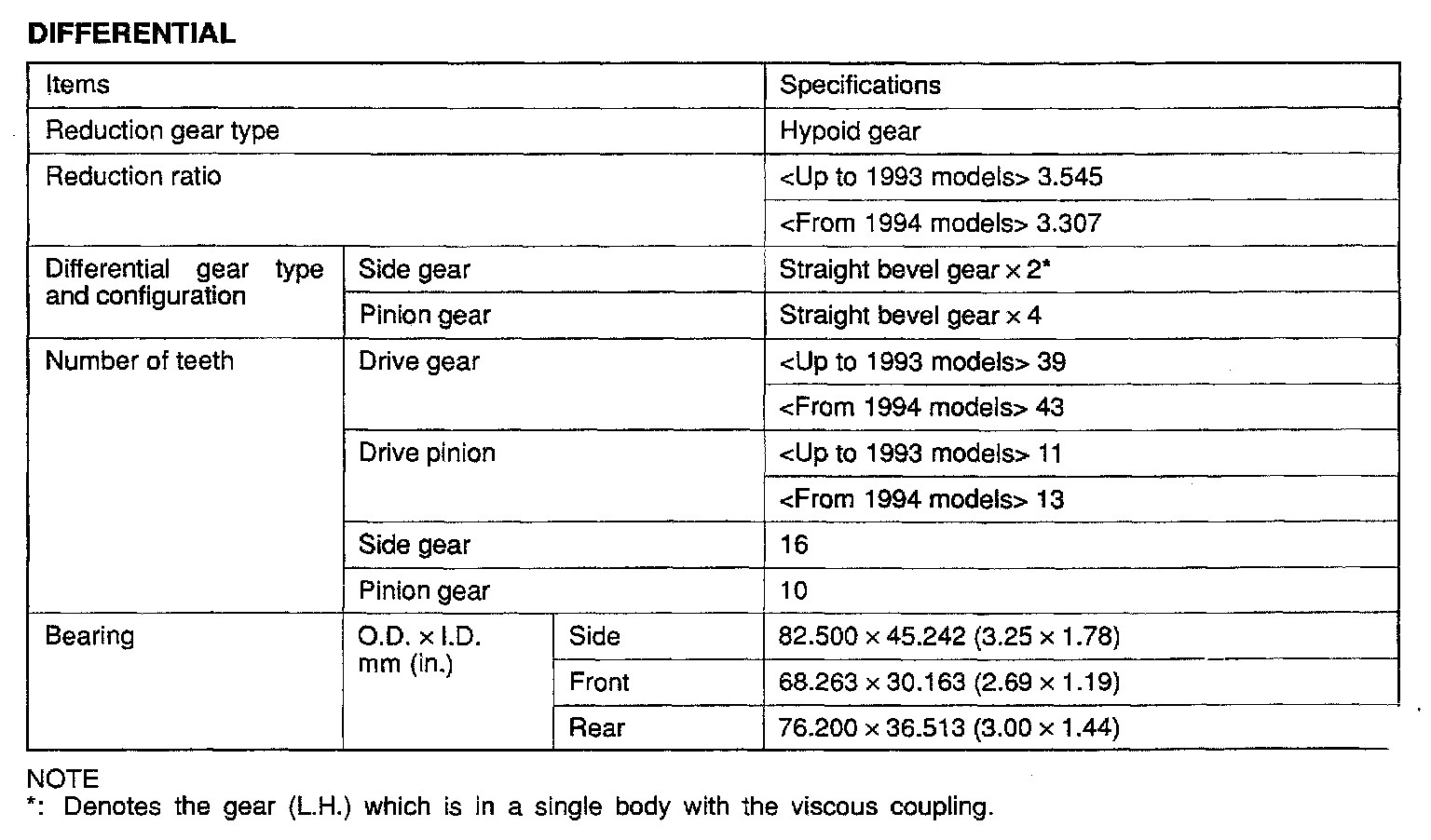

M/T/A/T, Rear Axle (AWD), Differential Dimensions:

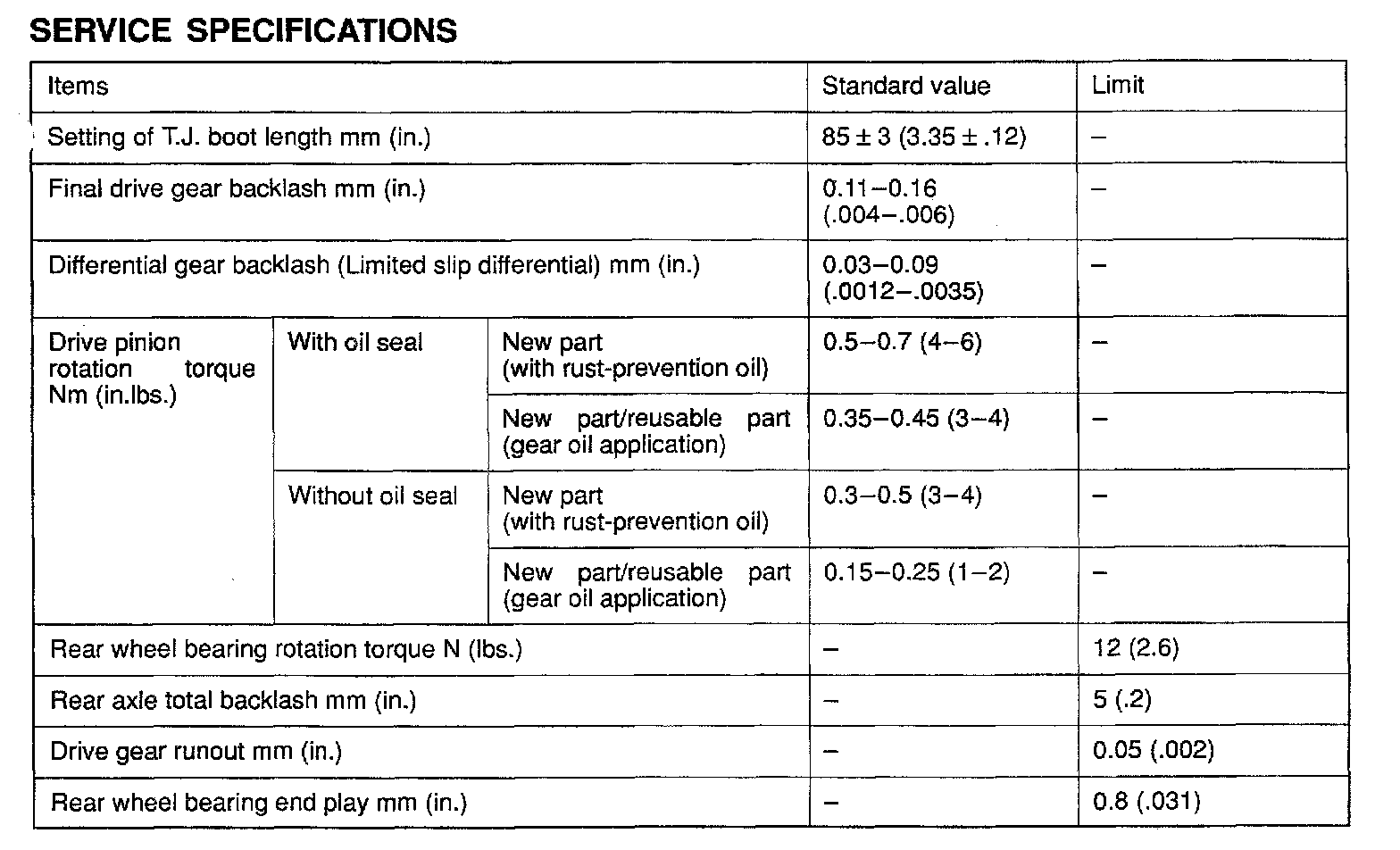

Rear Axle (AWD), Differential Standard Values & Limits:
