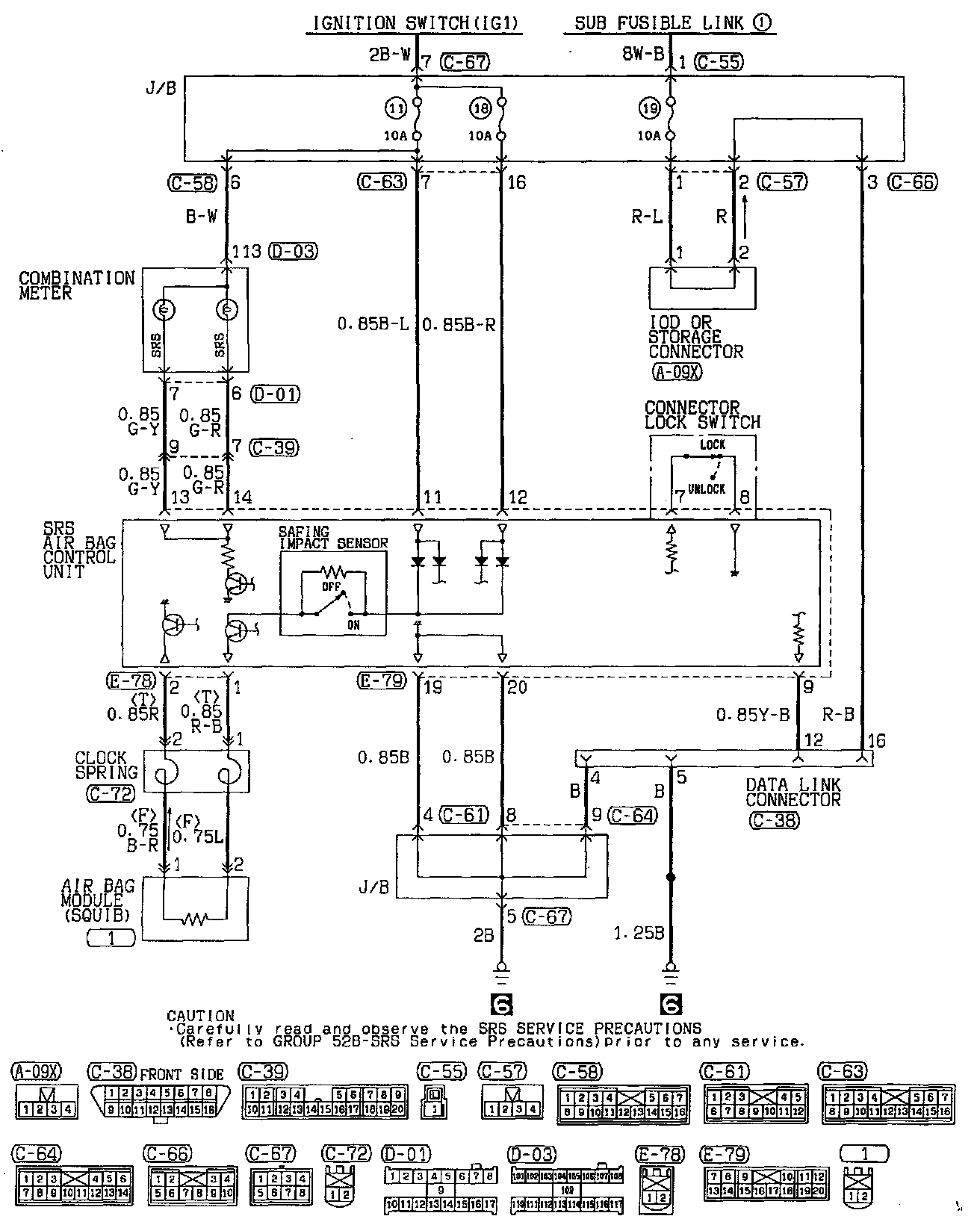

Schematics
CAUTION:
1. Do not repair, splice or modify SRS wiring. Replace wiring if necessary, after reading and following all precautions and procedures in this manual.
2. Do not use an analog ohmmeter to check SRS wiring or components; use only special tools and digital multi-meter.
