Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1994
>>
Expo AWD L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Throttle Cable/Linkage
>>
Without Cruise Control
Without Cruise Control

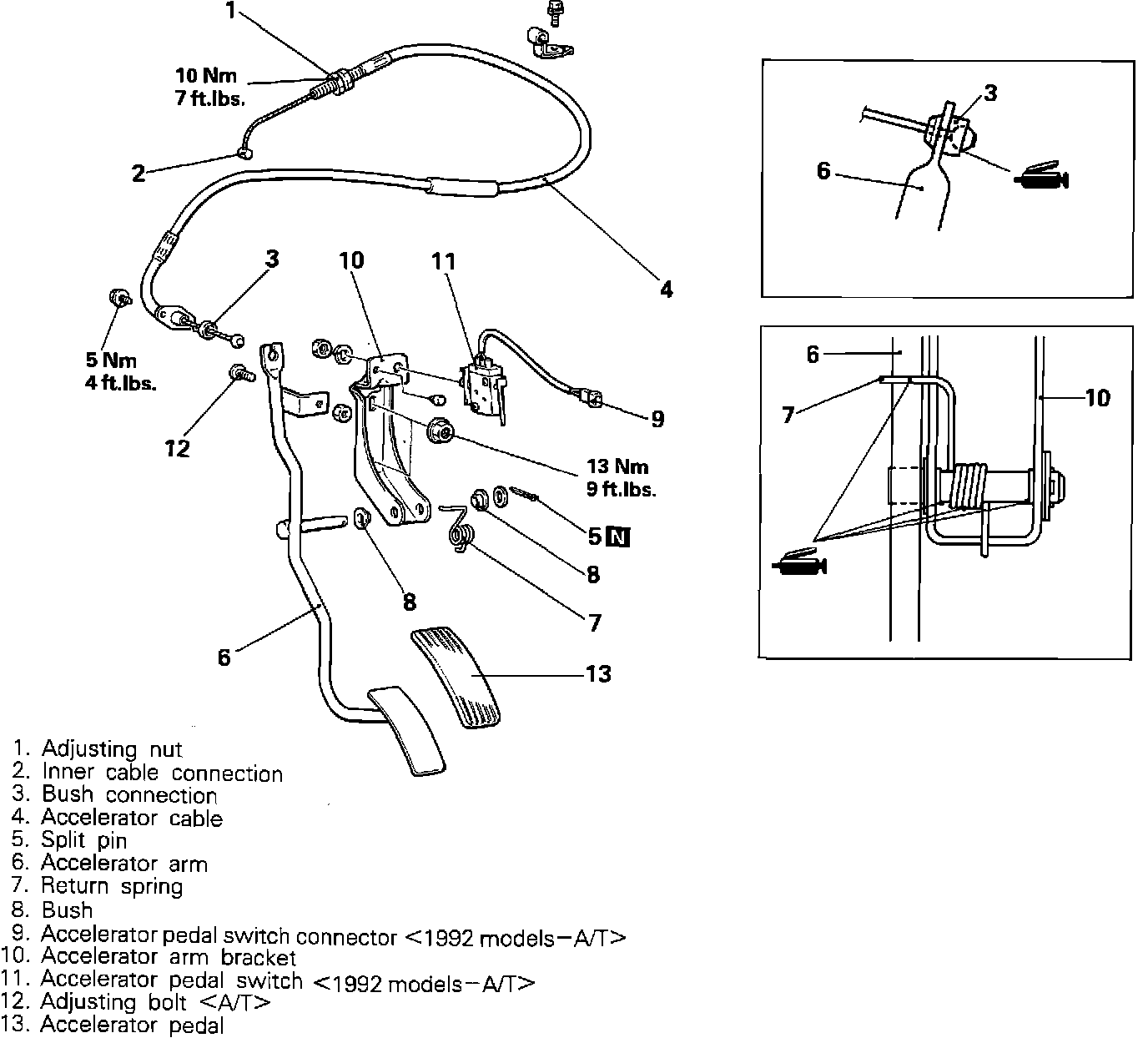

Accelerator Cable And Linkage:
