Connector Locations

CONFIGURATION DIAGRAMS

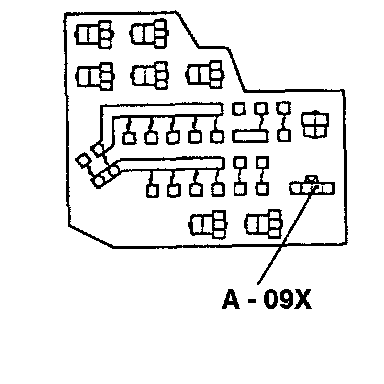

Relay Box In Engine Compartment

A - 09X IDO or storage connector

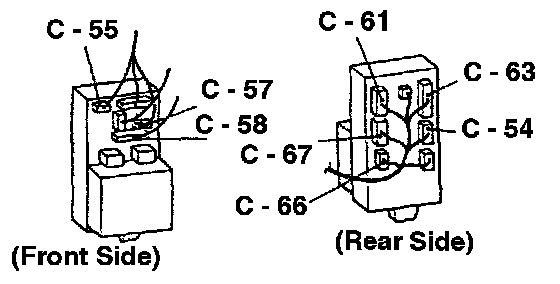

Junction Block

C - 55 Front wiring harness and junction block combination
C - 57 Front wiring harness and junction block combination
C - 58 Instrument panel wiring harness and junction block combination
C - 61 Main wiring harness and junction block combination
C - 63 Main wiring harness and junction block combination
C - 64 Main wiring harness and junction block combination
C - 66 Main wiring harness and junction block combination
C - 67 Main wiring harness and junction block combination

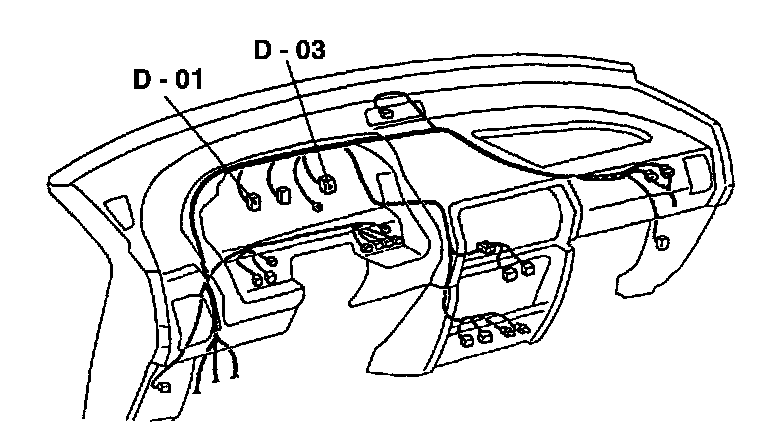

Instrument Panel

D - Ol Combination meter (for warning light)
D - 03 Combination meter (for warning light)





Interior

E - 78 SRS air bag control unit
E - 79 SRS air bag control unit
E - 82 SRS air bag control unit

Dash Panel

C - 38 Data link connector
C - 39 Main wiring harness and instrument panel wiring harness
C - 72 Clock spring
C - 75 Passenger's side air bag module (squib)
