Steering Column: Service and Repair

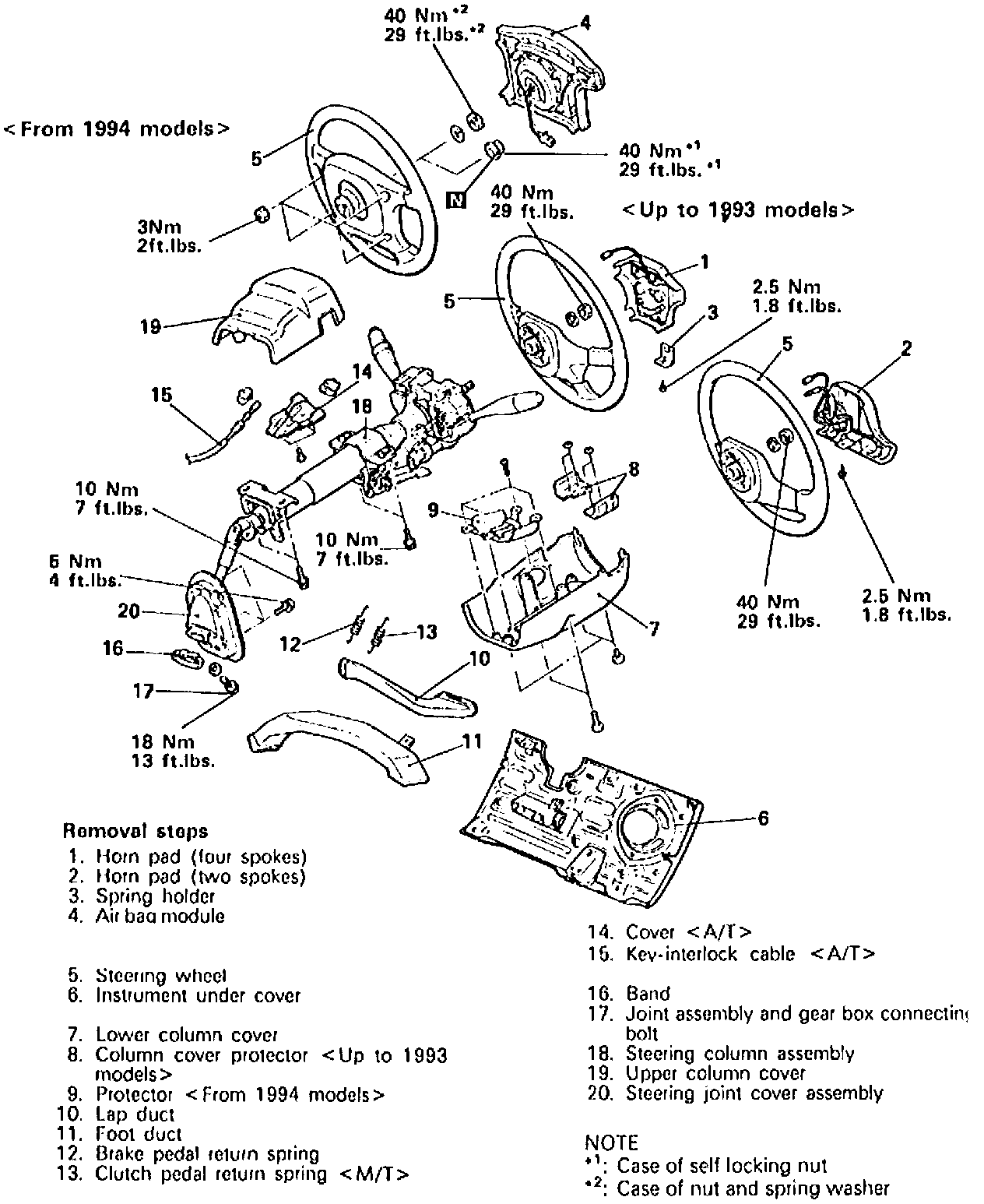

Fig. 4 Steering Column & Shaft Assembly:




Refer to Fig. 4 for steering column and steering shaft service.
