Mechanical Specifications

Rear Axle (AWD), Conventional Differential:





Rear Axle (AWD), Differential Dimensions:

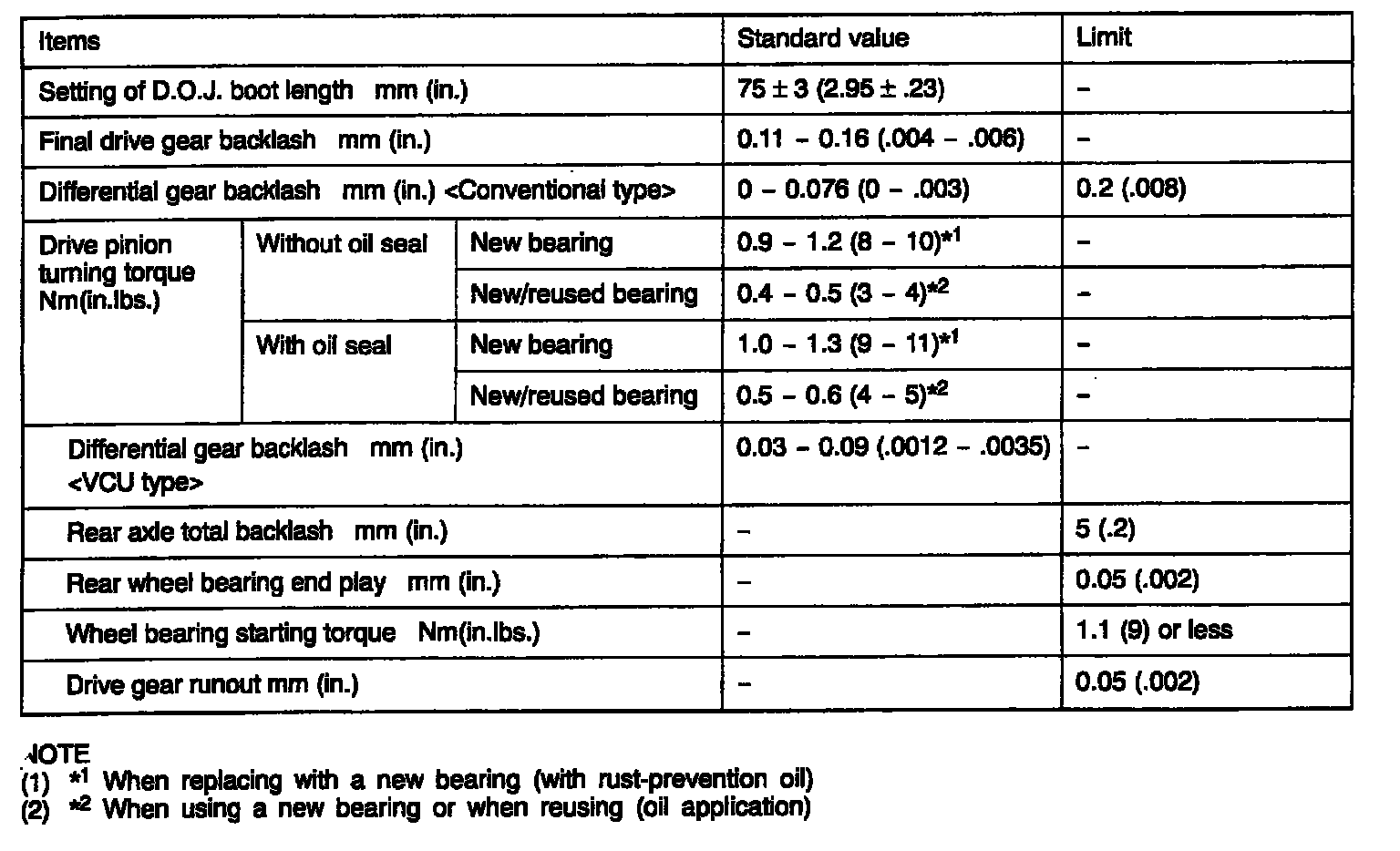

Rear Axle (AWD), Differential Standard Values & Limits:
