Items Indicated By the Malfunction Indicator Lamp

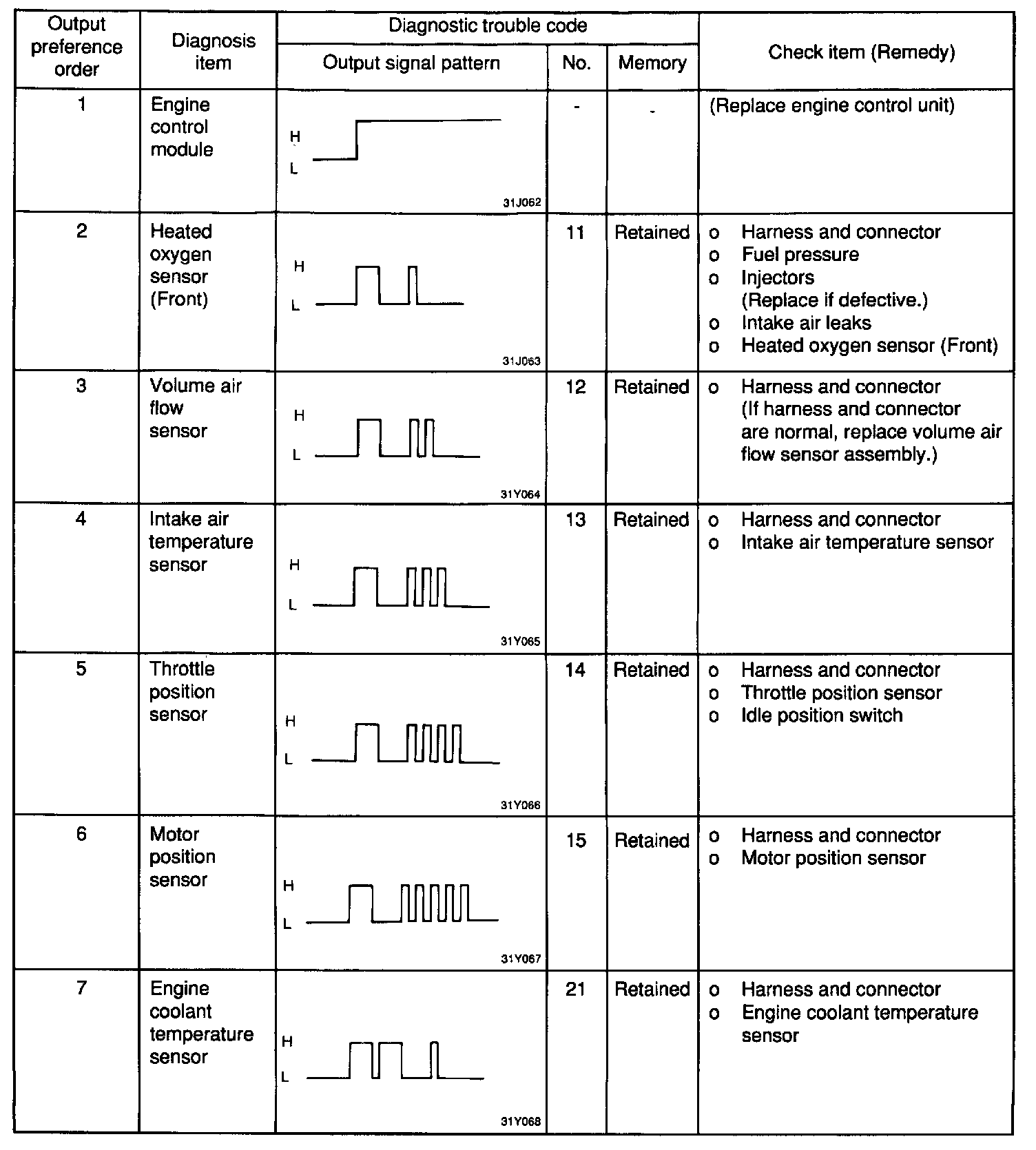

TROUBLE CODE DESCRIPTIONS

The 16 diagnosis items are provided as follows, and if plural items are activated, they are all indicated sequentially from the smallest code number.

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

NOTE: Replace the engine control module if a diagnostic trouble code is read although the inspection reveals that there are no problems with the diagnosis item
