Home >> Mitsubishi >> 1996 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo 24 Valve >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element

Heated Glass Element

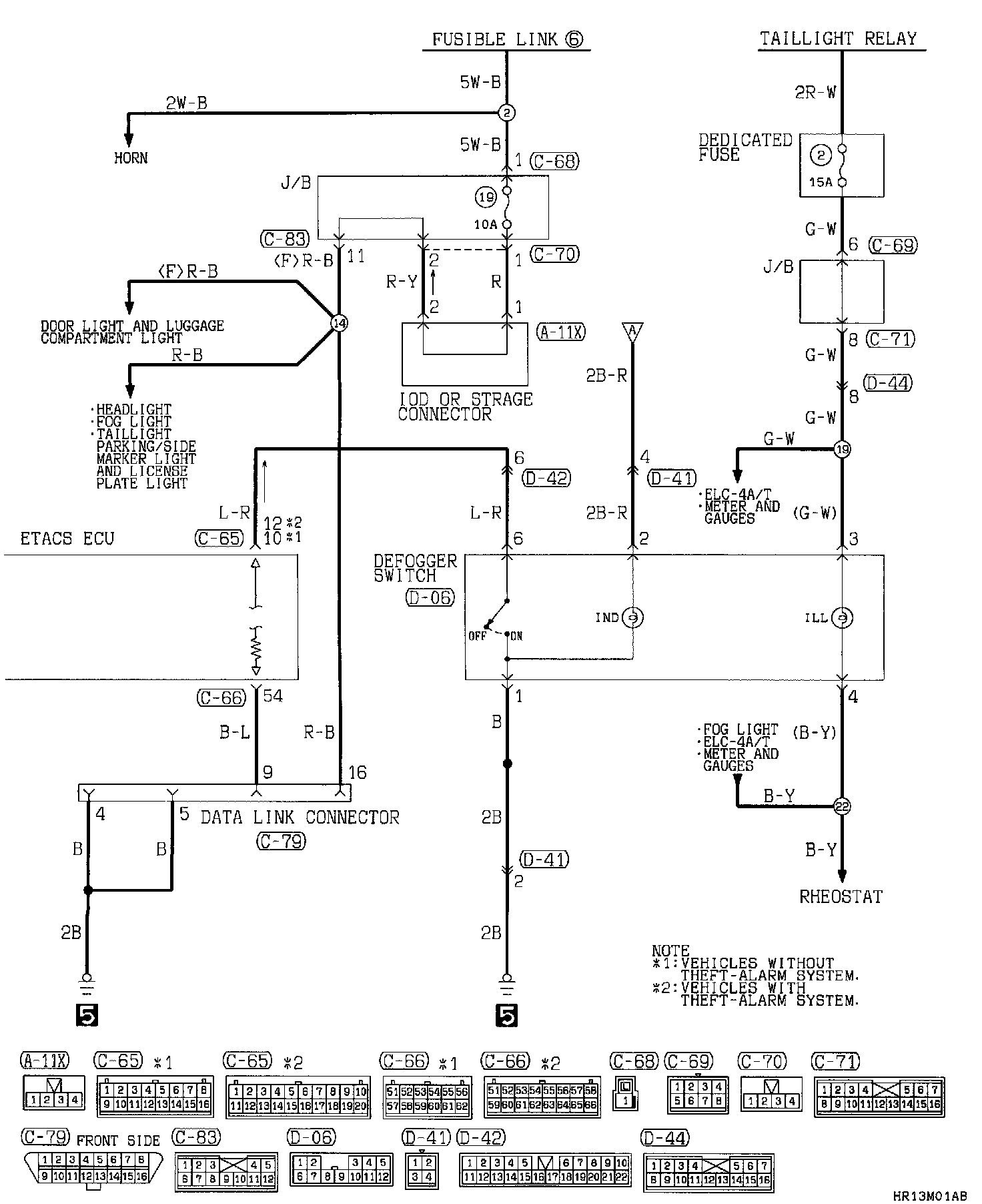

Rear Window Defogger - Part 1 Of 2 (Hatchback):

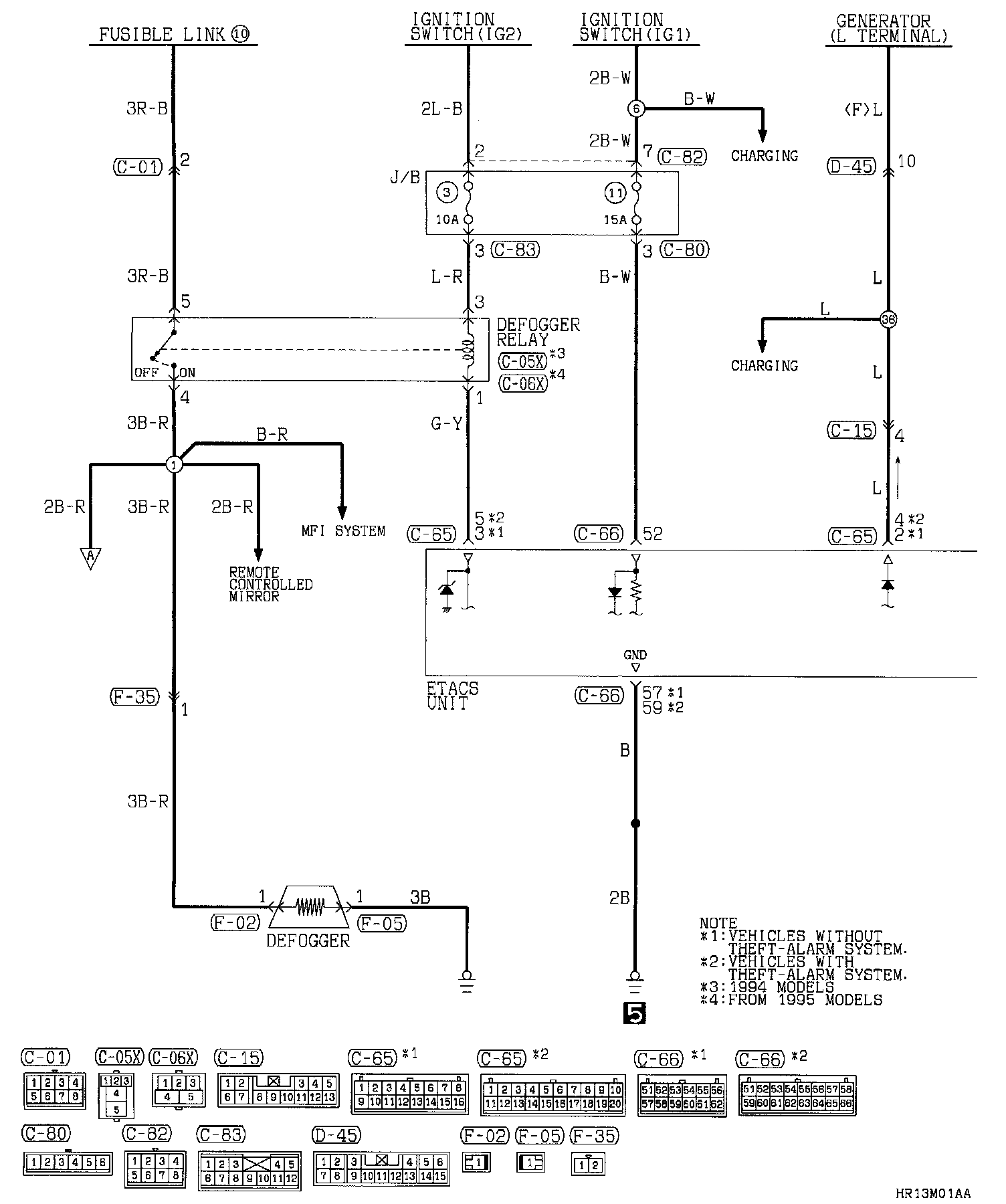

Rear Window Defogger - Part 2 Of 2 (Hatchback):
