Operation CHARM: Car repair manuals for everyone.

Home >> Mitsubishi >> 1996 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo 24 Valve >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

Tail Lamp

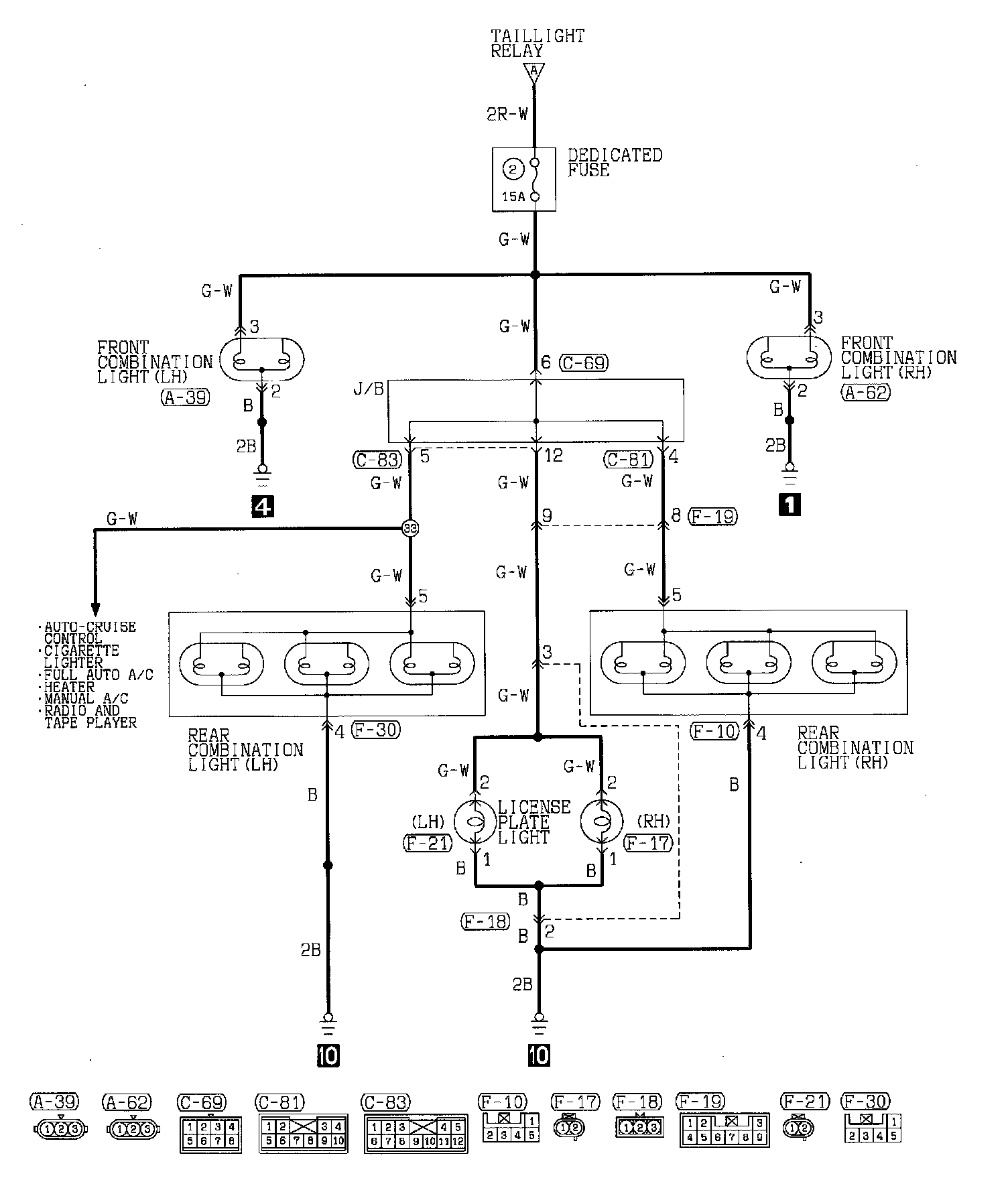

Part 1 Of 2 (Hatchback):

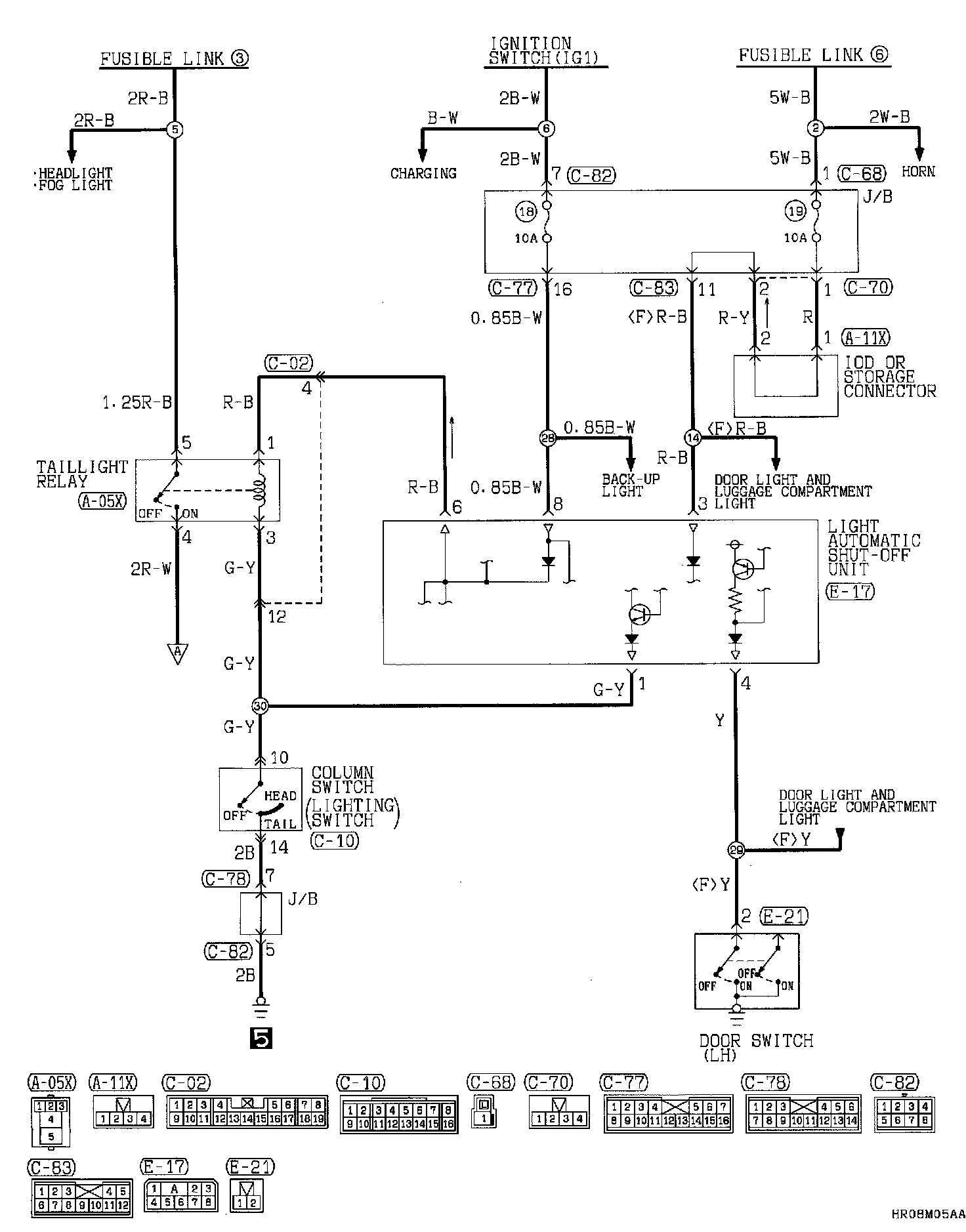

Part 2 Of 2 (Hatchback):
