Exhaust System: Service and Repair

REPLACEMENT
1. Remove the under cover. Refer to Body and Frame.

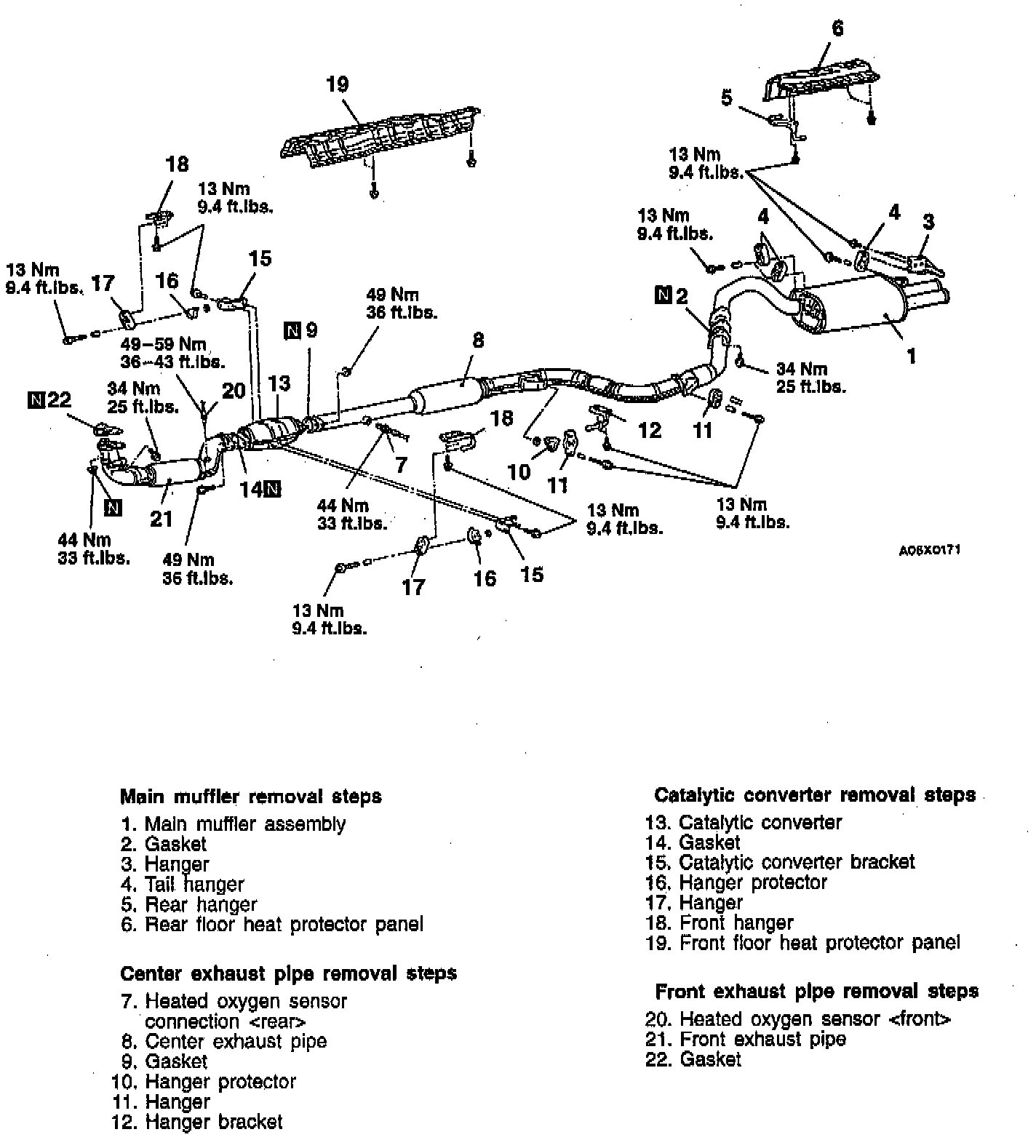

2. Refer to the illustration for the service procedures.
3. Reverse procedures to install.

NOTE: If reusing the original sensor, coat the sensor threads with an anti-seize compound such as Loctite 771-64, or equivalent. New sensors have compound on the threads and do not require an additional coating.
