A/C Installation Manual Corrections
NO.: TSB-96-55-007DATE: July, 1996
MODEL: 1996 Eclipse Spyder
SUBJECT:
A/C INSTALLATION MANUAL CORRECTIONS
PURPOSE
The air conditioning installation manual for affected vehicles contains some errors in the procedures. The chart in this bulletin describes corrections for the manual. Place a copy of the chart in the installation manual for future reference.
AFFECTED VEHICLES
1996 Eclipse Spyder equipped with 2.4L engine
AFFECTED MANUAL
Air Conditioning Installation Instructions for 1996 Eclipse Spyder 2.4L, publication no. MSSP-143F-96 (A/C kit part number AEC6AK5X24)

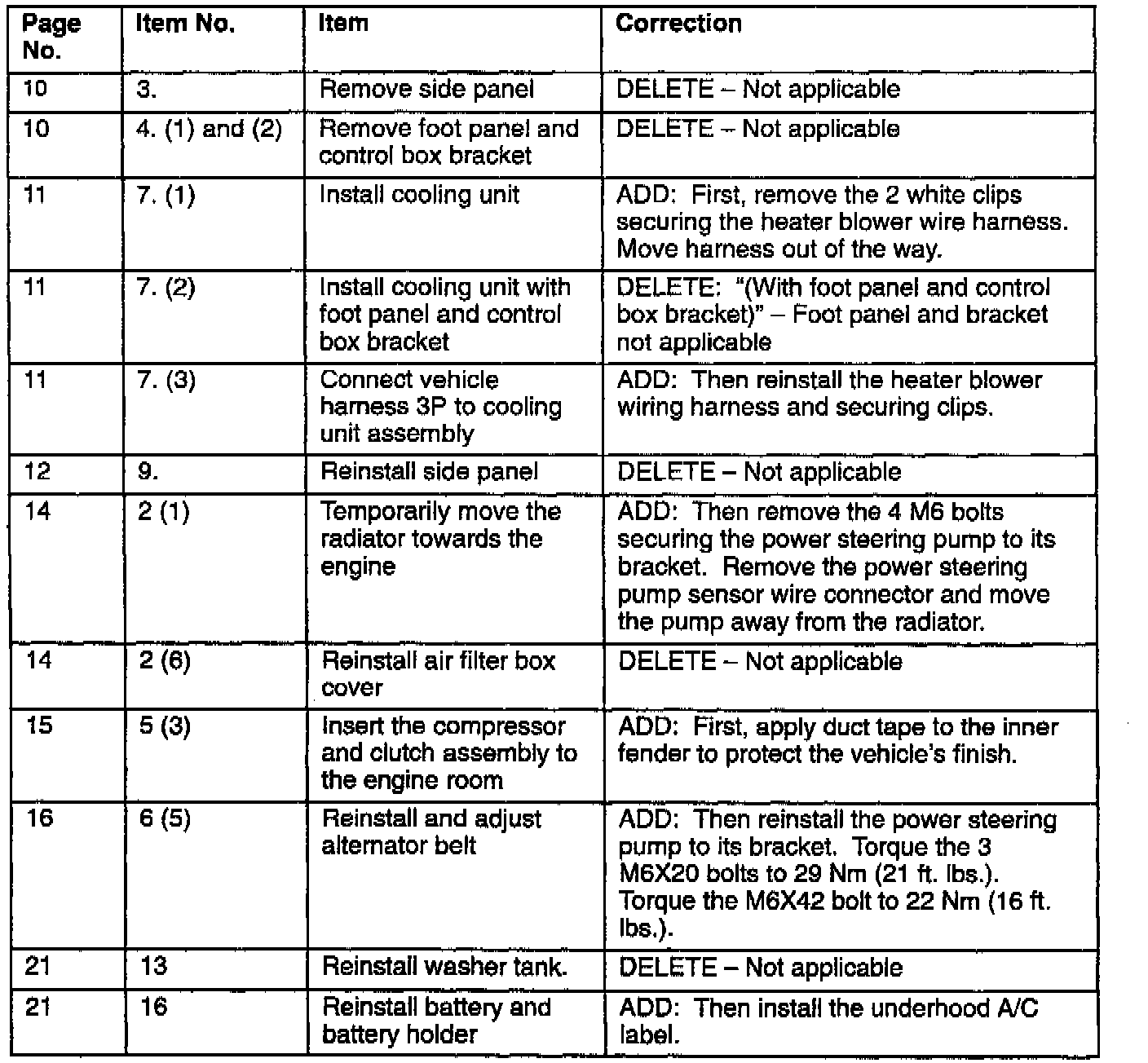

The chart lists corrections to the 1996 Eclipse 2.4L A/C installation manual publication no. MSSP-143F-96 (A/C kit part number AEC6AK5X24):
