Headliner - Sags: Overview
NO.: TSB-96-52A-004DATE: September, 1996
MODEL: 1996 Eclipse Spyder
SUBJECT:
SAGGING HEADLINER
PURPOSE
This bulletin contains information on how to correct headliner sagging on the 1996 Eclipse Spyder Convertible.
AFFECTED VEHICLES
1996 Eclipse Spyder Convertible produced before March 9, 1996

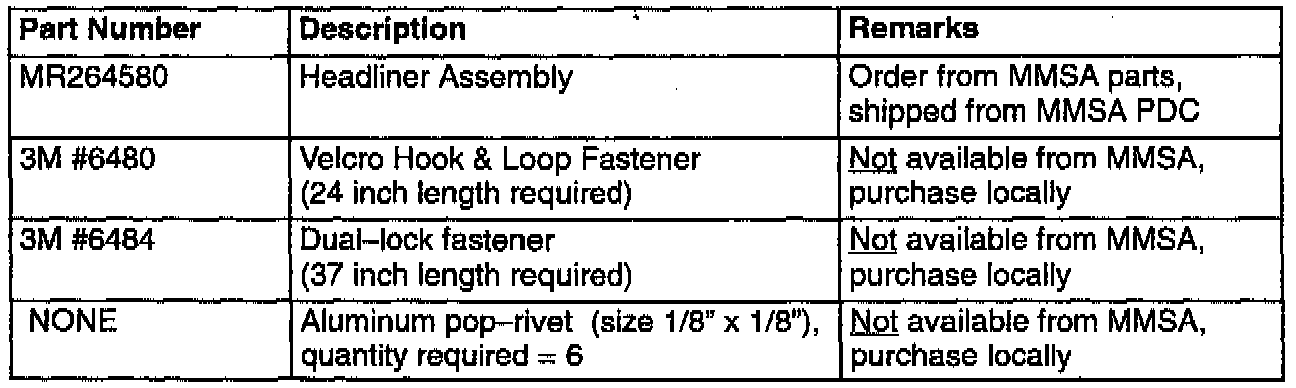

PARTS INFORMATION
If you encounter a sagging old style headliner (one that attaches to the rear of the top cover) remove it and replace it with the part number listed. The new headliner attaches to the top of the rear window as shown in the instructions in this bulletin.
WARRANTY INFORMATION
Headliner Installation (Includes hook/loop fastener replacement)
Nature Code: 86Z Cause Code: 440
Labor Operation Number: 52410110 Time Allowance: 1.0 hrs
Headliner Repair # 1 Bow Dual lock Fastener Replacement
Nature Code: 86Z Cause Code: 440
Labor Operation Number: 42386000 Time Allowance: 1.0 hrs
Warranty Coverage: 36 months/36,000 miles
Special Warranty Information:
Headliner replacement and/or # 1 bow fastener repair on an as needed basis only
