MFI - Troubleshooting Charts Revision

NO.: TSB-96-13-013

DATE: July, 1996

MODEL: 1996 Eclipse

SUBJECT:
ECLIPSE MFI TROUBLESHOOTING CHARTS - SERVICE MANUAL REVISION

TSB Revision: TSB 96-13-013

PURPOSE

The Multiport Fuel Injection (MFI) diagnostic procedures in this bulletin update those shown in the 1996 edition of the Eclipse Service Manual, Volume 1.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED SERVICE MANUAL PAGES

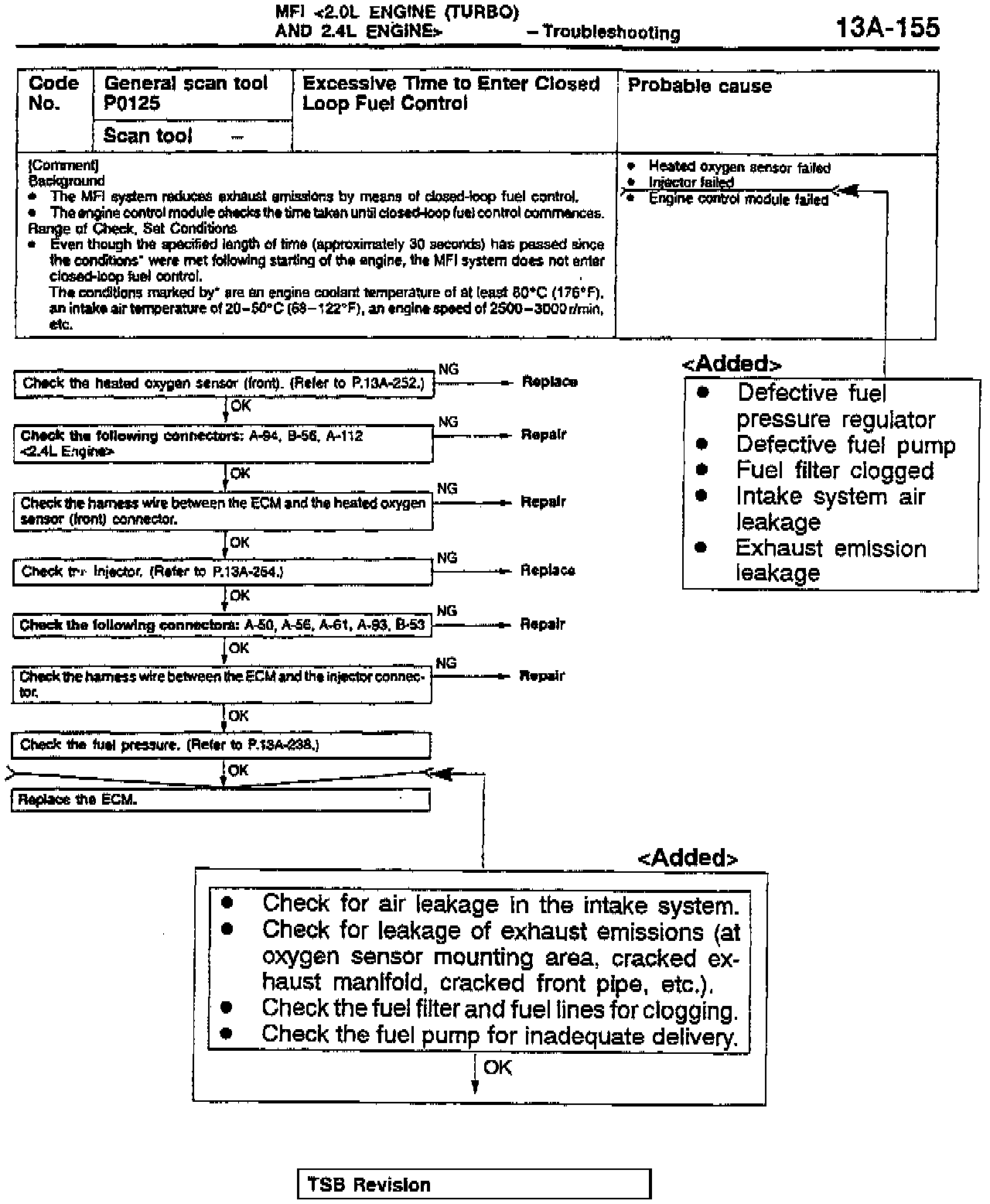

1996 Eclipse, Volume 1, pages 13A-12, 13A-13, 13A-111, 13A-113 through -115, 13A-155, 13A-159, 13A-161, 13A-162, 13A-165 through -167

SERVICE MANUAL REVISIONS

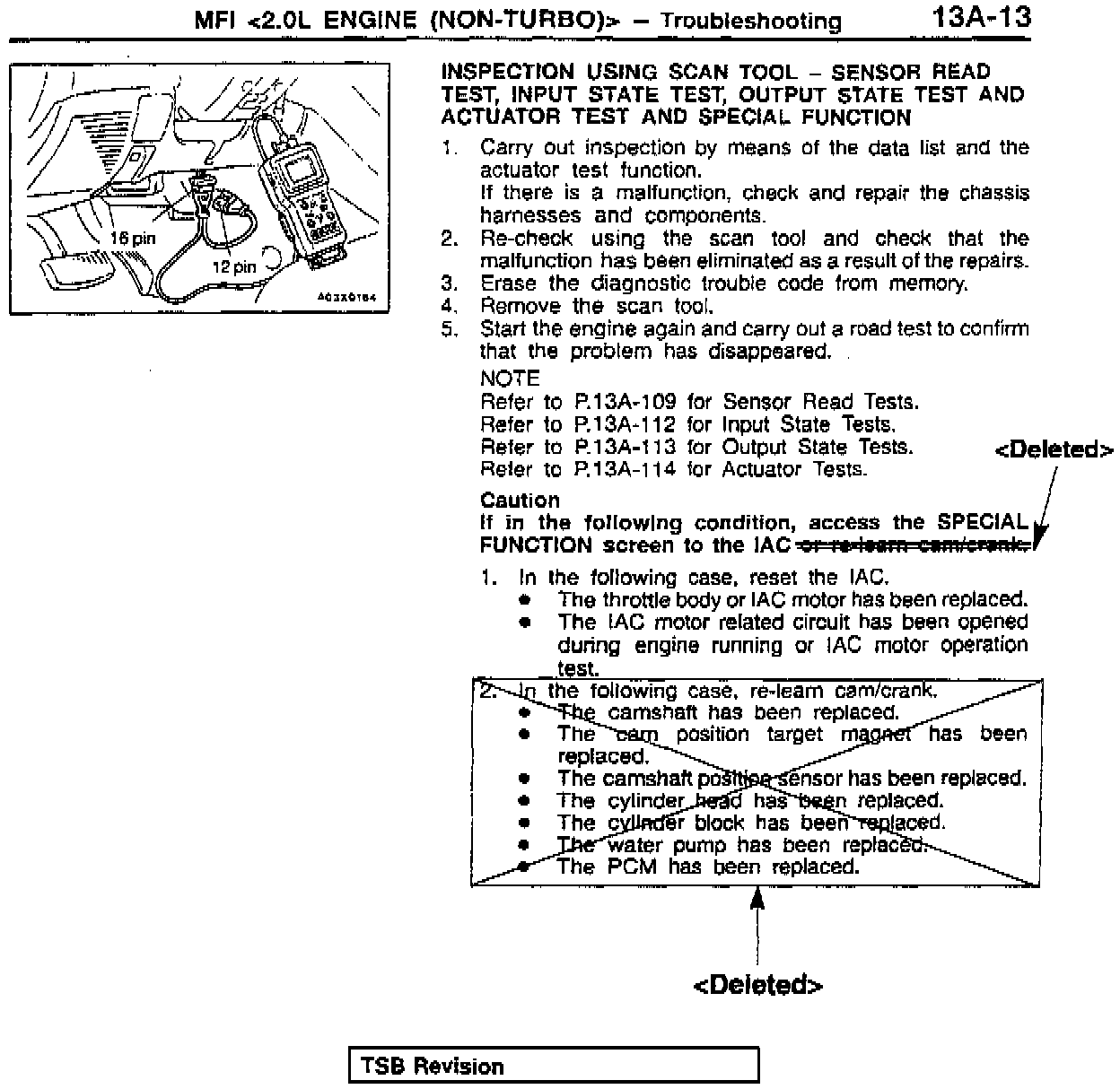

1. In all MFI troubleshooting charts, change "Scan Tool DRB-III" to "MUT-II scan tool" for reading diagnostic trouble codes (DTCs).

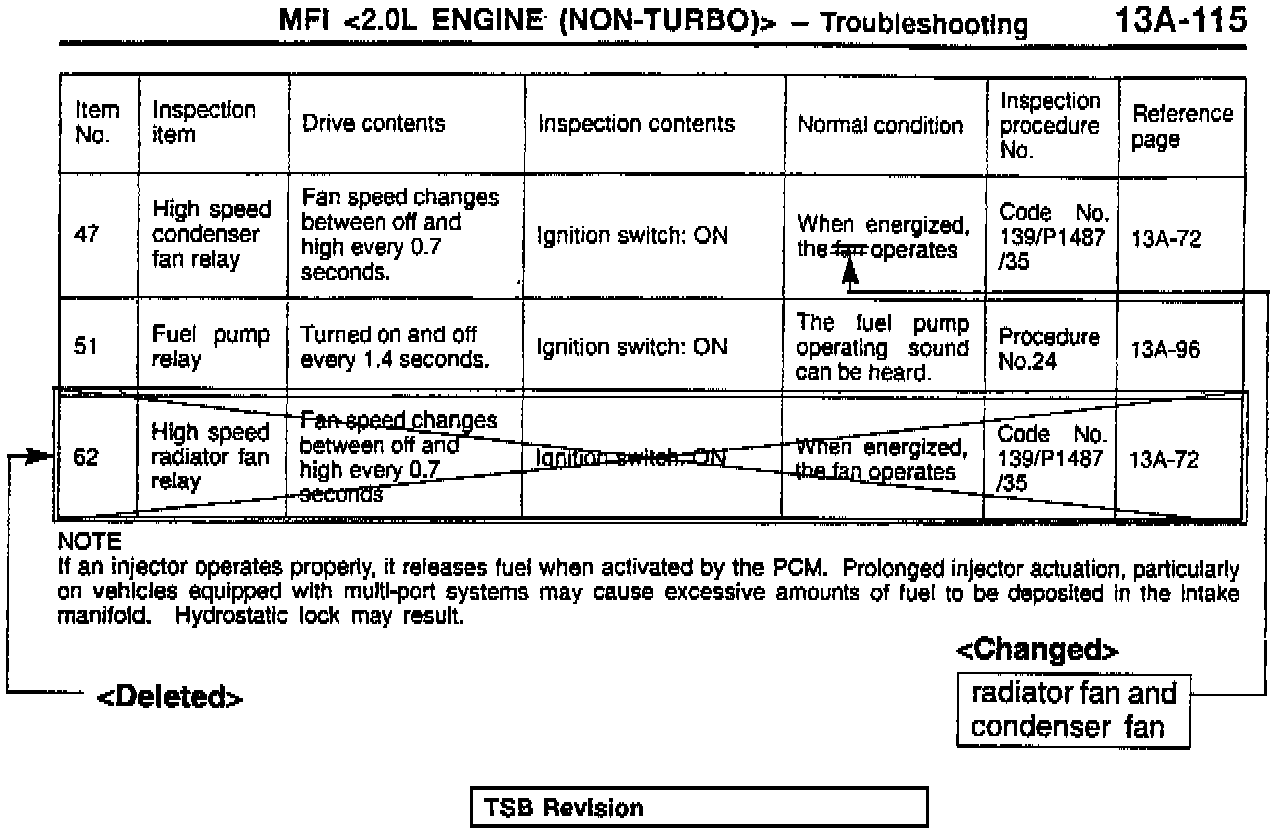

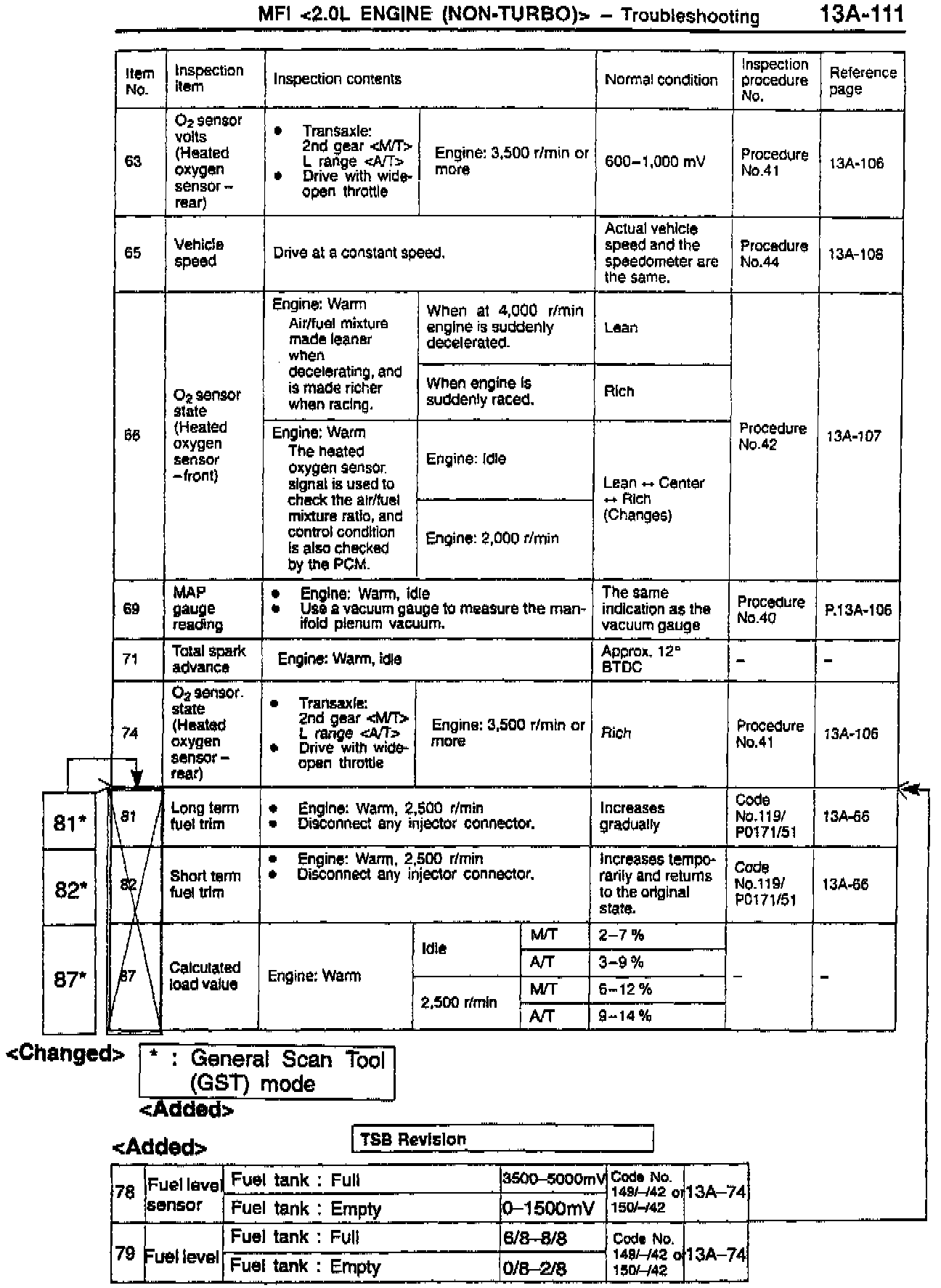

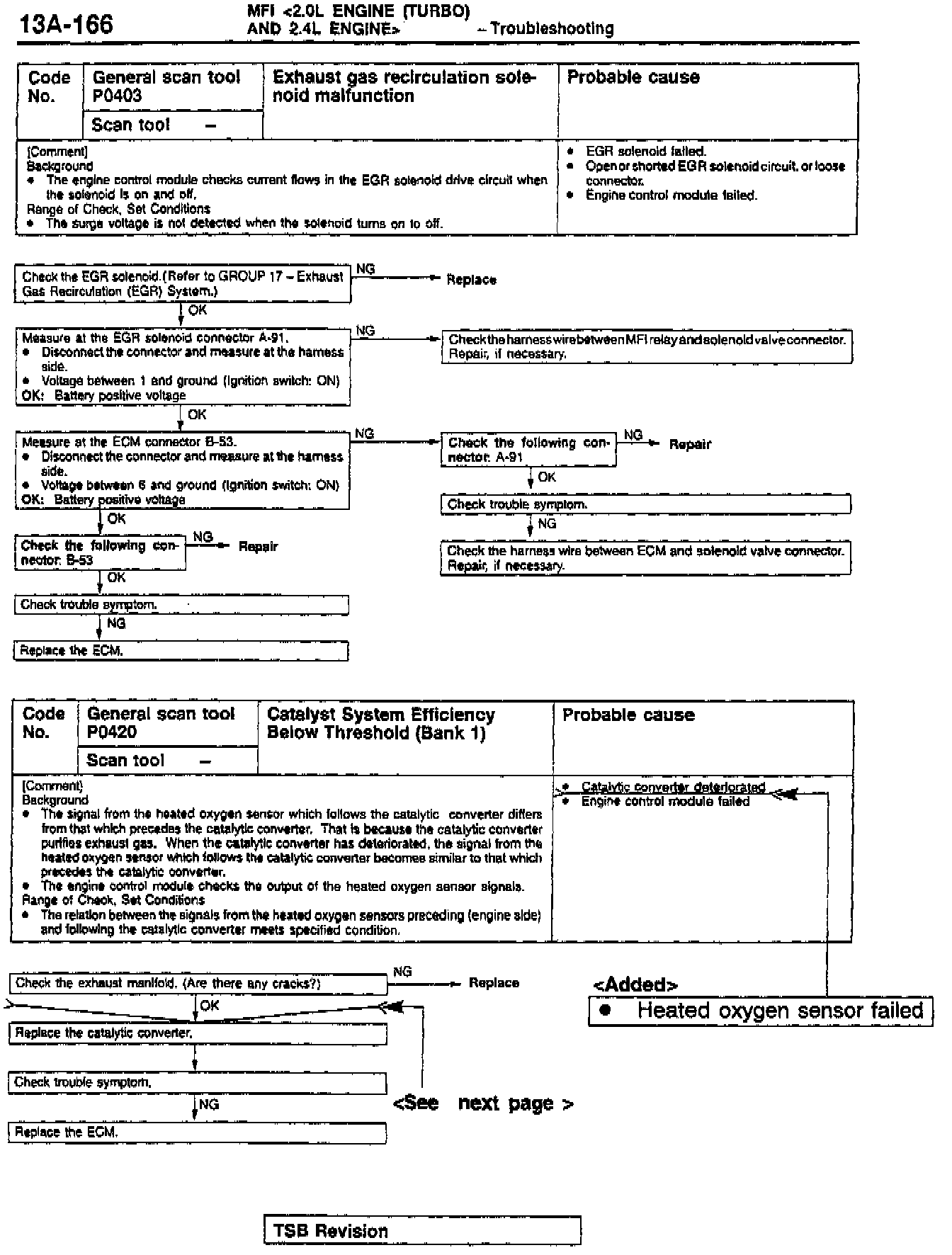

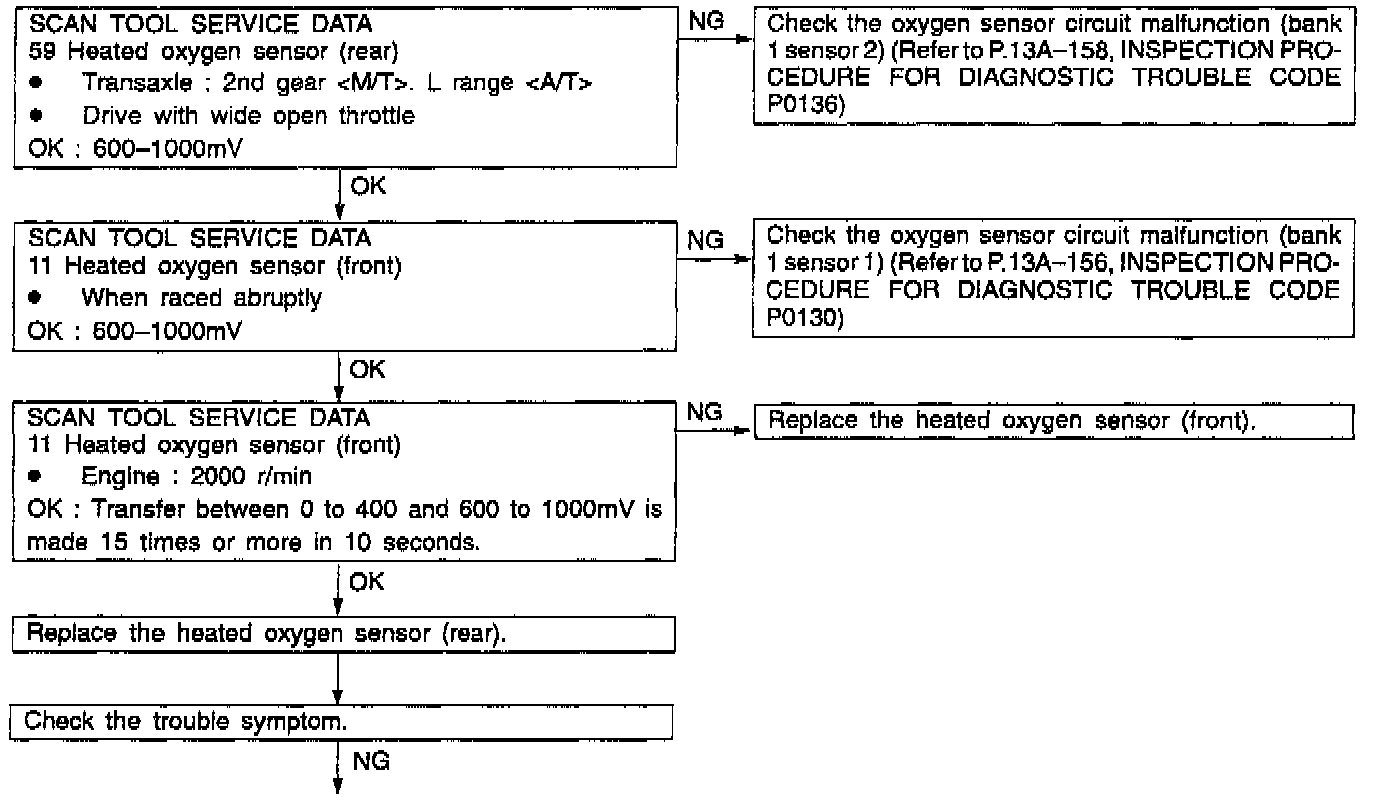

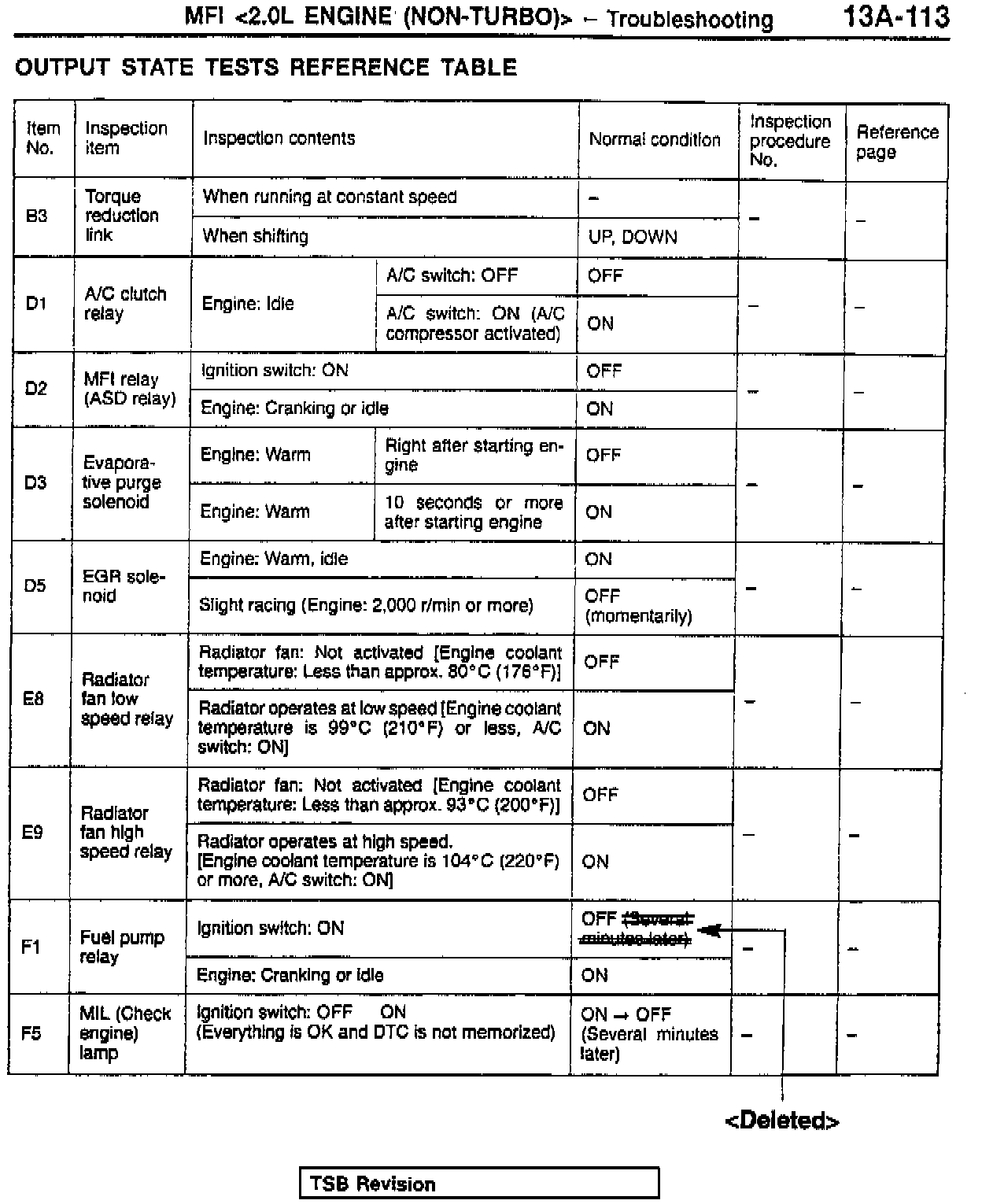

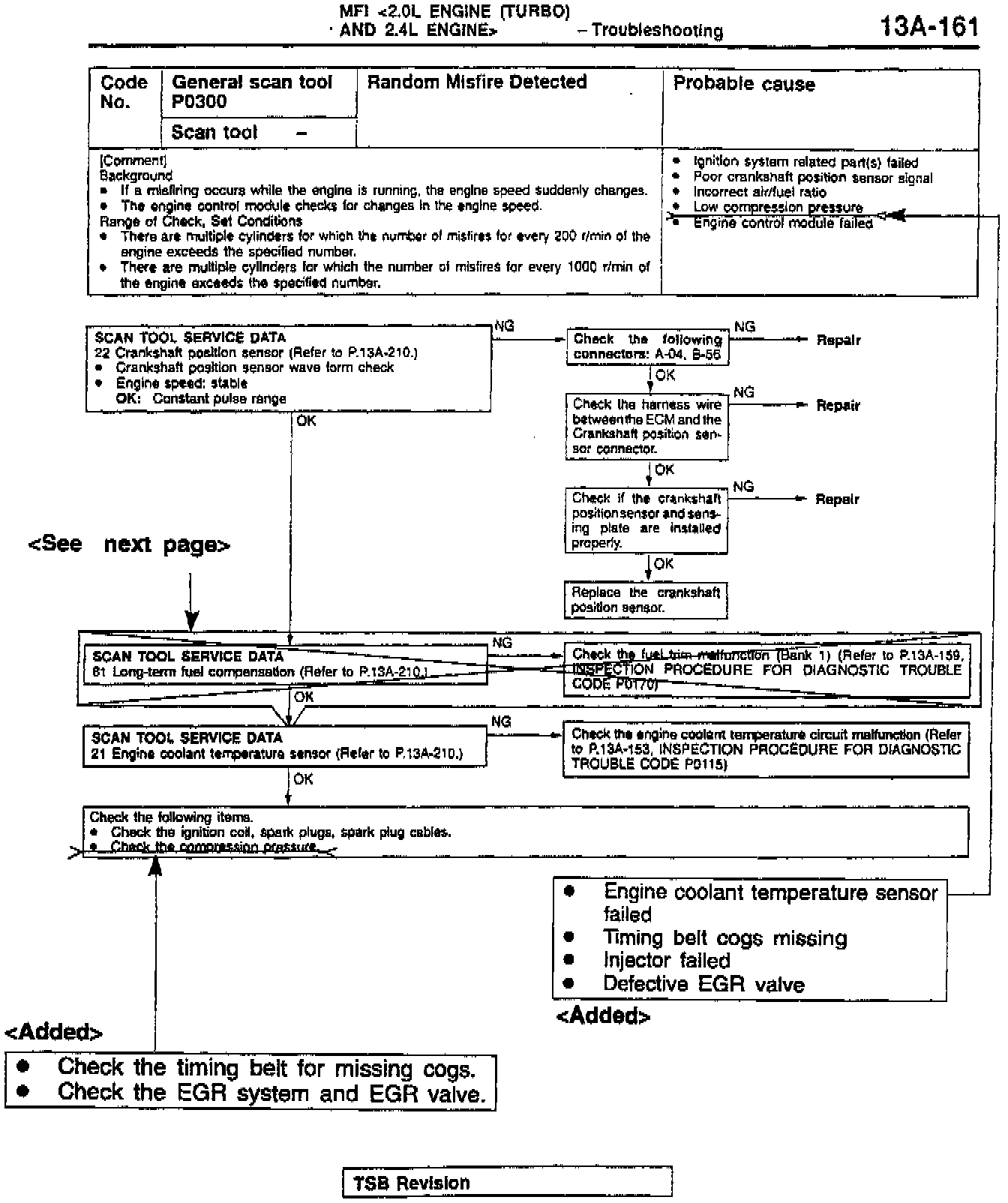

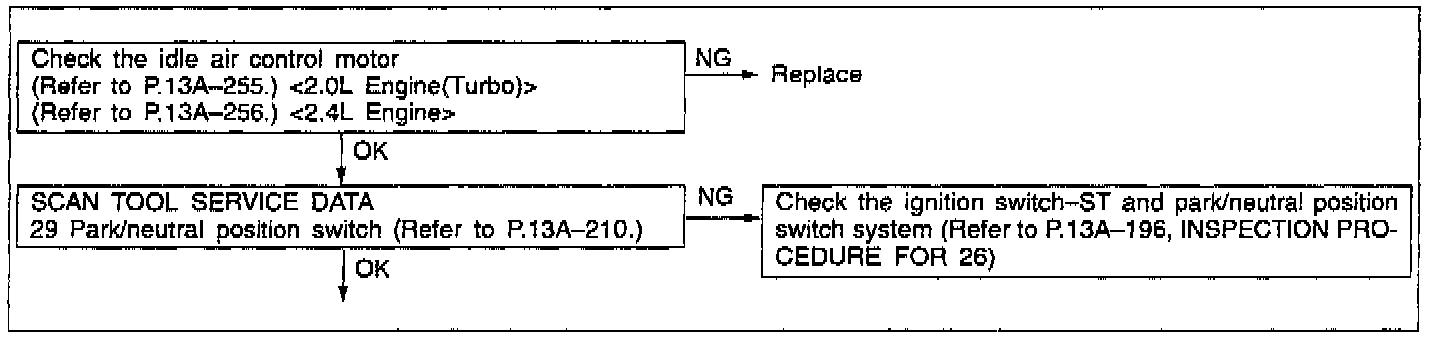

2. Add the new information for the affected MFI troubleshooting charts as shown.
