New Model - Service Manual Revision
NO.: TSB-96-00-008DATE: July, 1996
MODEL: 1996 Eclipse
SUBJECT:
ECLIPSE MID-YEAR 1996 MODELS - SERVICE MANUAL REVISION
TSB Revision TSB-96-00-008
PURPOSE
This bulletin updates the Vehicle Identification and General Specifications sections of the Eclipse service manual to include newly-added Base models to the 1996 Eclipse model lineup. (Spyder models are covered in the 1996 Eclipse Spyder Service, Body Repair, and Technical Information Manual, Volume 3.)
Write the TSB revision number in the "TSB Revision Box" at the bottom of each affected service manual page.
AFFECTED MODELS
1996 Eclipse Base.
AFFECTED SERVICE MANUAL
1996 Eclipse, Vol. 1, Pages 00-13, 00-14, 00-26

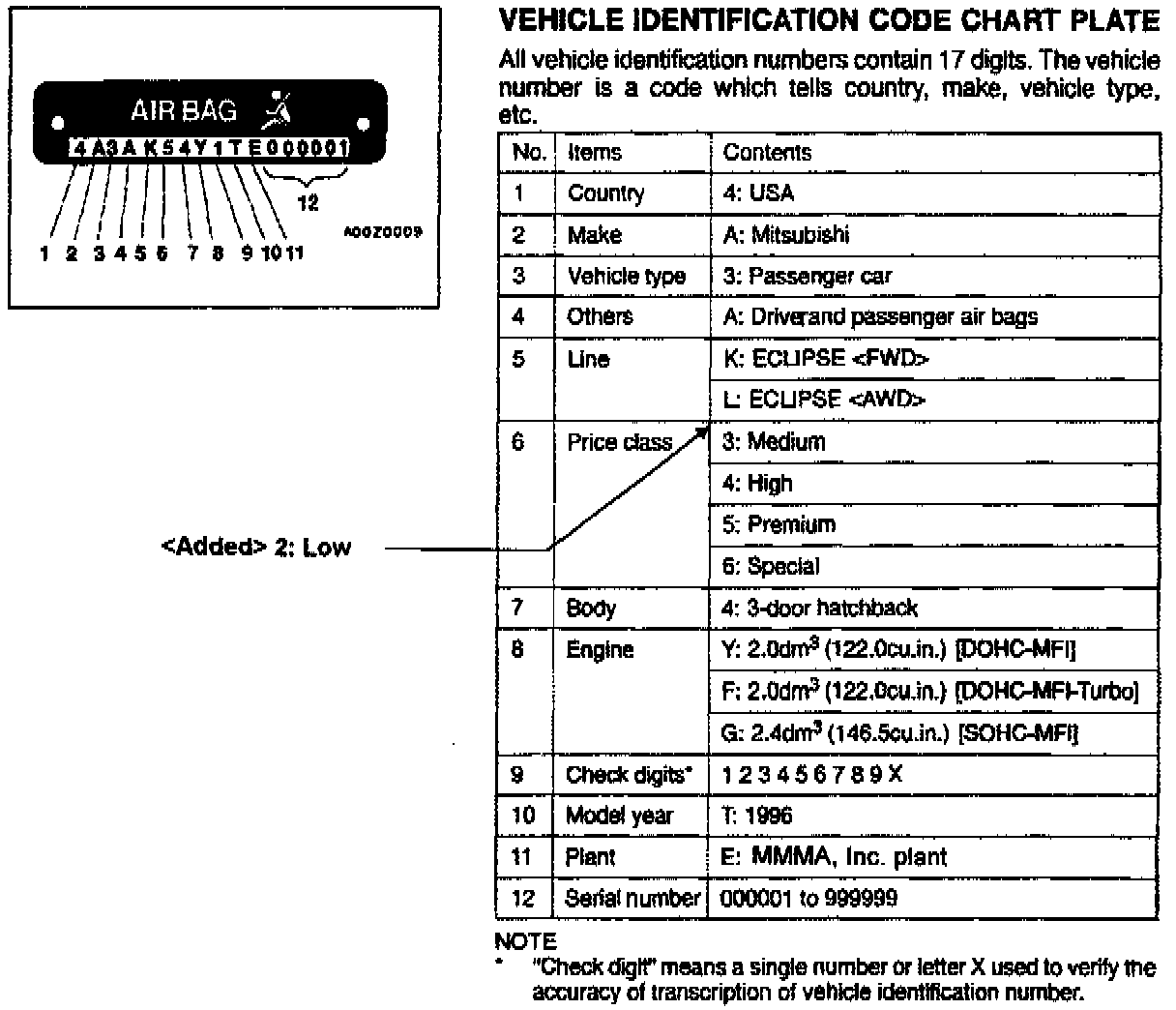

1996 Eclipse Service Manual, Vol. 1, Page 00-13
Add the "2" price class to the Vehicle Identification Code Chart Plate.
1996 Eclipse Service Manual, Vol. 1, Page 00-14
Add the base model codes to the Vehicle Identification Number List and Vehicle Information Code Plate.
1996 Eclipse Service Manual, Vol. 1, Page 00-26 Add curb weights and gross vehicle weights for the base model.
