Anti-Lock Braking System (ABS)

Determine the faulty component or system indicated by the displayed Diagnostic Trouble Codes and inspect according.

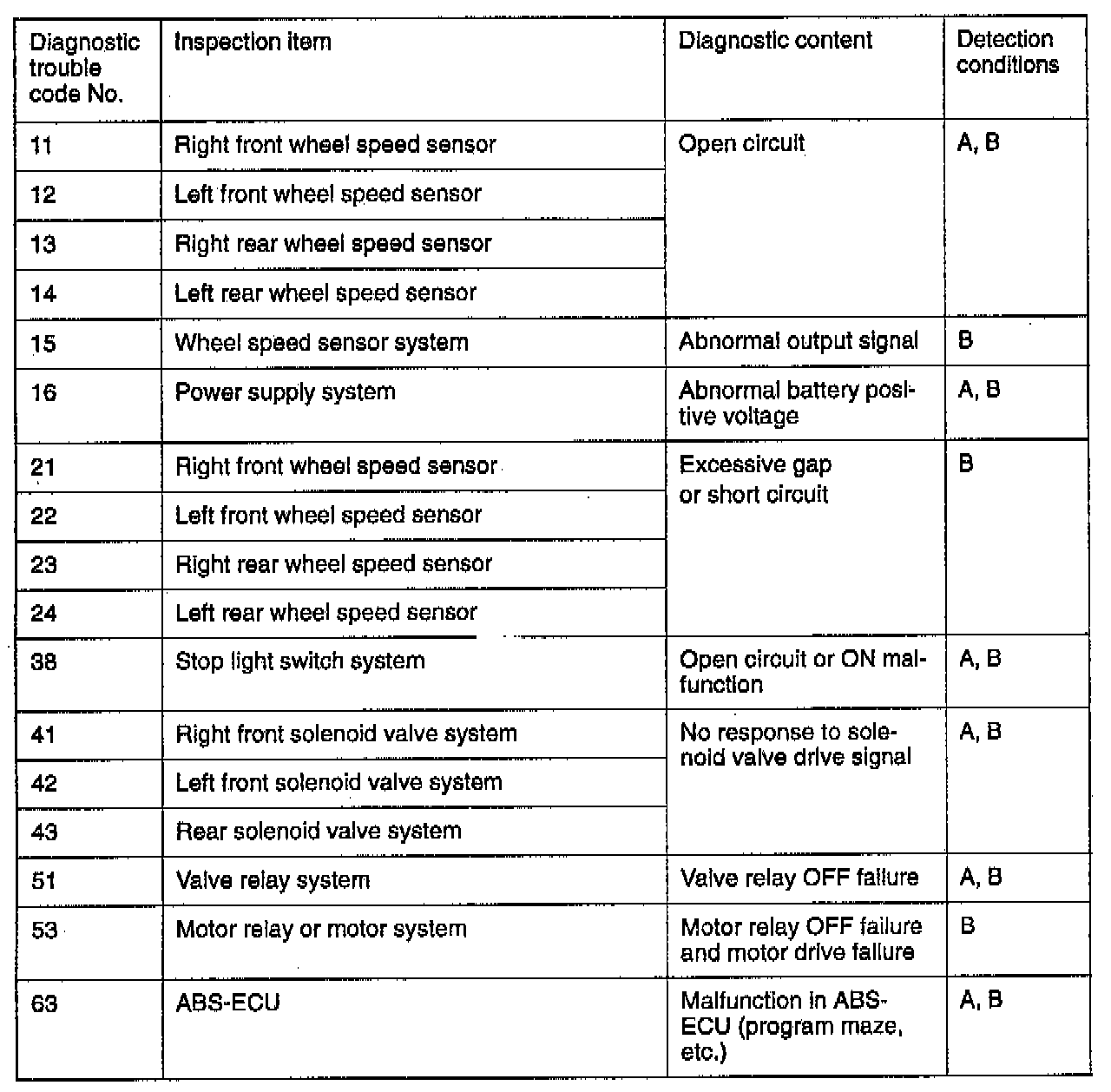

Inspection Chart For Diagnostic Trouble Codes:






Detection conditions:
A: During system check immediately after starting.
B: When driving.
