Engine Cooling & A/C Diagram - Revision
NO.: TSB-97-54-001Date: January, 1997
Model: 1996-97 Eclipse 2.0L non-turbo
Subject:
COOLING AND A/C SYSTEM CIRCUIT DIAGRAM
CORRECTIONS (DELETED FAN MOTOR RELAY [HI])
- SERVICE MANUAL REVISION
[TSB Revision TSB-97-54-001]
PURPOSE
This bulletin contains corrections to circuit diagrams for the cooling and air conditioner system on 1996 and 1997 Eclipse vehicles equipped with the 2.0L non turbo engine and manual transaxle.
The original service manual circuit diagrams show a radiator fan motor relay (HI). The new circuit diagrams in this bulletin delete this radiator fan motor relay.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1996-97 Eclipse with 2.0L (420A) non-turbo engine and manual transaxle (F5MC1)
AFFECTED MANUALS
1996 Eclipse Service Manual, Volume 2, Pages 132 and 184
1997 Eclipse Service Manual, Volume 2, Pages 144 and 236
SERVICE MANUAL REVISIONS

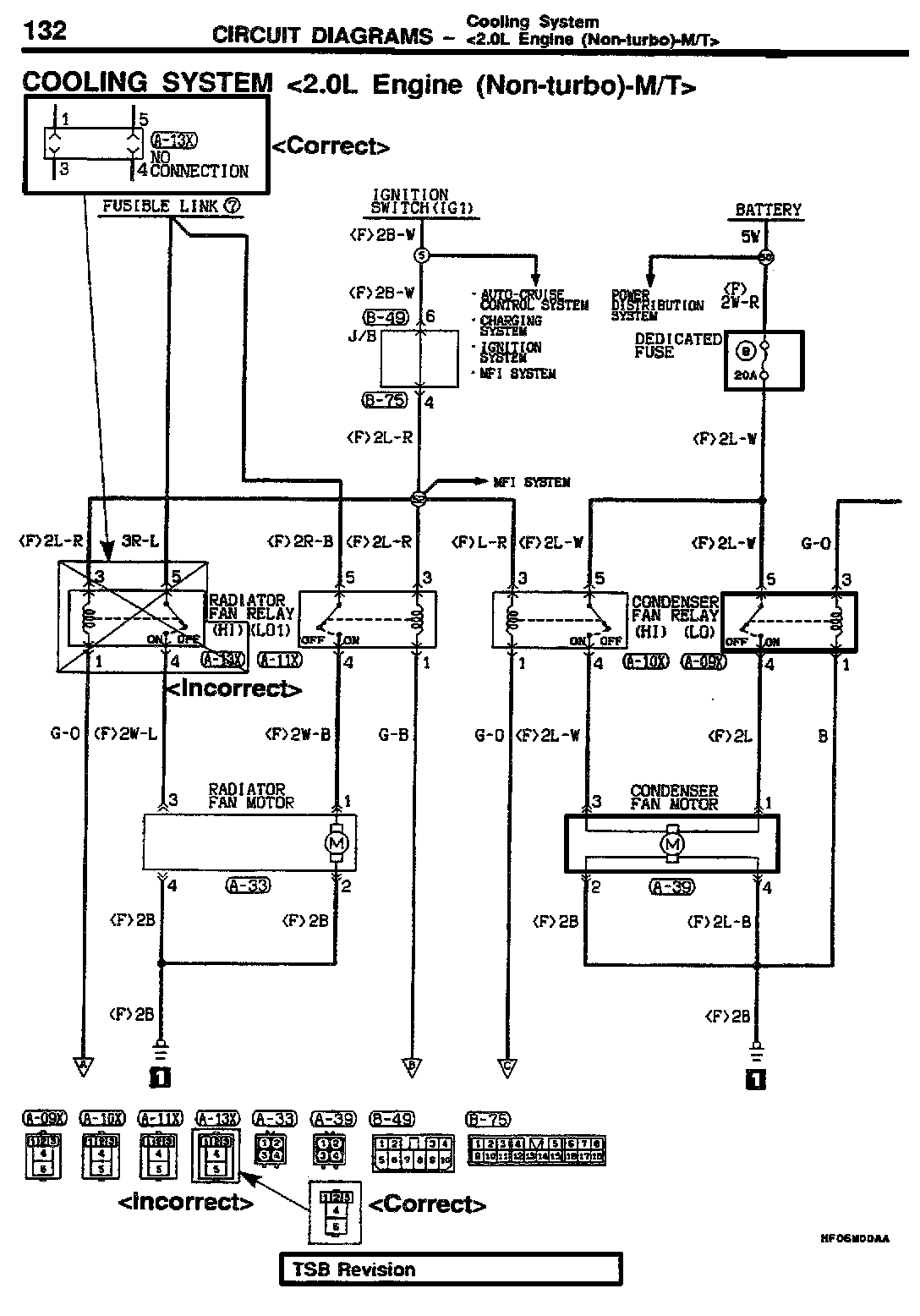

1996 Eclipse Service Manual, Volume 2, Page 132
Correct the information in the manual as shown.

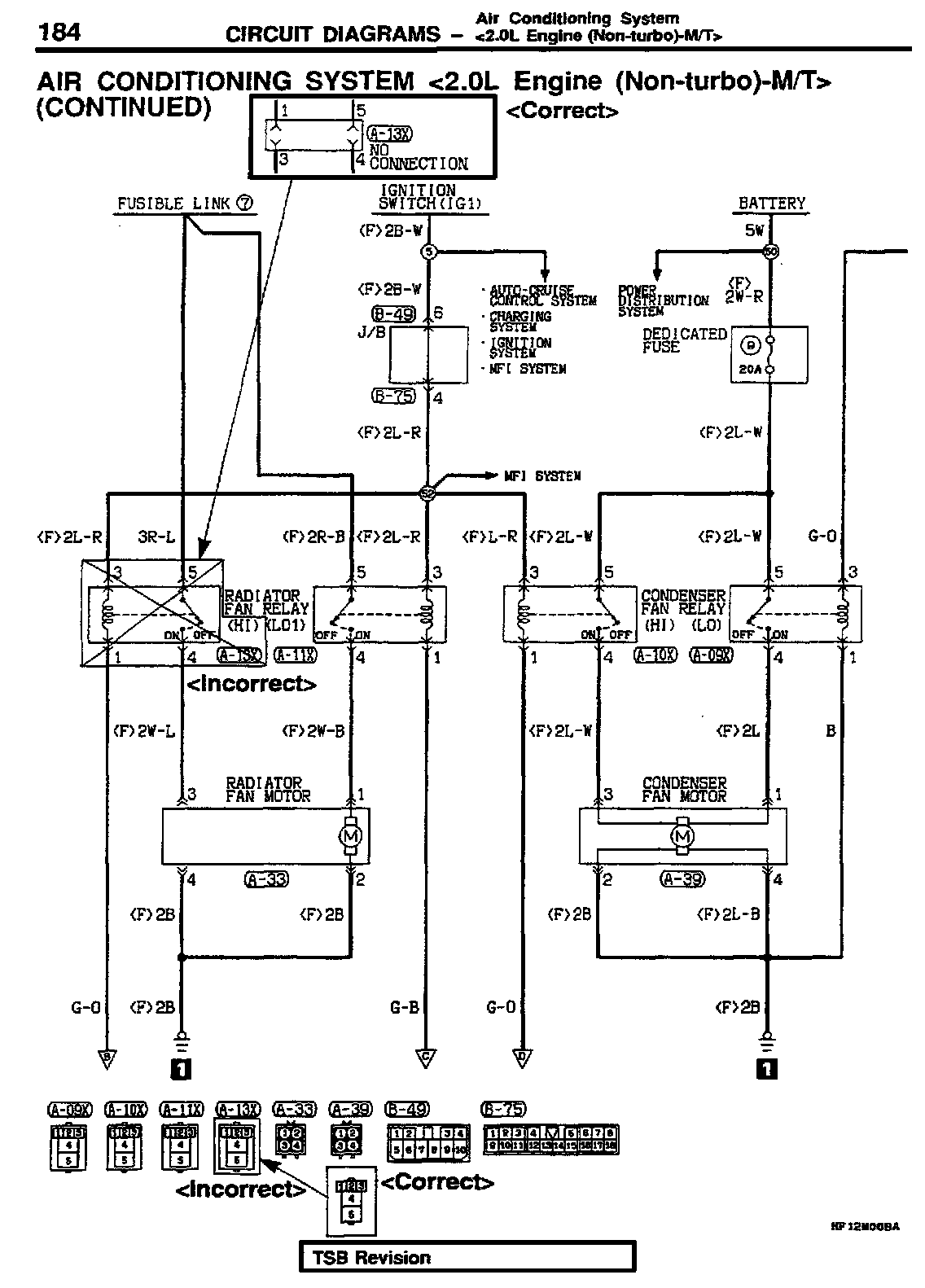

1996 Eclipse Service Manual, Volume 2, Page 184
Correct the information in the manual as shown.
1997 Eclipse Service Manual, Volume 2, Page 144
Correct the information in the manual as shown.

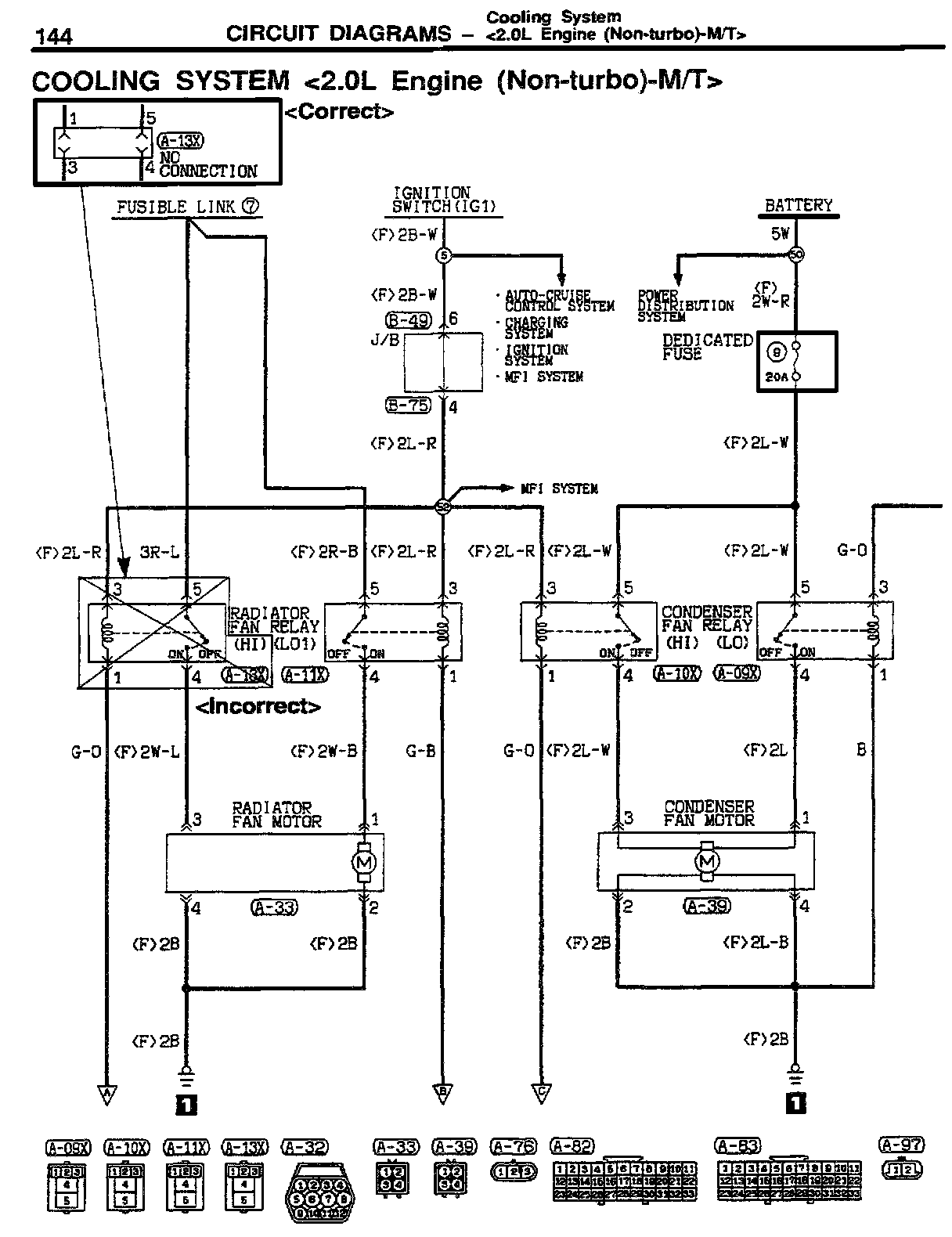

1997 Eclipse Service Manual, Volume 2, Page 236
Correct the information in the manual as shown.
