A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness
Engine Compartment - Connector A (01 Thru 23):

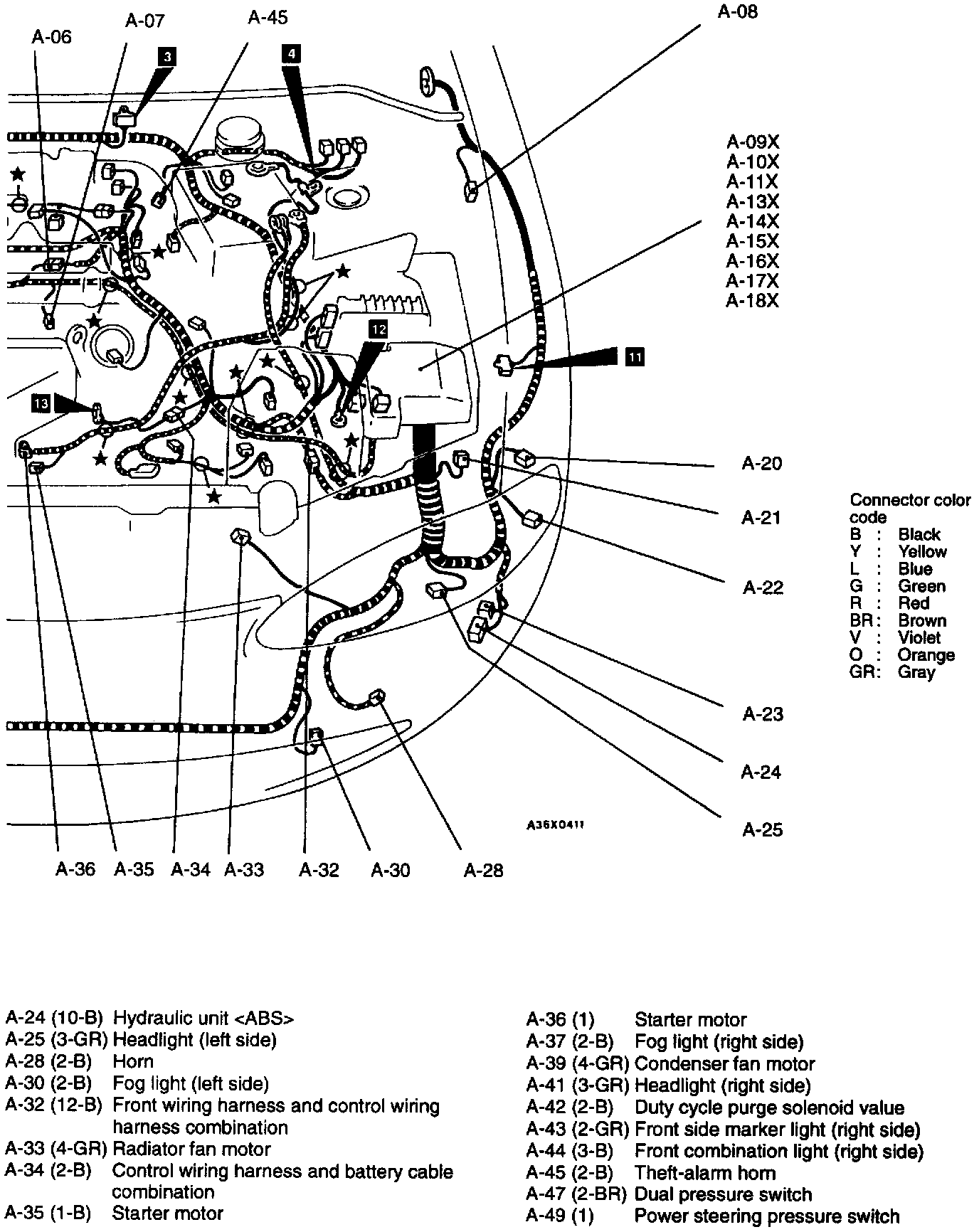

Engine Compartment - Connector A (24 Thru 49):
Engine Compartment - Connector A (50 Thru 75):
Engine Compartment - Connector A (76 Thru 109):
