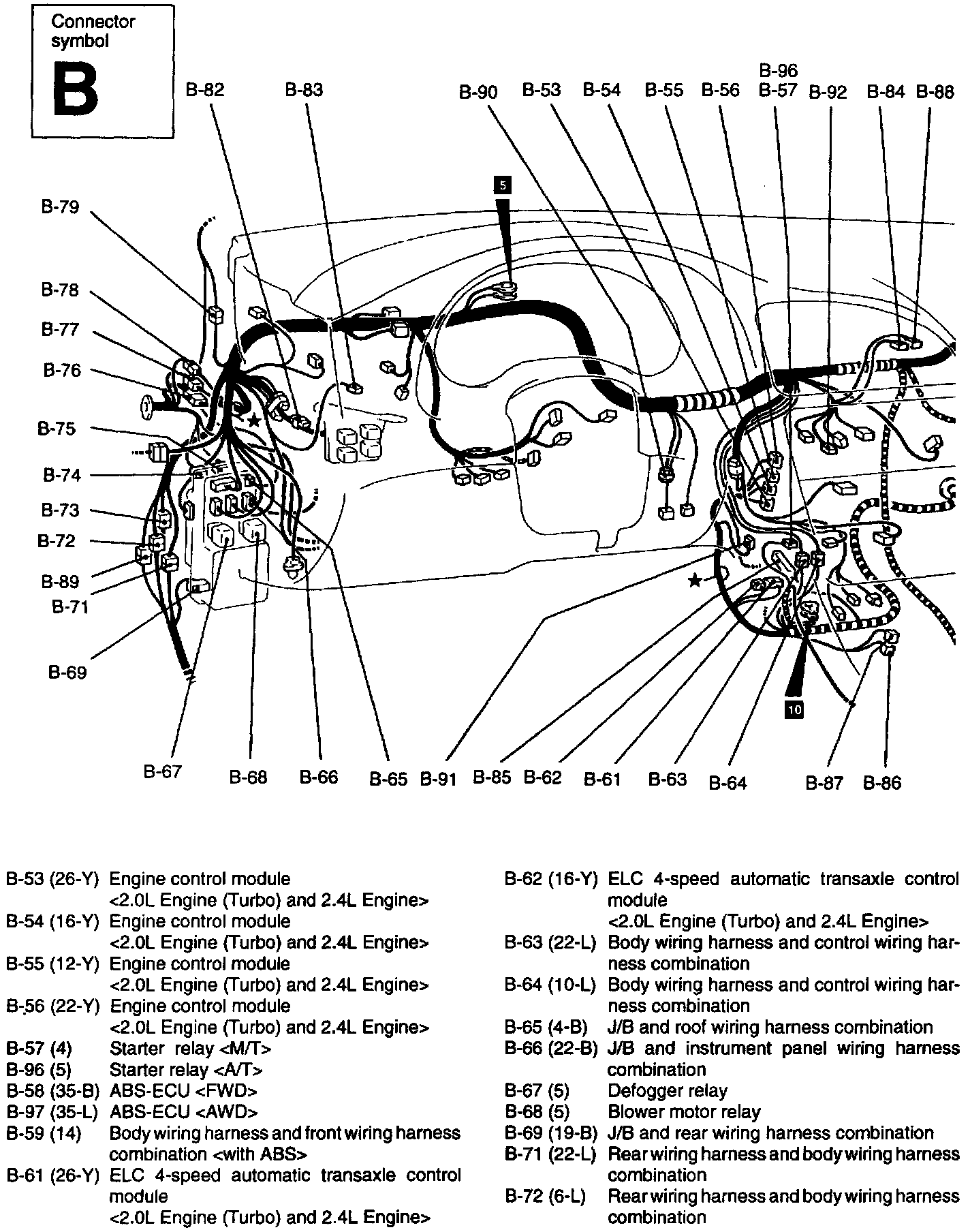

B Connectors - Instrument Panel Harness

Dash Panel B (01 Thru 27):




Dash Panel B (28 Thru 95):




Dash Panel B (53 Thru 72):




Dash Panel B (73 Thru 92):
