Vacuum Hose Diagram - Revision
NO.: TSB-97-17-001DATE: April, 1997
MODEL: 1996-97 Eclipse
SUBJECT:
VACUUM HOSE ROUTING - SERVICE MANUAL REVISION
[TSB Revision TSB-97-17-001]
PURPOSE
The vacuum hose routing illustration on the affected service manual pages is incorrect. This bulletin contains the correct vacuum hose routing illustrations for affected vehicles.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1996-97 Eclipse models equipped with 2.0L non-turbocharged engine
AFFECTED SERVICE MANUALS
^ 1997 Eclipse/Eclipse Spyder, Volume 1, page 17-46
^ 1996 Eclipse, Volume 1, page 17-45

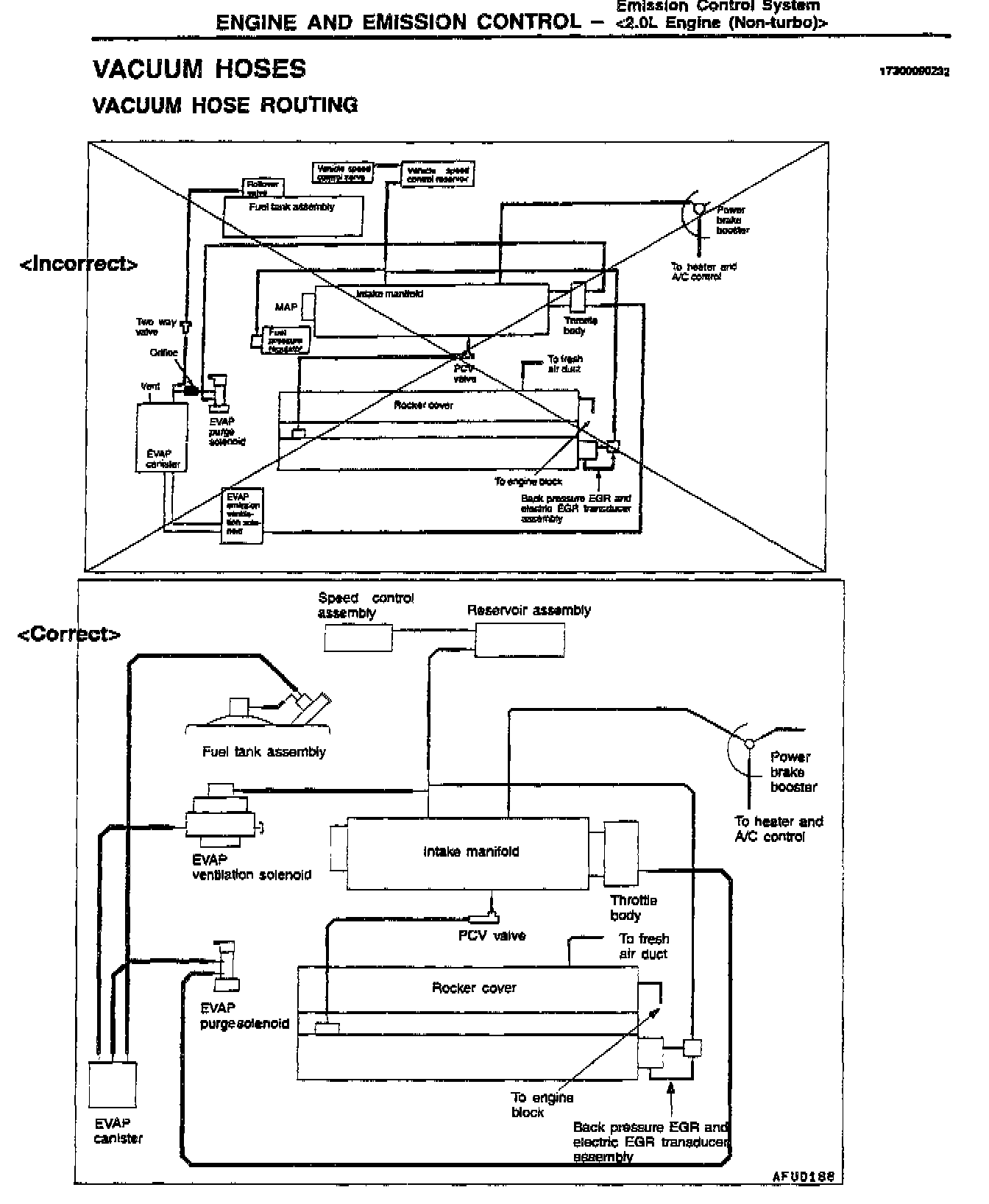

1997 Eclipse, Volume 1, page 17-46
1996 Eclipse, Volume 1, page 17-45
