Home >> Mitsubishi >> 1997 >> Eclipse RS FWD L4-1997cc 2.0L DOHC MFI >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Direct Gear - Converter Clutch ON

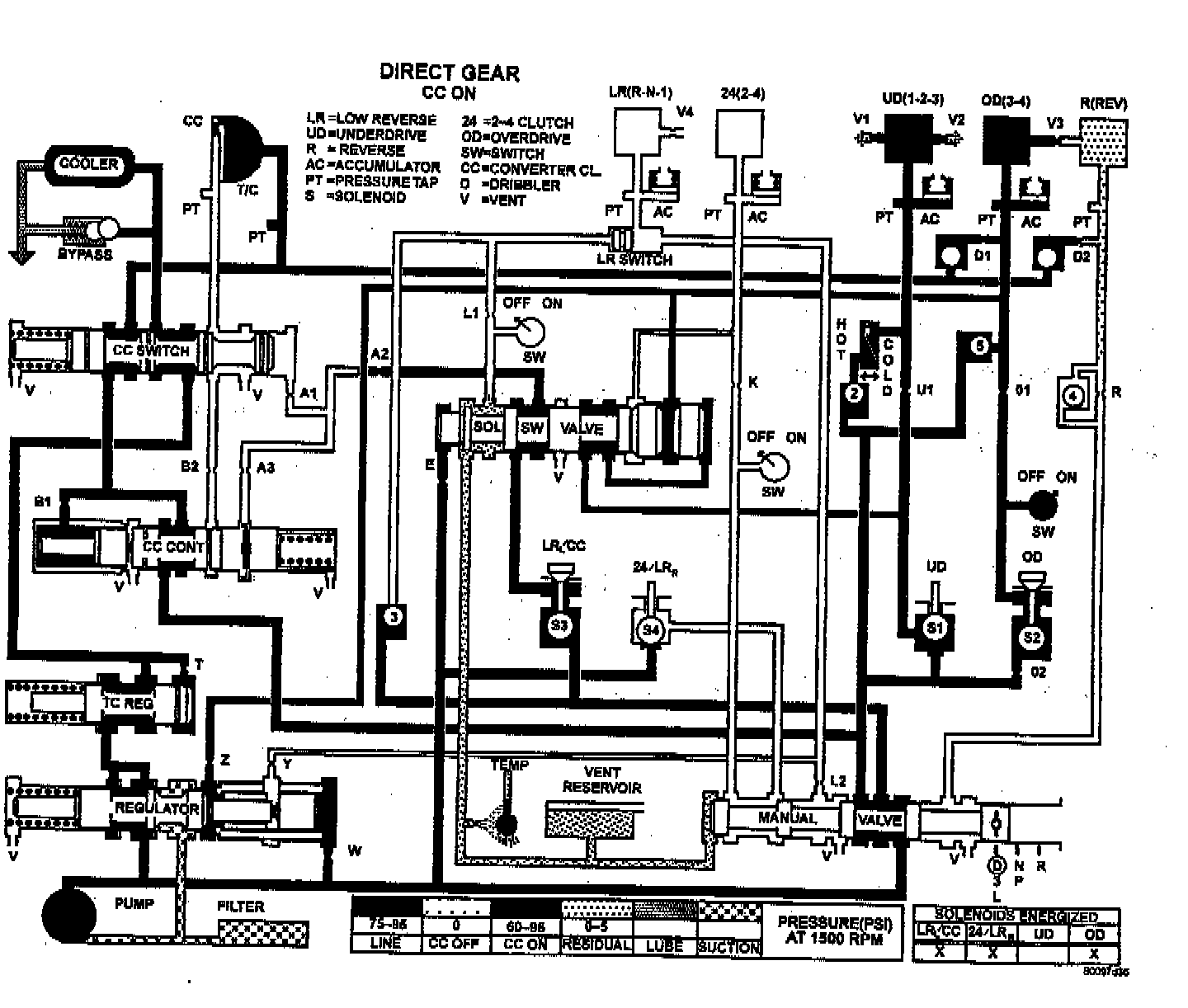

Direct Gear - Converter Clutch ON

Direct Gear - Converter Clutch ON:
