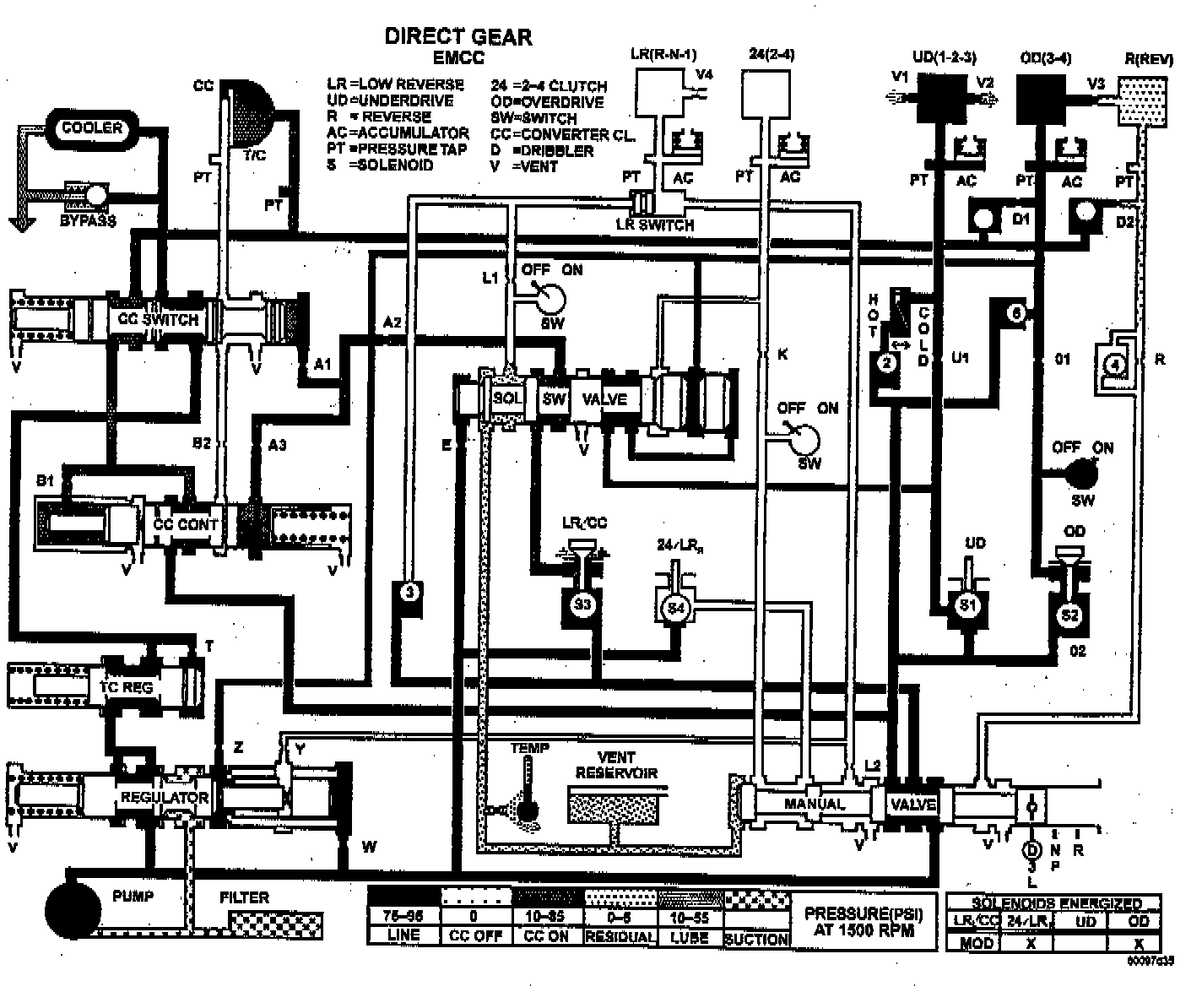

Direct Gear - Electronically Modulated Converter Clutch
Direct Gear - Electronically Modulated Converter Clutch
Direct Gear - Electronically Modulated Converter Clutch:
