Cylinder Head Assembly: Testing and Inspection

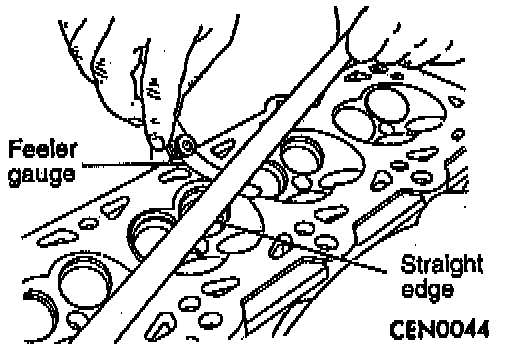

Check the
cylinder head gasket
surface for flatness by using a straightedge and feeler gauge. The limit is
0.1 mm (0.004 inch)
.
