Electrical Diagrams

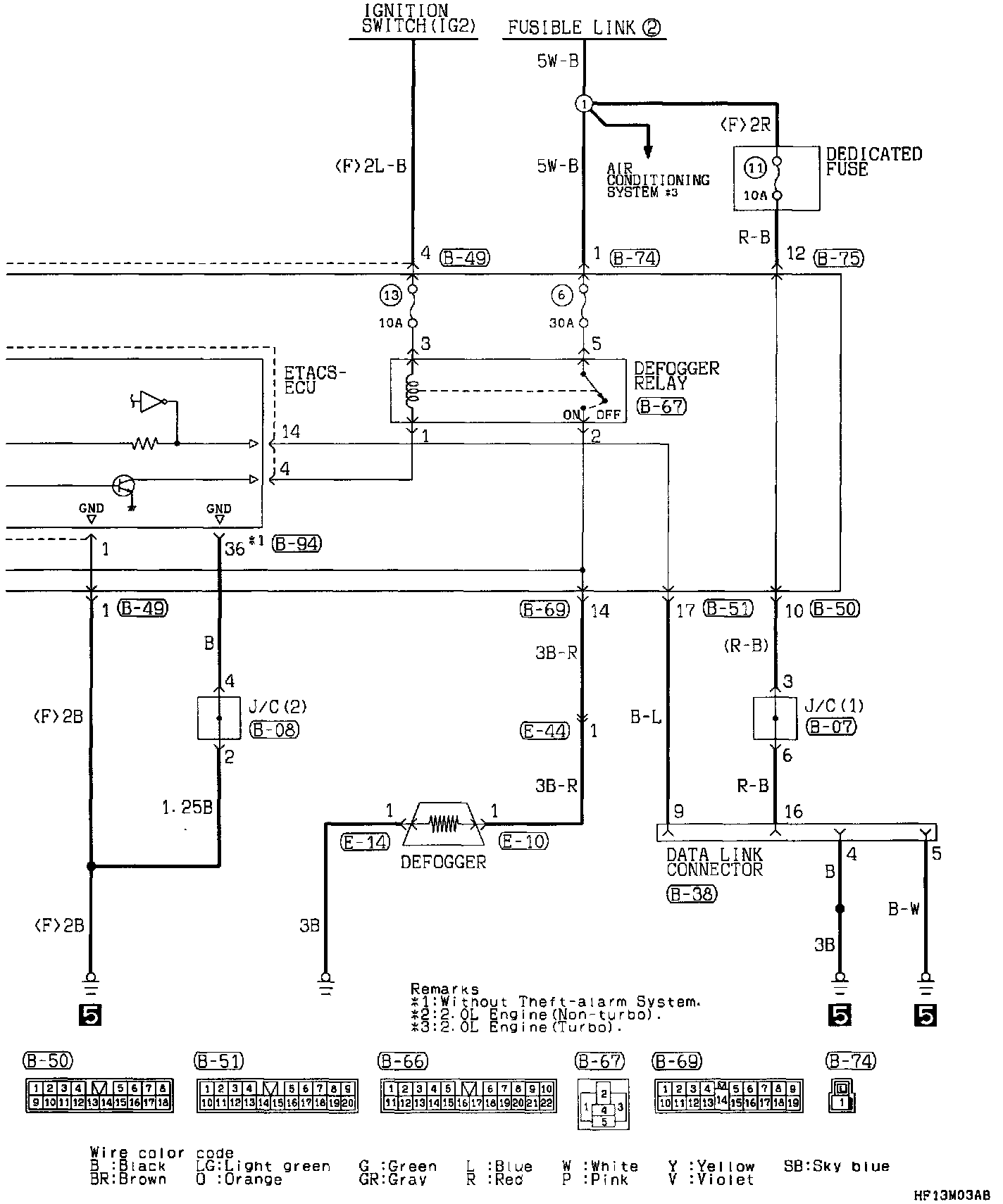

Rear Window Defogger Circuit (Part 1 Of 2):

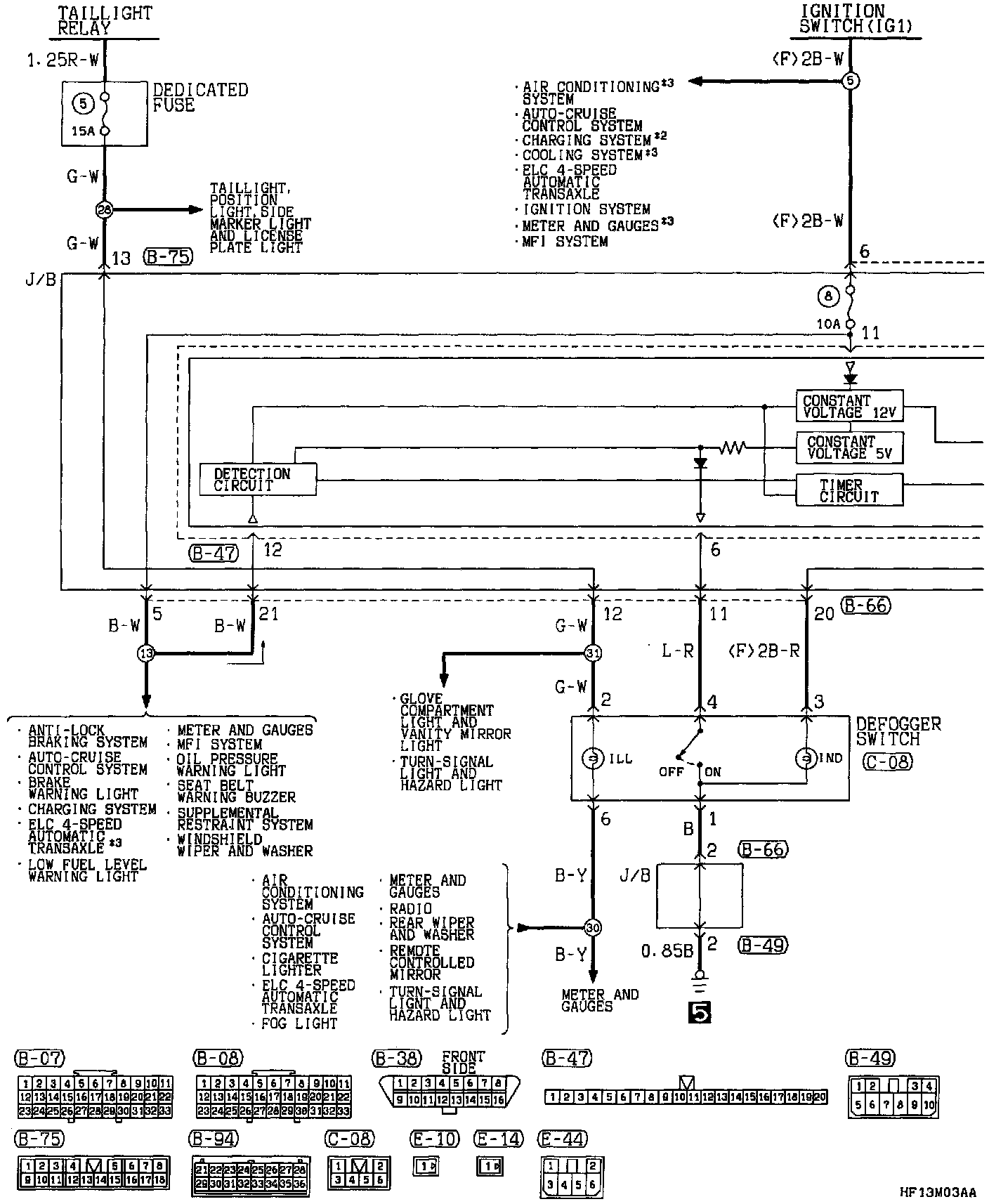

Rear Window Defogger Circuit (Part 2 Of 2):
