Sensors

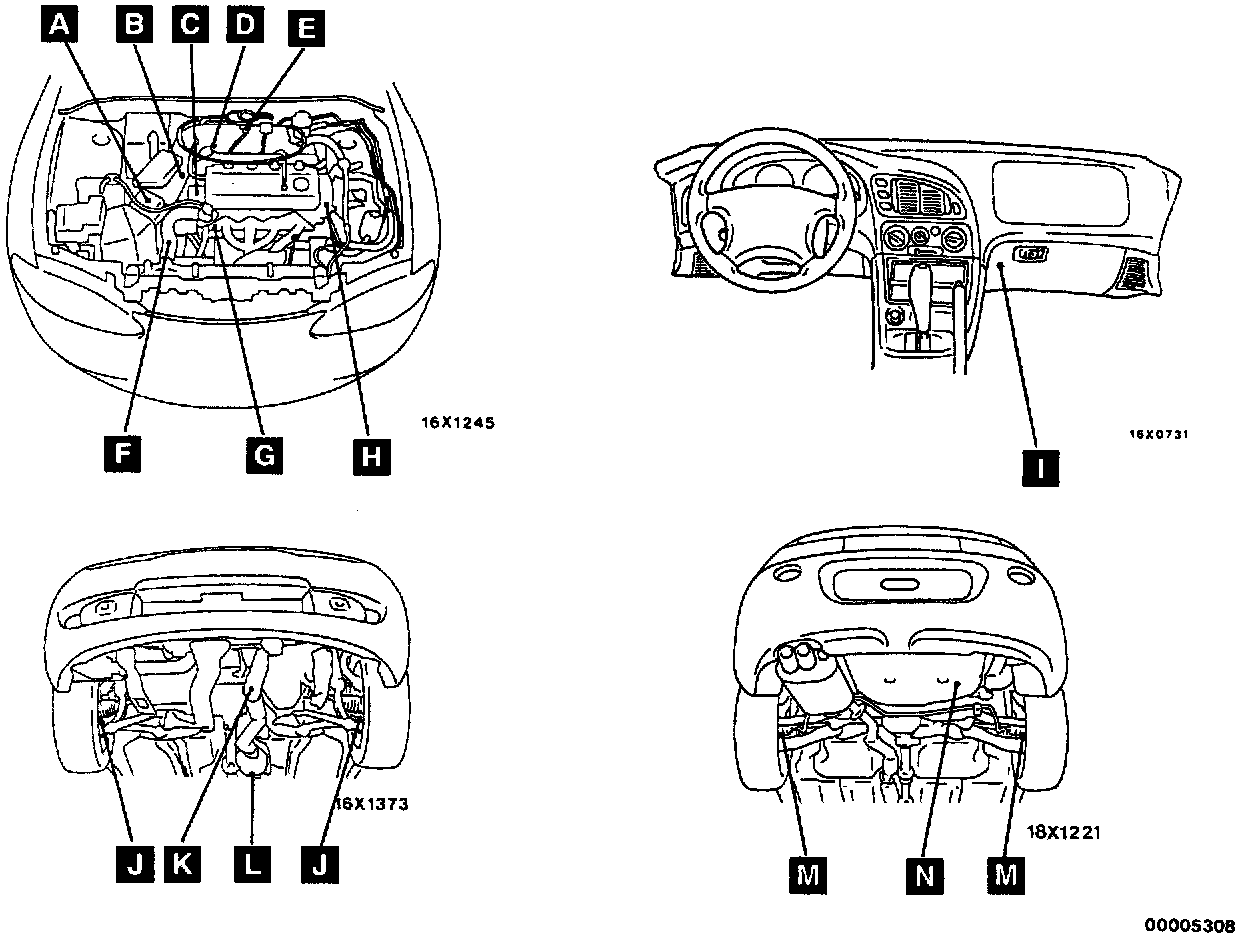

Sensor Location Overviews:

Sensor Location Views A-B:

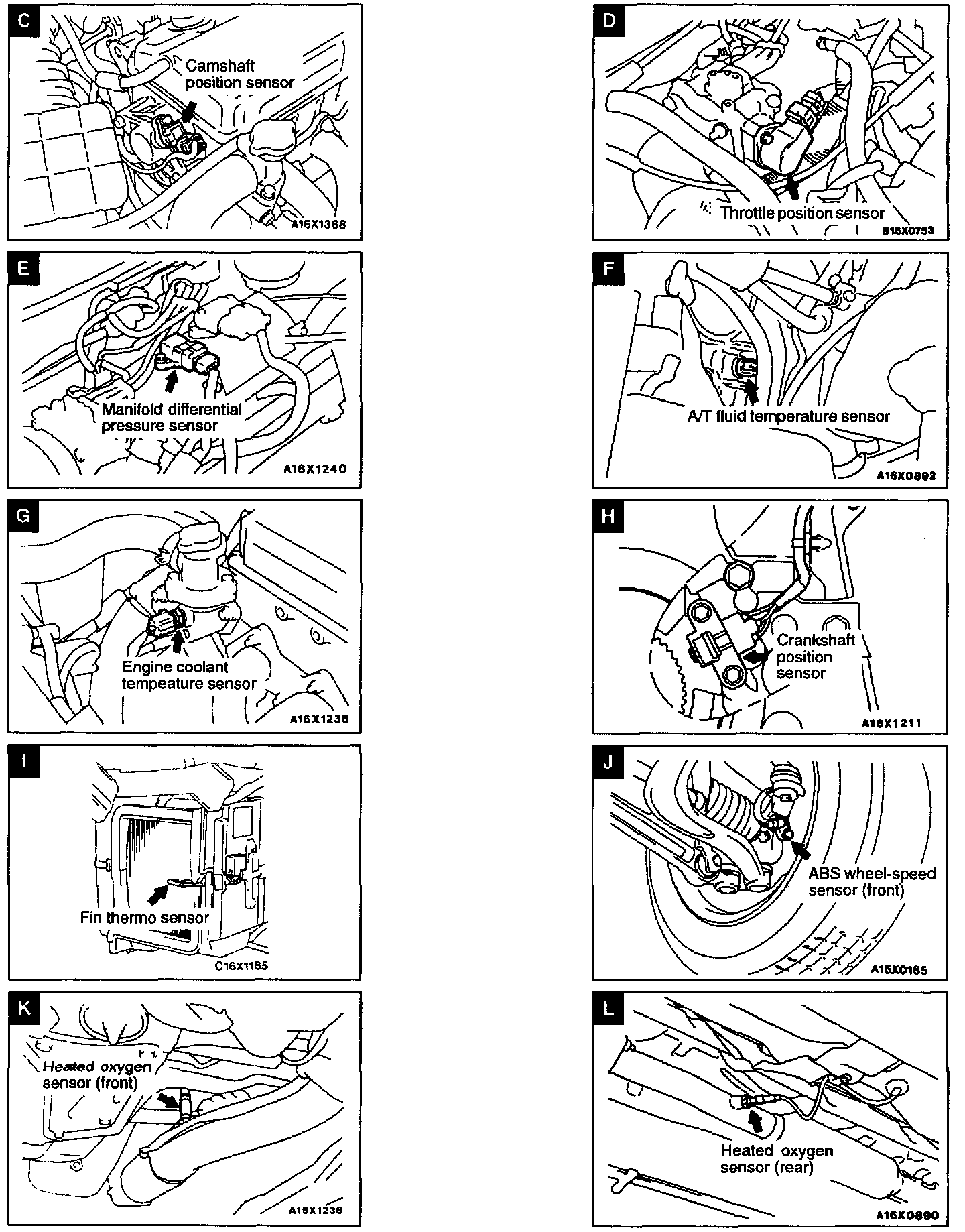

Sensor Location Views C-L:

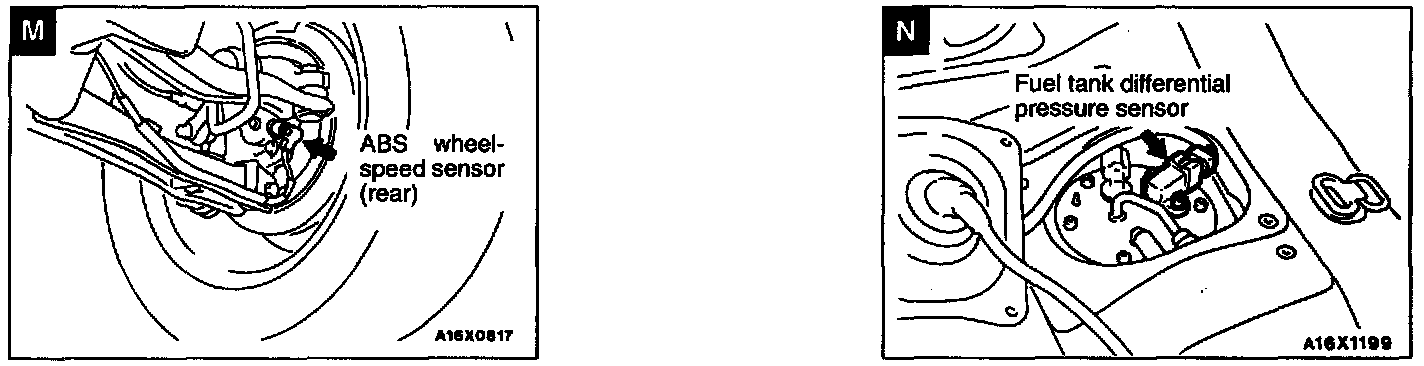

Sensor Location Views M-N:

SENSOR VIEW

ABS Wheel Speed Sensor(front) J
ABS Wheel Speed Sensor(rear) M
A/T Fluid Temperature Sensor F
Camshaft Position Sensor C
Crankshaft Position Sensor H
Engine Coolant Temperature Sensor G
Fin Thermo Sensor I
Fuel Tank Differential pressure sensor N
Heated Oxygen Sensor (front) K
Heated Oxygen Sensor (rear) L
Manifold Differential Pressure Sensor E
Throttle Position Sensor D
Vehicle Speed Sensor B
Volume Air Flow Sensor A
