A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness
Engine Compartment - Connector A (01 Thru 24):

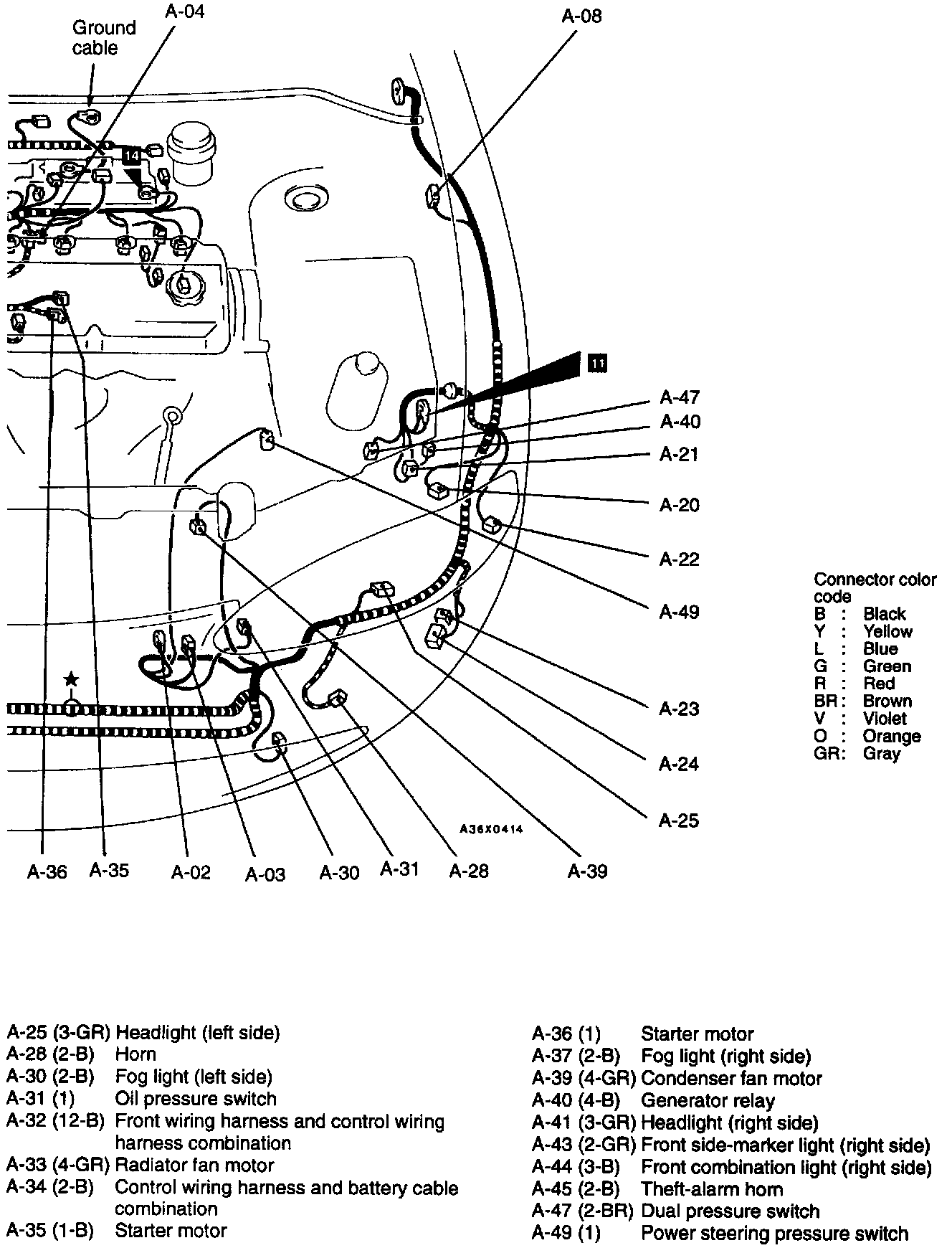

Engine Compartment - Connector A (25 Thru 49):
Engine Compartment - Connector A (50 Thru 93):

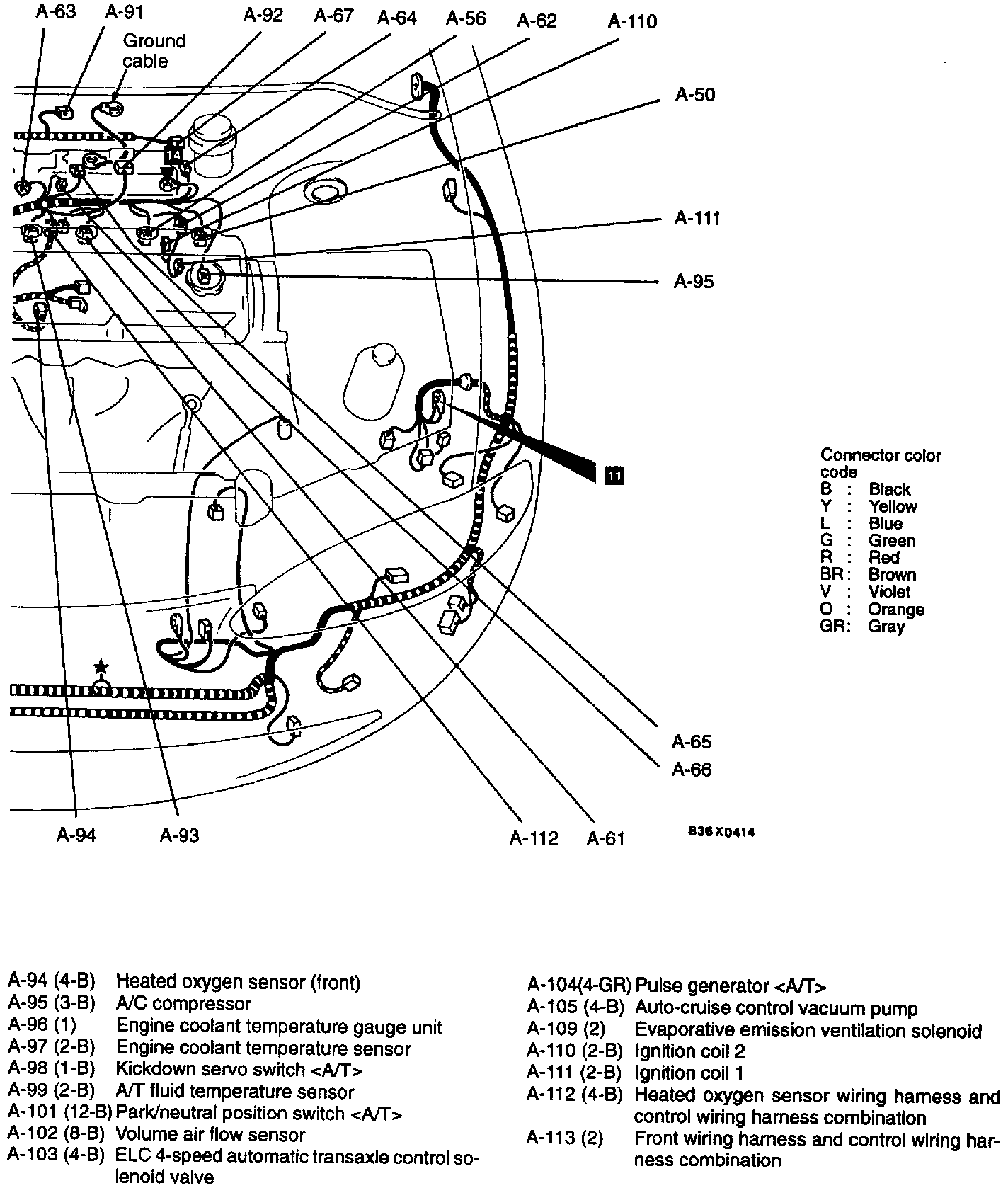

Engine Compartment - Connector A (94 Thru 113):
