Electrical Diagrams

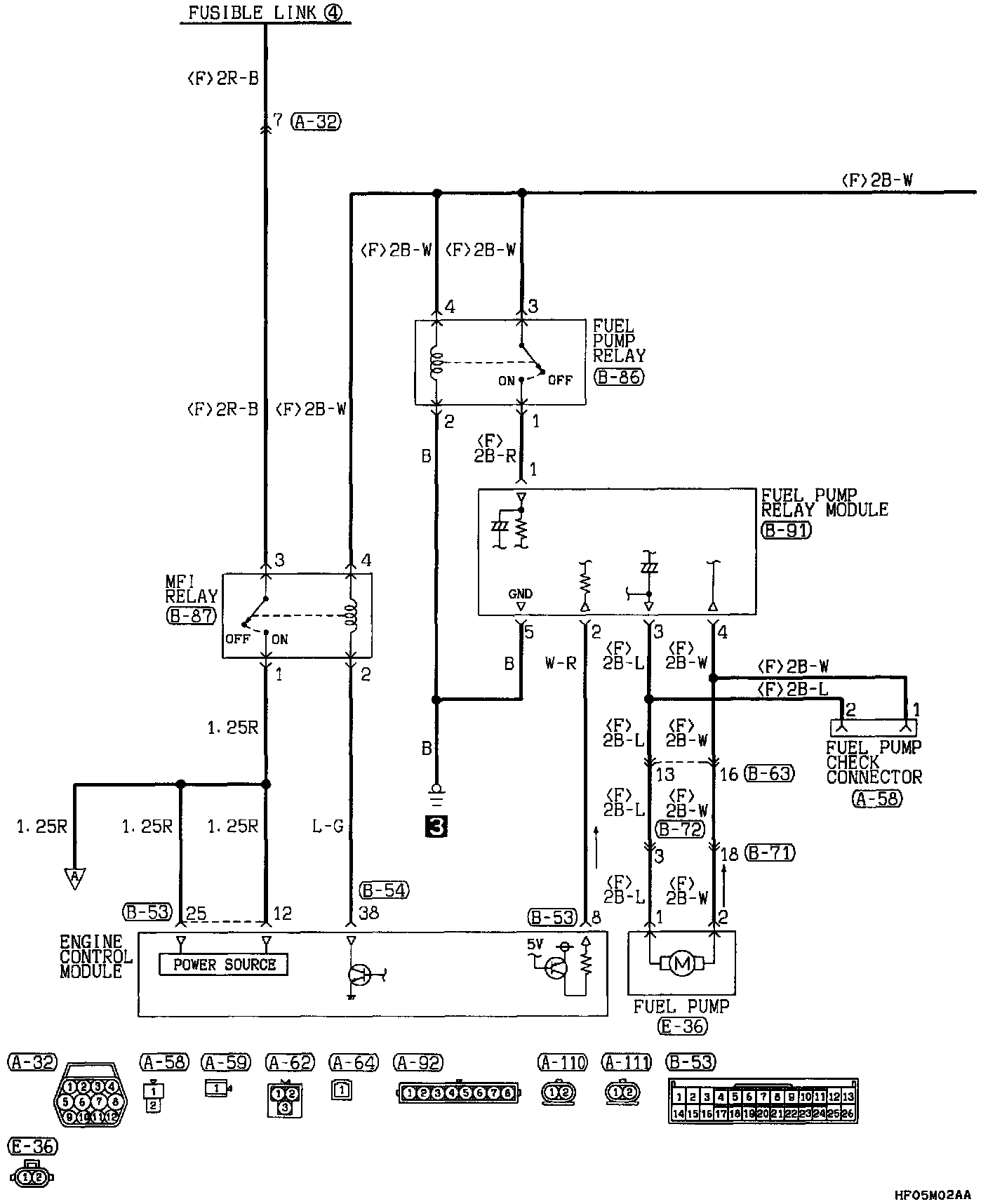

MFI System (Part 1 Of 8):

Engine Control Module
Fuel Pump
Fuel Pump Check Connector
Fuel Pump Relay
Fuel Pump Relay Module
- Power Source
MFI Relay

MFI System (Part 2 Of 8):

Capacitor
Engine Control Module
Ignition Coil (1, 2)
Ignition Power Transistor
- Tacho

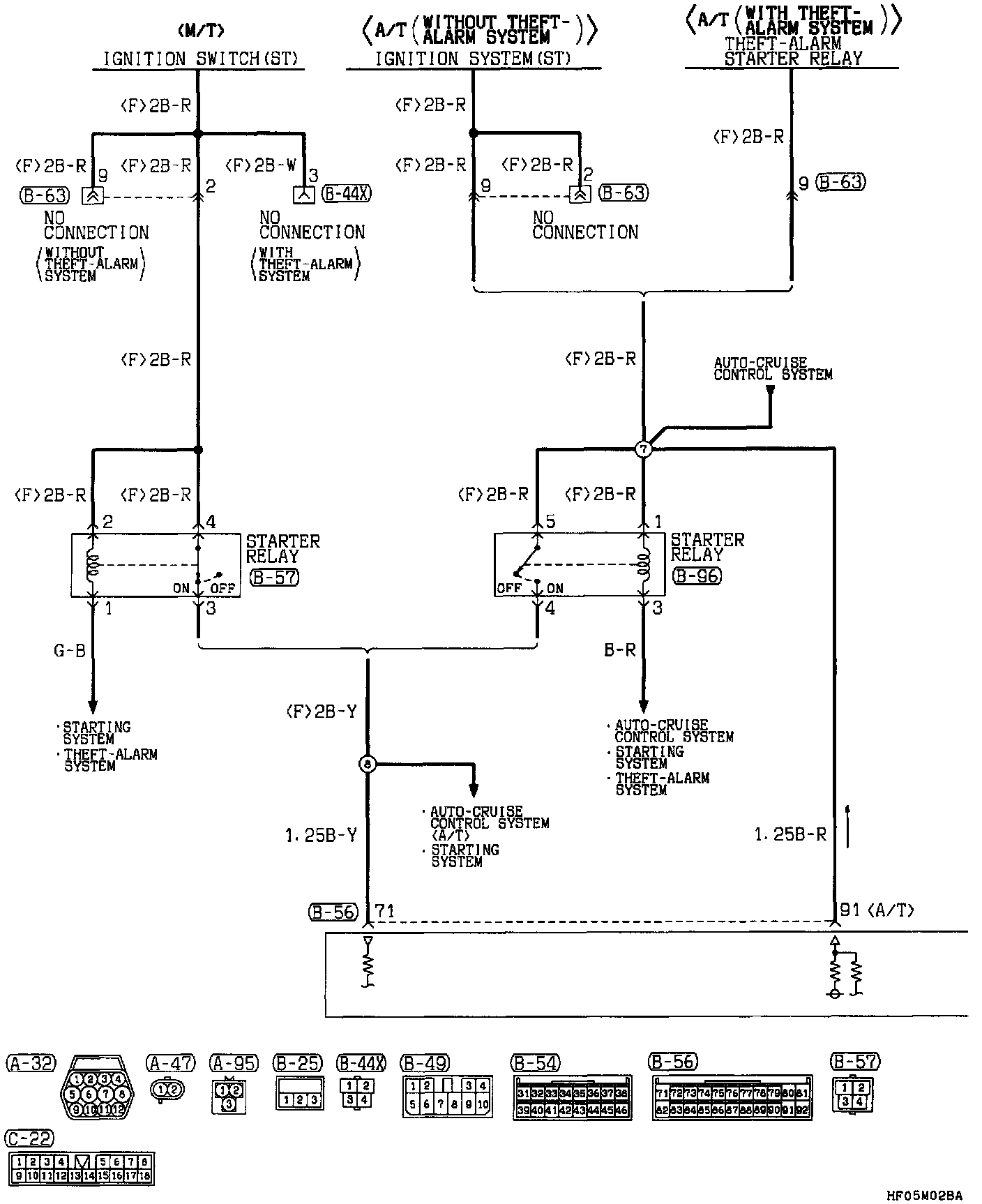

MFI System (Part 3 Of 8):

Engine Control Module
Starter Relay

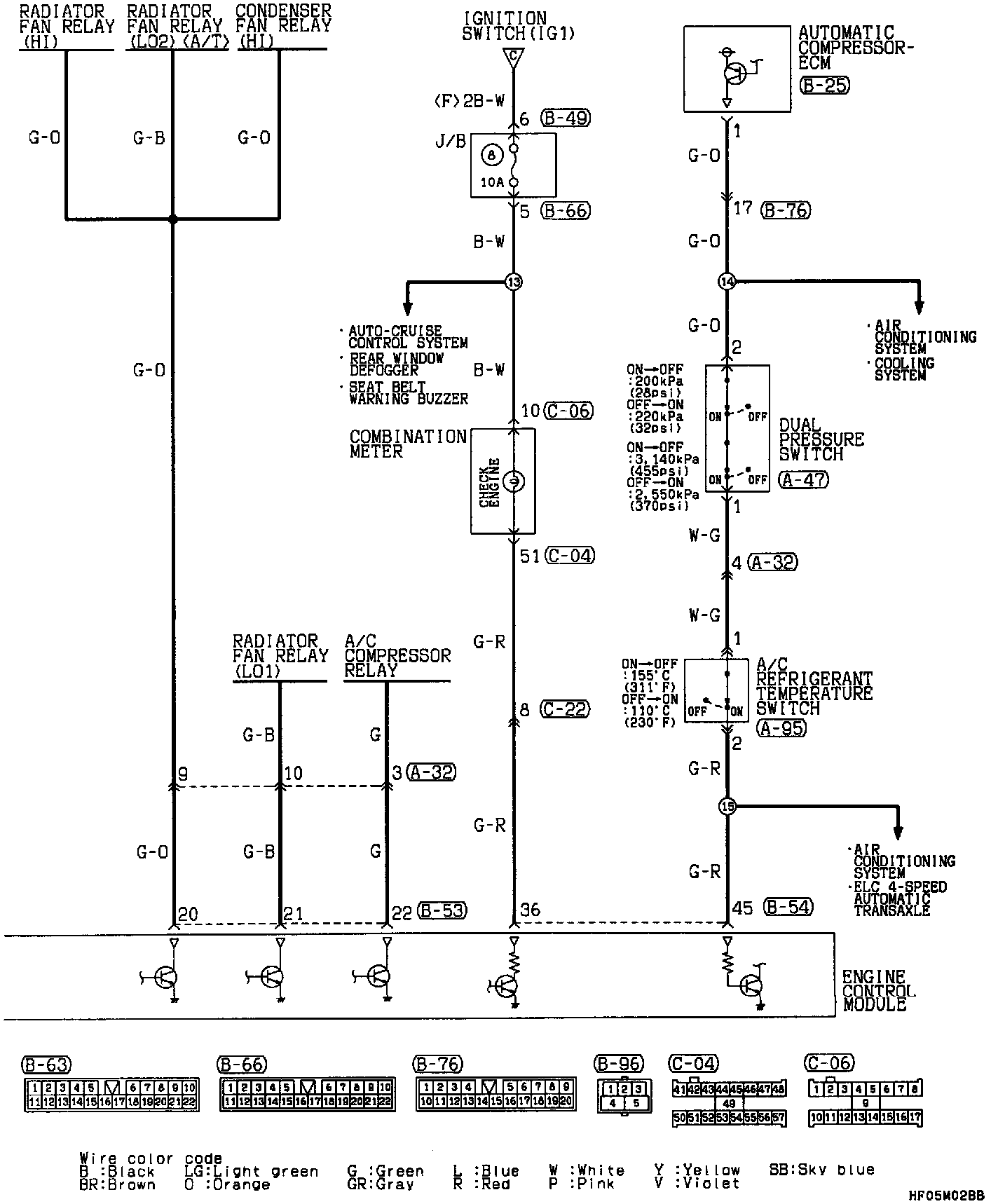

MFI System (Part 4 Of 8):

Automatic Compressor ECM
A/C Refrigerant Temperature Switch
Combination Meter
Dual Pressure Switch
Engine Control Module
J/B

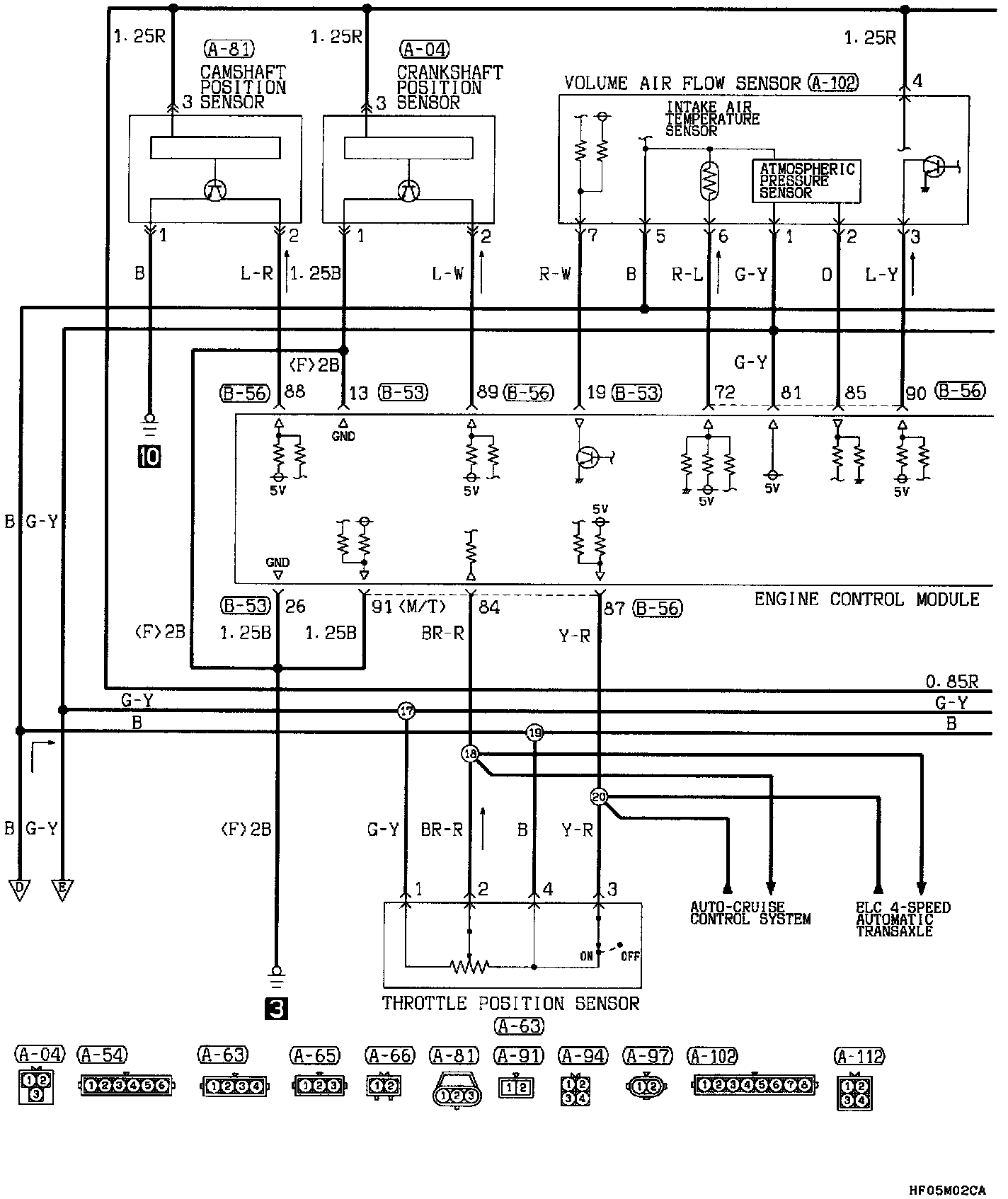

MFI System (Part 5 Of 8):

Camshaft Position Sensor
Crankshaft Position Sensor
Engine Control Module
Throttle Position Sensor
Volume Air Flow Sensor
- Atmospheric Pressure Sensor

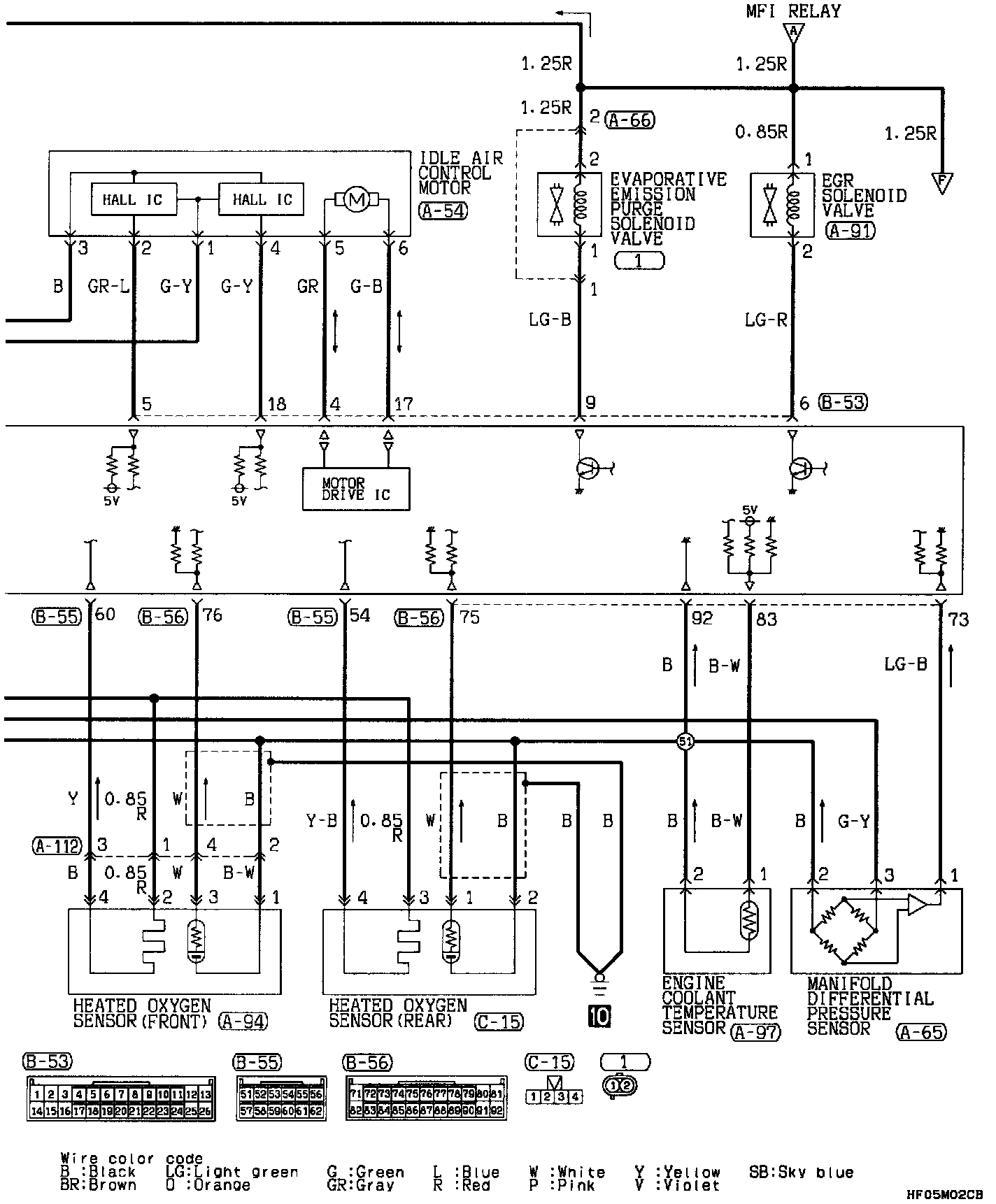

MFI System (Part 6 Of 8):

EGR Solenoid Valve
Engine Coolant Temperature Sensor
Engine Control Module
- Motor Drive IC
Evaporative Purge Solenoid Valve
Heated Oxygen Sensor (Front & Rear)
Idle Air Control Motor
Manifold Differential Pressure Sensor

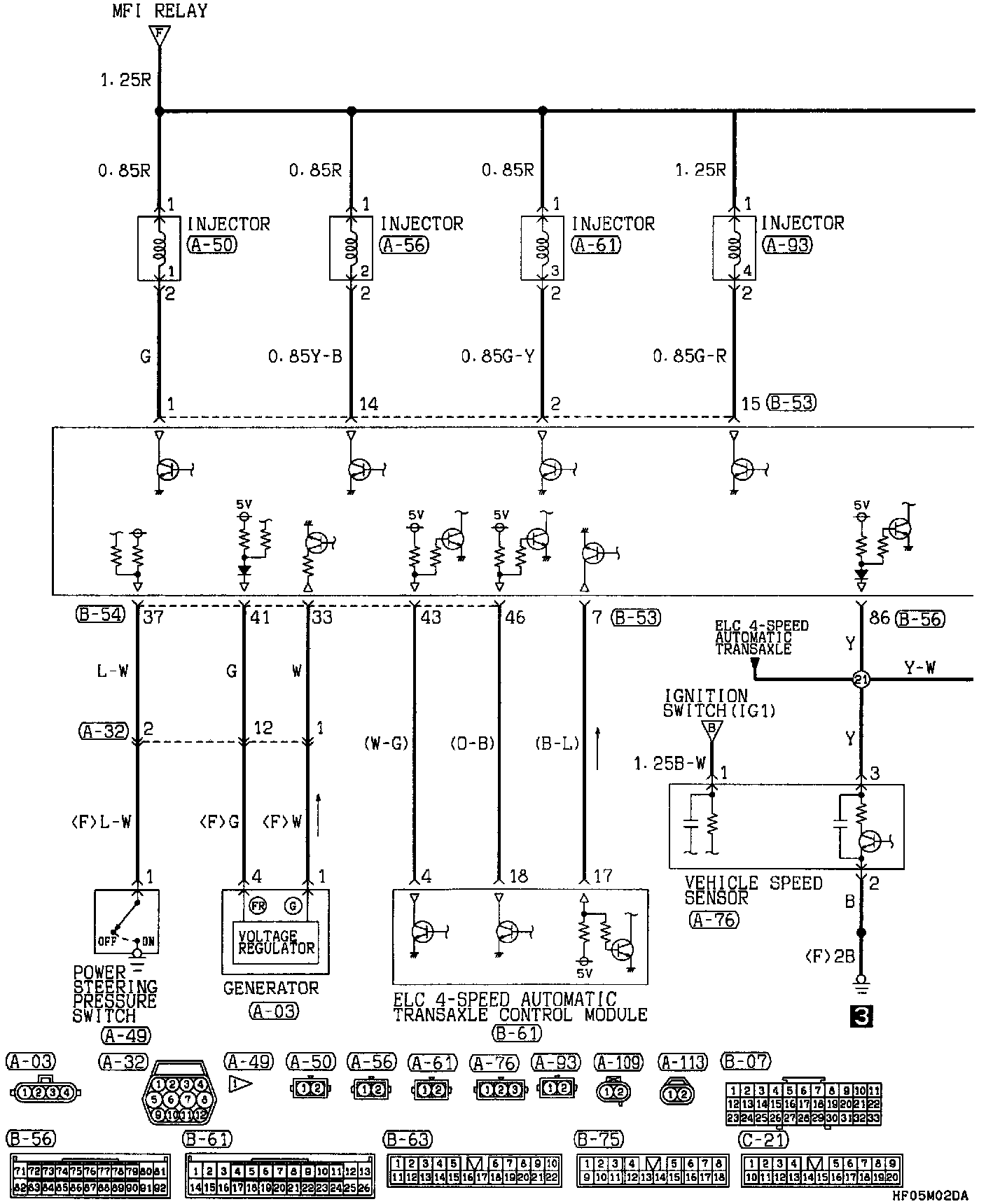

MFI System (Part 7 Of 8):

Engine Control Module
ELC 4-Speed Automatic Transaxle Control Module
Fuel Injectors
Generator
- Voltage Regulator
Ignition Switch (IG1)
Power Steering Pressure Switch

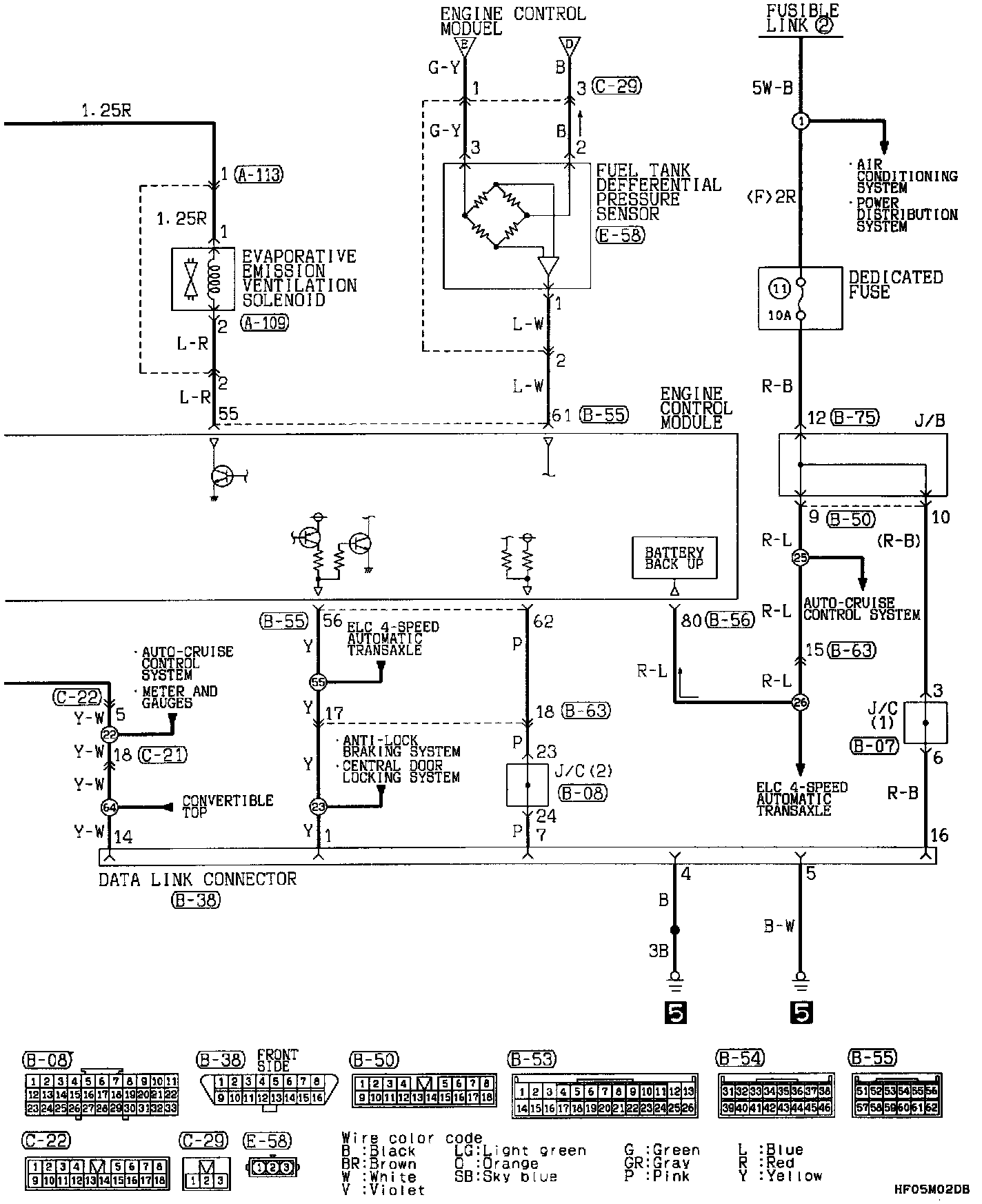

MFI System (Part 8 Of 8):

Data Link Connector
Dedicated Fuse
Engine Control Module
- Battery Back Up
Evaporative Emission Ventilation Solenoid
Fuel Tank Differential Pressure Sensor
J/B
J/C (1, 2)
