Ignition System: Service and Repair

REMOVAL AND INSTALLATION
Refer to the illustration for the service procedures, noting the following:

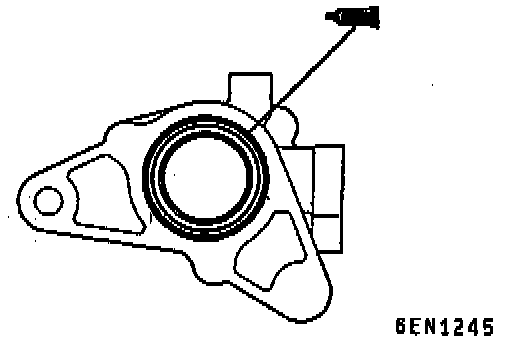

When installing the camshaft position sensor support, apply a 3 mm bead of Form-In-Place Gasket (FIPG) to the area shown. Use Mitsubishi Genuine Part No. MD970389, or equivalent sealant.
