E Connectors - Interior Harness

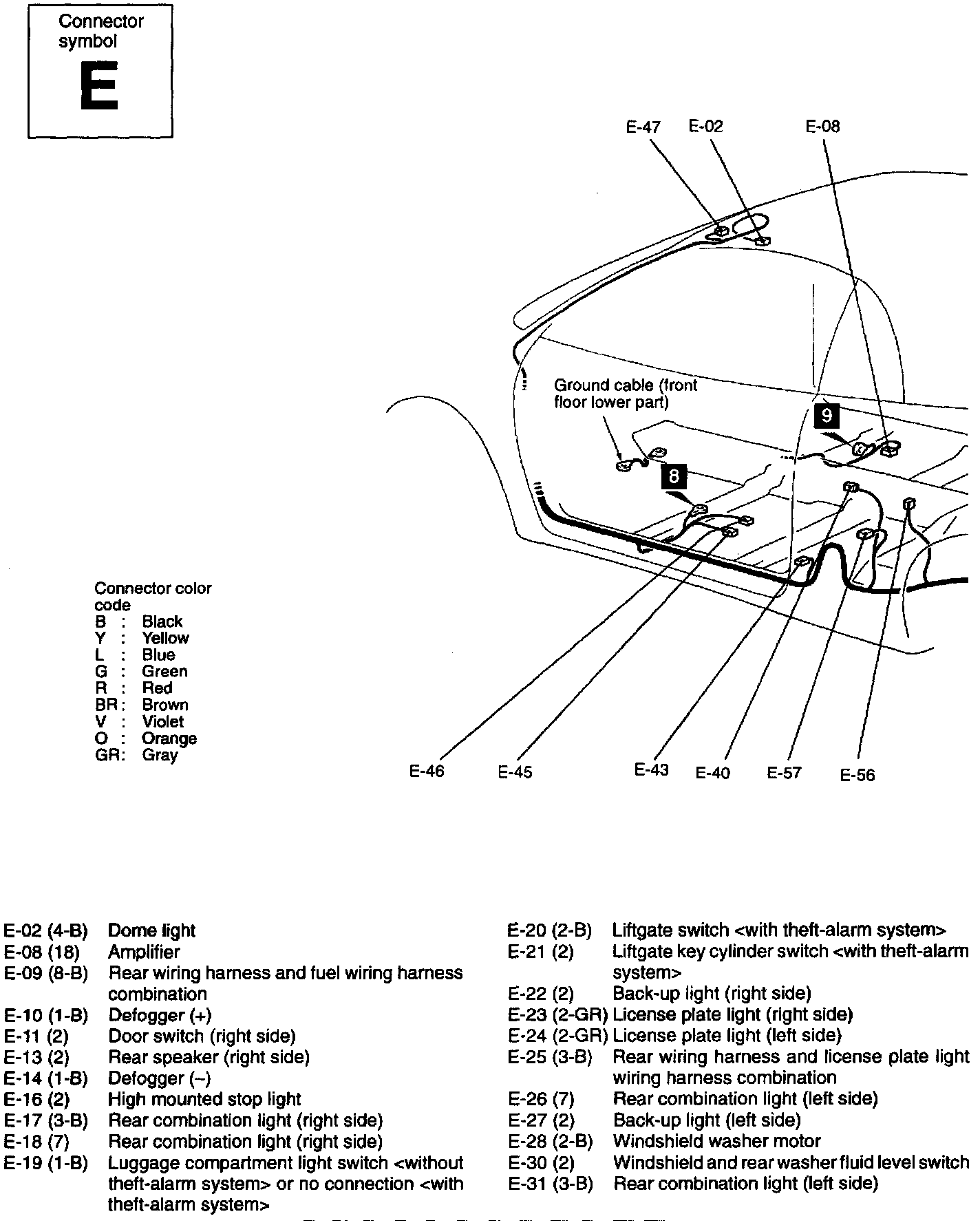

Interior - Connector E (02 Thru 31):



Interior - Connector E (33 Thru 58):
