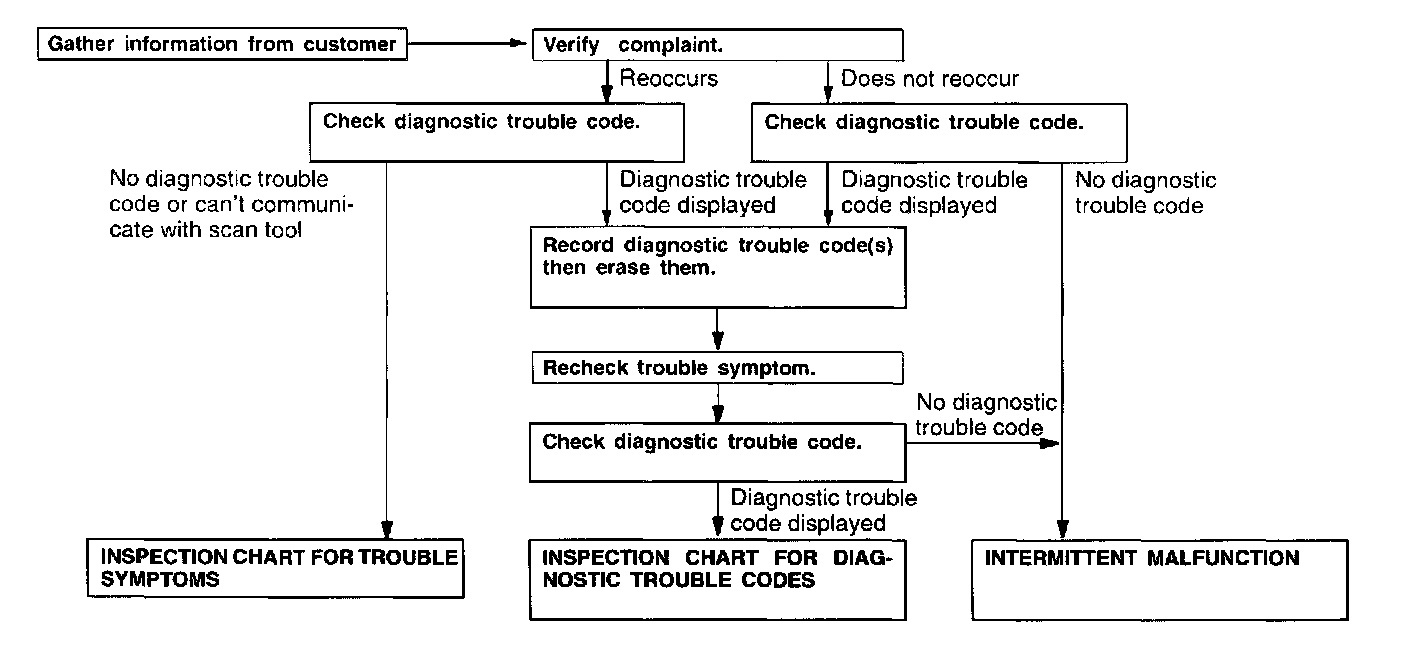

Flow of Diagnosis

NOTE
Before carrying out trouble diagnosis, check all the following items.
1. Is the vacuum hose correctly installed and undamaged?
2. Are the auto-cruise, accelerator, and throttle cables routed correctly?
3. Do the link assembly and cables move smoothly?
4. Is the play of each cable within its standard value?
