Cruise Control

Auto-Cruise Control System (Part 1 Of 6):

Auto-Cruise Control Main Switch
Combination Meter
Dedicated Fuse
J/B
J/C (3)
Powertrain Control Module
- Power Source

Auto-Cruise Control System (Part 2 Of 6):

Auto-Cruise Control Relay
Auto-Cruise Speed Control Assembly
Dedicated Fuse
J/C (1)
Powertrain Control Module
- Battery Back Up
Stop Light Switch

Auto-Cruise Control System (Part 3 Of 6):

Crankshaft Position Sensor
J/C (3, 4)
Powertrain Control Module
Vehicle Speed Sensor

Auto-Cruise Control System (Part 4 Of 6):

EATX-ECM
Input & Output Shaft Speed Sensor
Powertrain Control Module
J/C (4)
Transaxle Range Switch

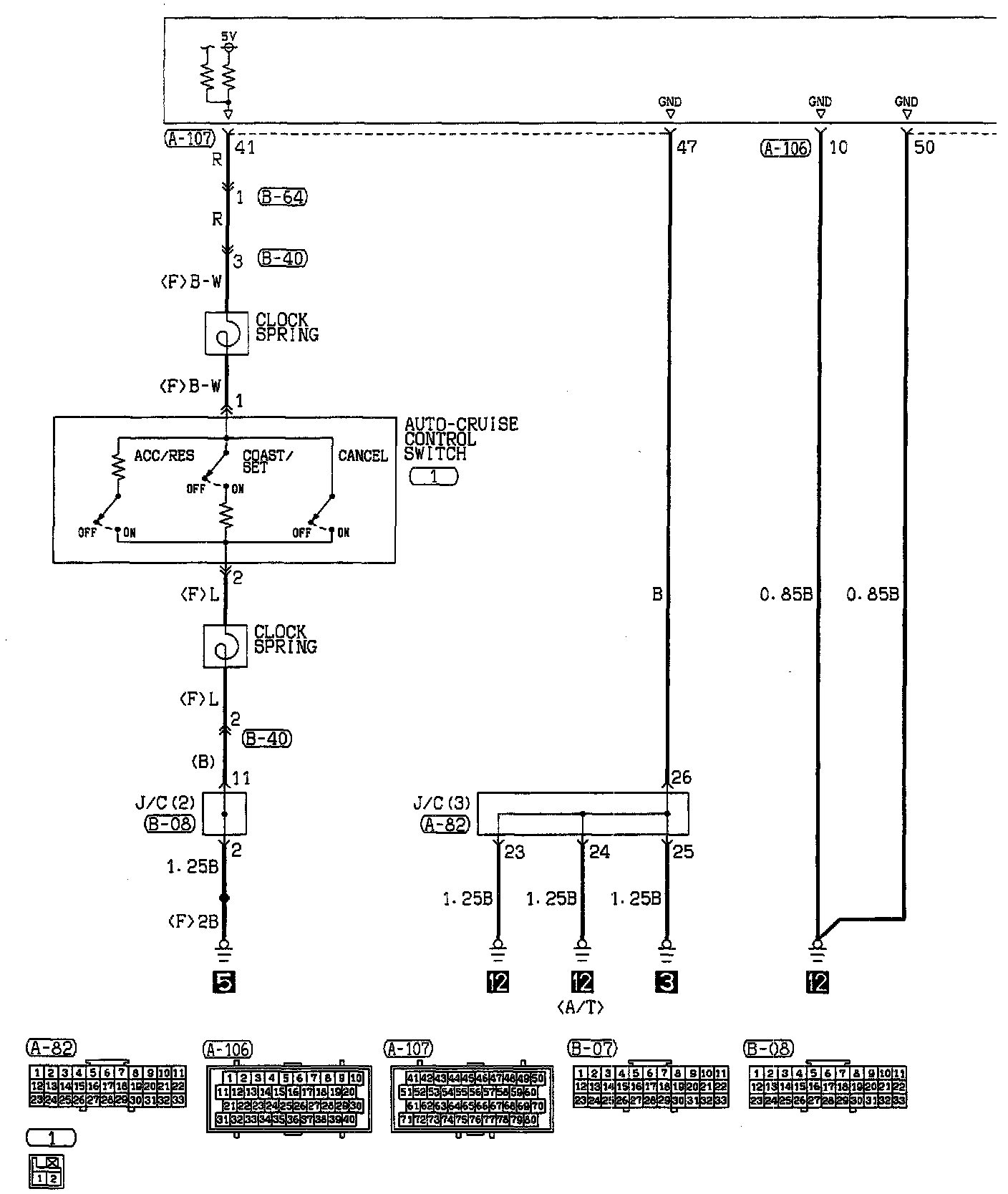

Auto-Cruise Control System (Part 5 Of 6):

Auto-Cruise Control Switch
Clock Spring
J/C (2, 3)
Powertrain Control Module

Auto-Cruise Control System (Part 6 Of 6):

Data Link Connector
Dedicated Fuse
J/B
J/C (1, 2)
Powertrain Control Module
