Electrical Diagrams

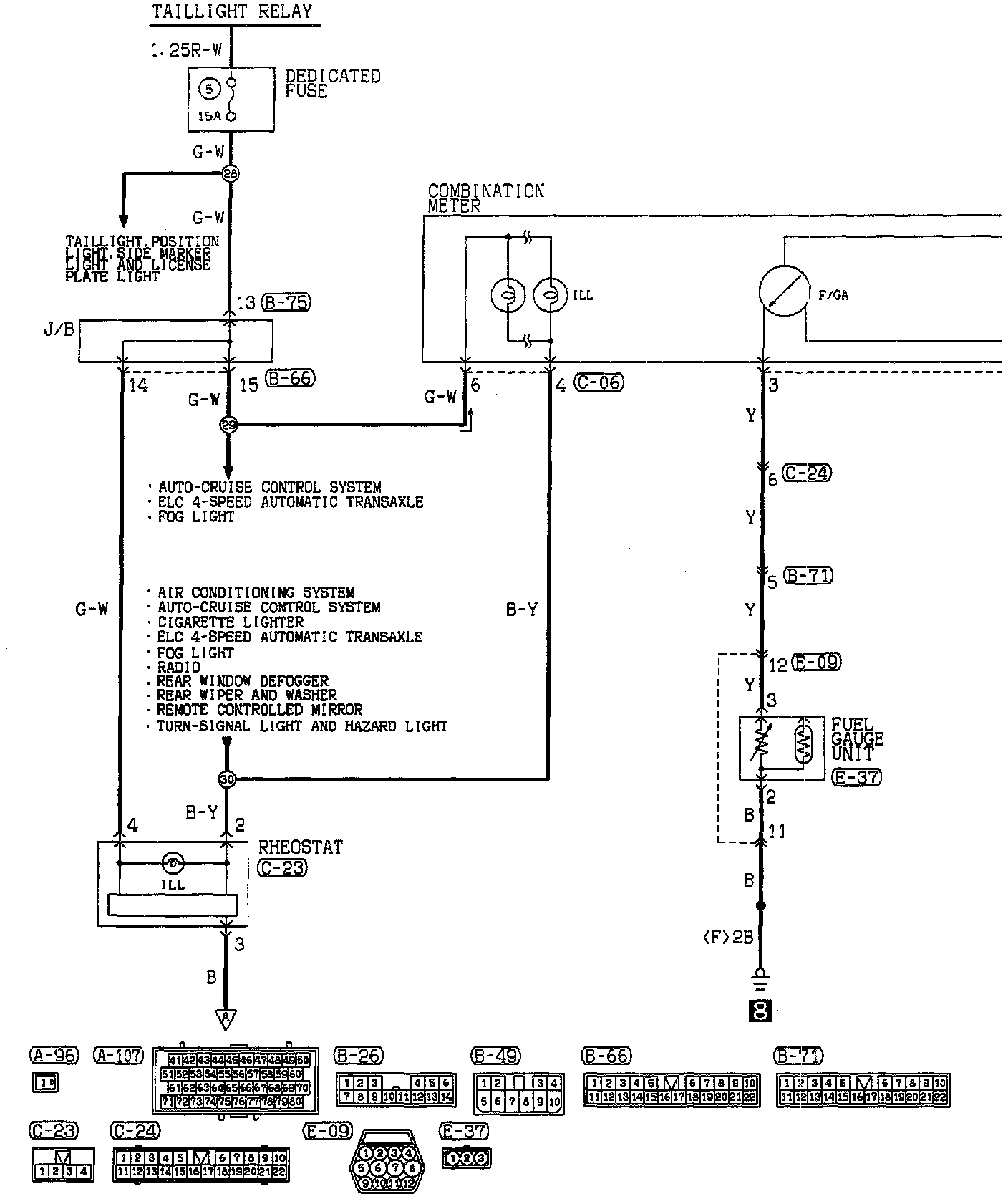

Meter And Gauges (Part 1 Of 4):
Combination Meter
Dedicated Fuse
Fuel Gauge Unit
J/B
Rheostat
Meter And Gauges (Part 2 Of 4):
Automatic Compressor-ECM
Combination Meter
Engine Coolant Temperature Gauge Unit
J/B
Powertrain Control Module

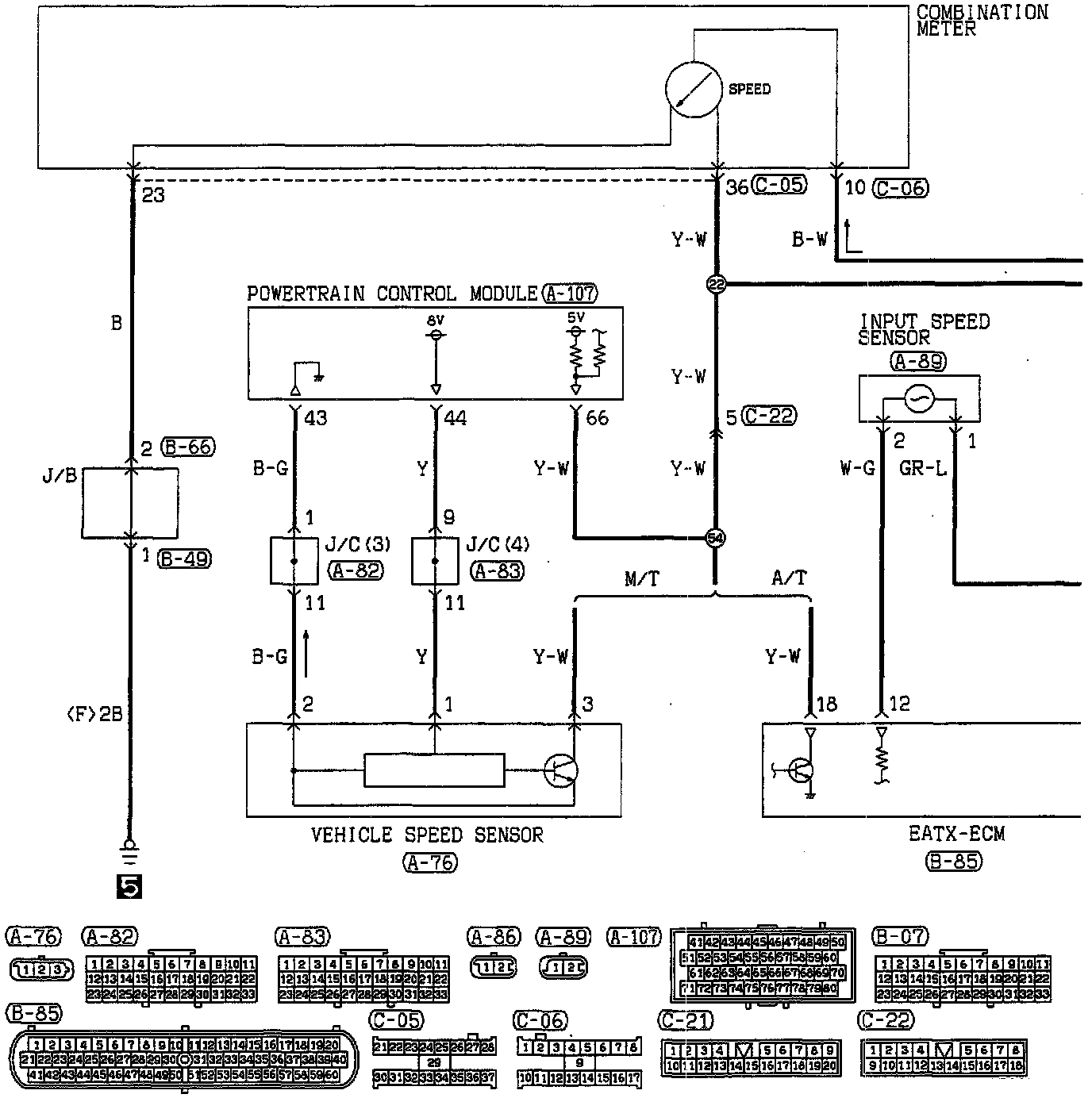

Meter And Gauges (Part 3 Of 4):
Combination Meter
EATX-ECM
Input Speed Sensor
J/B (3, 4)
Powertrain Control Module
Vehicle Speed Sensor

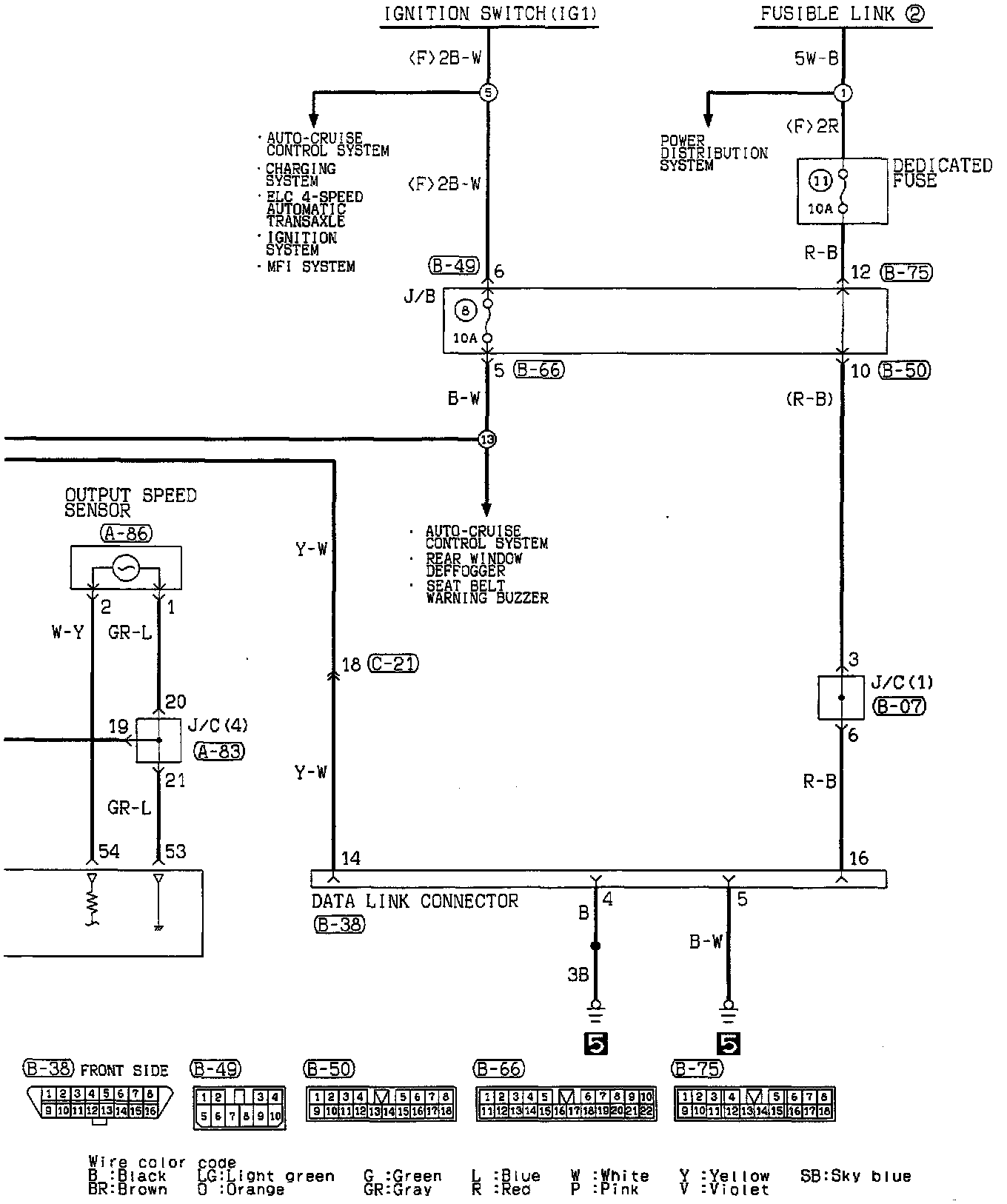

Meter And Gauges (Part 4 Of 4):
Data Link Connector
Dedicated Fuse
EATX-ECM
J/B
Output Speed Sensor
