Alignment: Testing and Inspection

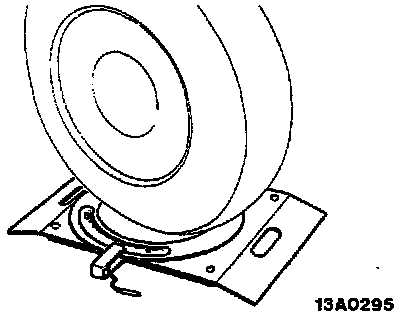

1. Locate front wheels on turning radius gauge and measure steering angle.

Standard value:
Inside wheel: 30° 30' to 34° 30'
Outside wheel: 27° 00'

2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
