Fuse: Locations

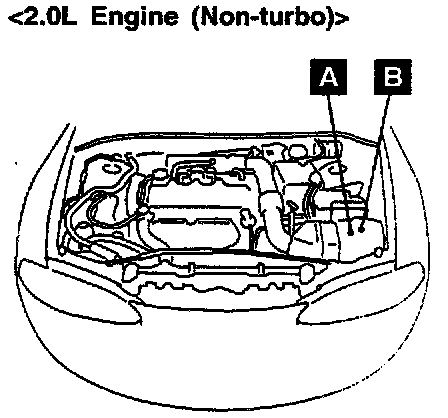

Fusible Link And Fuse Locations Overall View:

Fusible Link And Fuse Locations Overall View:

Fusible Link And Fuse Locations Views A-I:

Name Symbol
Dedicated Fuses No. 2-12 A
Dedicated Fuses No. 13 I
Fusible Links No. 1-9 B
Multi-Purpose Fuses H
