A/T - (F4AC1) Revised Accumulator Spring
No: TSB-98-23-006DATE: April, 1998
MODEL: 1996-98 Eclipse 2.0L non-turbo
SUBJECT:
CHANGED ACCUMULATOR RETURN SPRING (F4AC1 TRANSAXLE) - SERVICE MANUAL REVISION
[TSB Revision TSB-98-23-006]
PURPOSE
This bulletin has corrected information concerning the underdrive accumulator spring. The underdrive accumulator is changed from a single type spring to a double type.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1996-98 Eclipse 2.0L non-turbo equipped with the F4AC1 automatic transaxle
AFFECTED SERVICE MANUALS
Automatic Transmission Overhaul Service Manual, Pages 23G-15, 23G-47
1996 Eclipse Service Manual, Volume 1, Pages 23D-15, 23D-47
1997 Eclipse/Eclipse Spyder Manual, Volume 1, Pages 23D-14, 23D-47
1998 Eclipse/Eclipse Spyder Manual, Volume 1, Pages 23D-14, 23D-47
SERVICE MANUAL REVISIONS
Automatic Transmission Overhaul Service Manual, Page 23G-15
Automatic Transmission Overhaul Service Manual, Page 23G-47

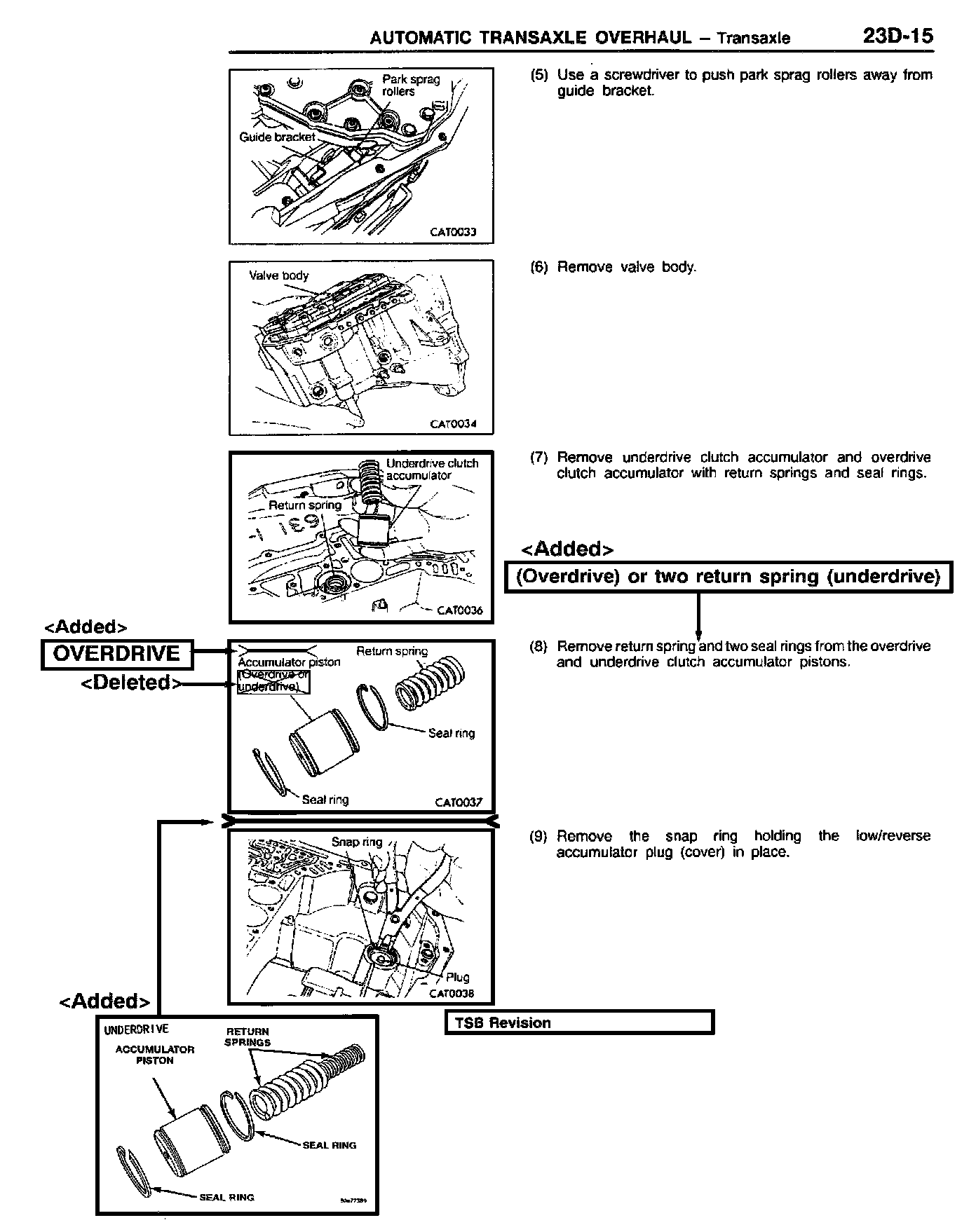

1996 Eclipse Service Manual, Volume 1, Page 23D-15

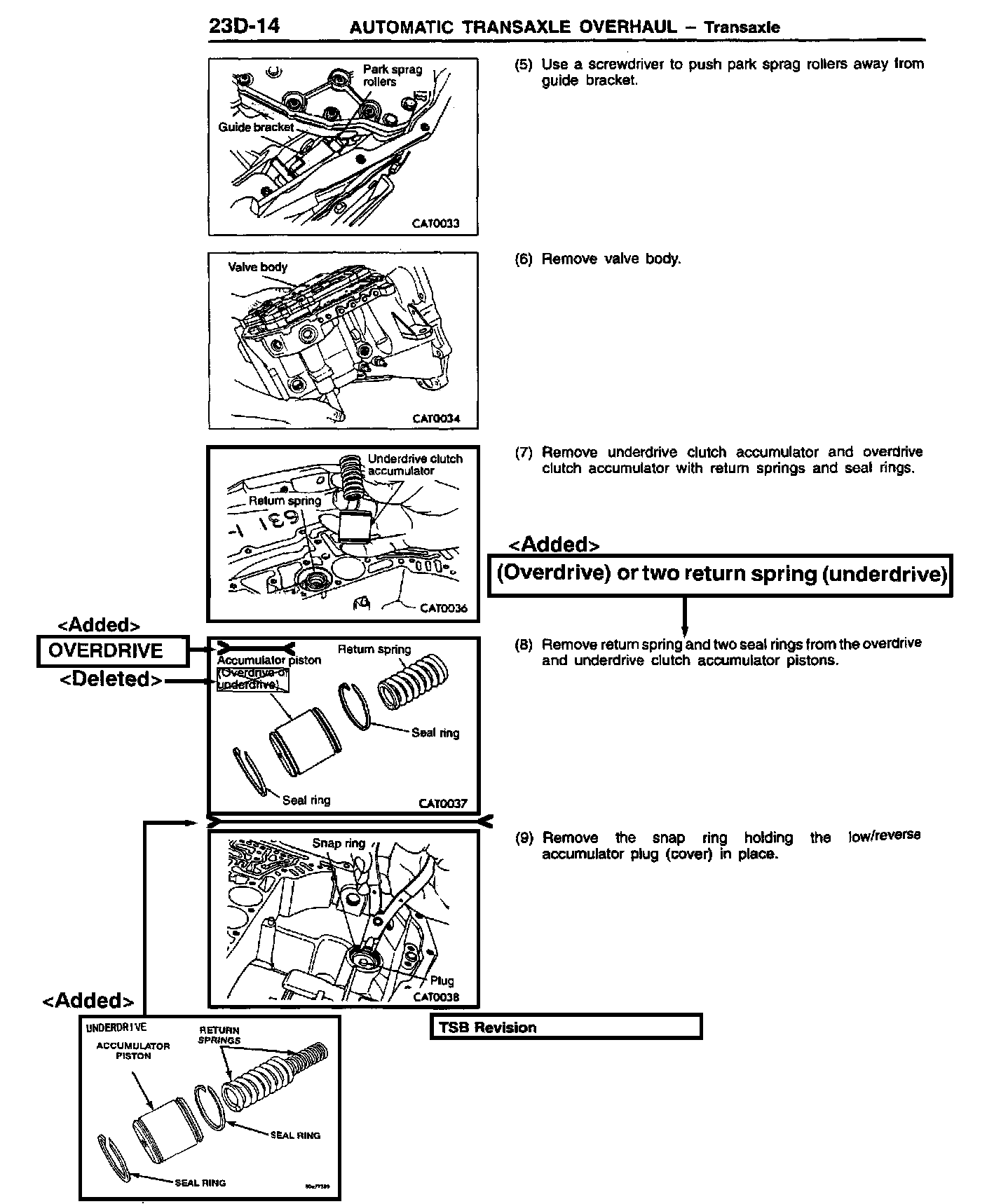

1997 & 1998 Eclipse/Eclipse Spyder Service Manuals, Volume 1, Page 23D-14

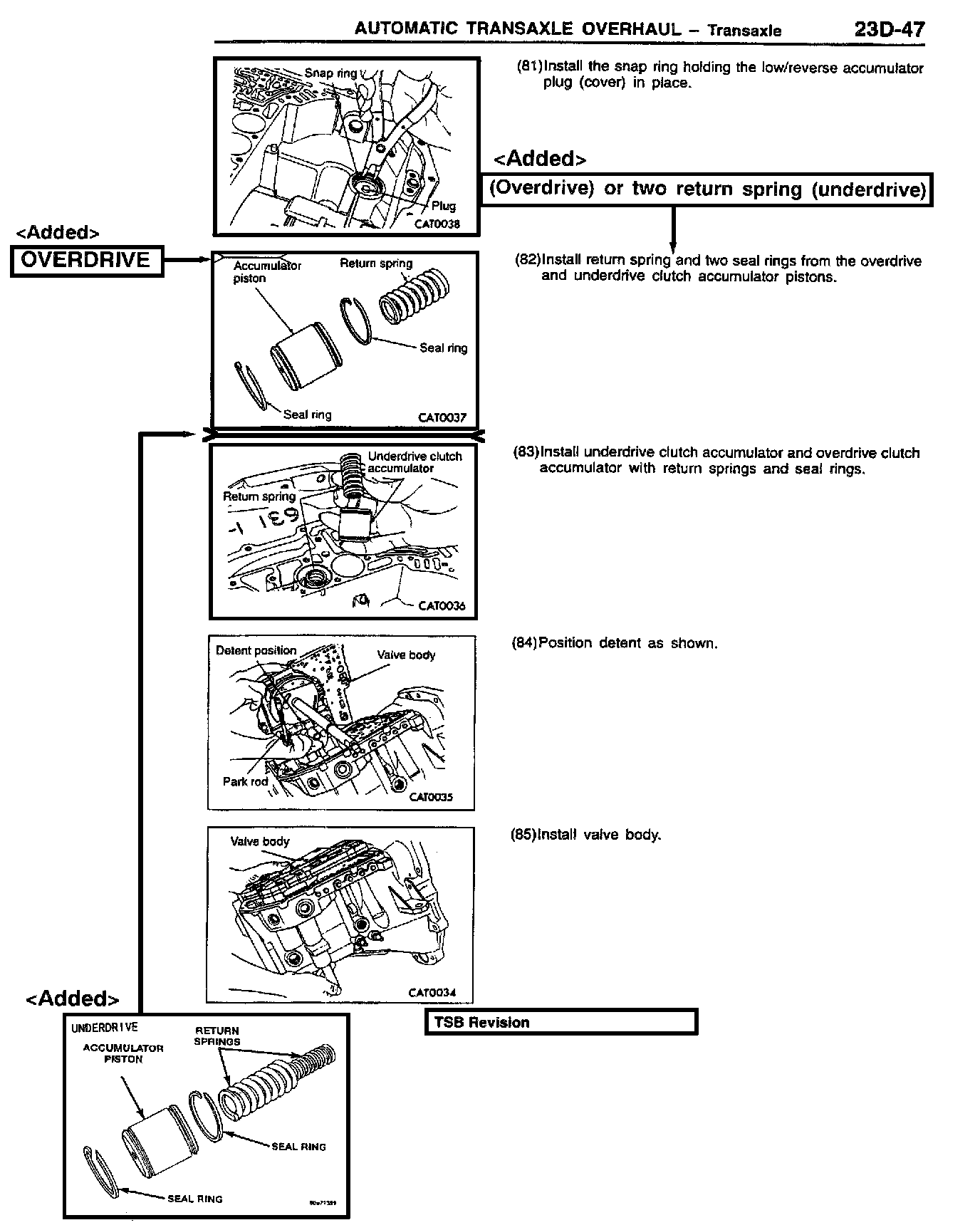

1996 Eclipse, 1997 & 1998 Eclipse/Eclipse Spyder Service Manuals, Volume 1, Page 23D-47
