A/T - Valve Body Service Procedure Revision
NO: TSB-99-23-008DATE: August, 1999
MODEL: 1997-98 Eclipse 2.0L Non-Turbo, A/T
SUBJECT:
CORRECTED VALVE BODY SERVICE PROCEDURES (CHECK BALLS & RETAINERS) - SERVICE MANUAL REVISION
[TSB Revision TSB-99-23-008]
PURPOSE
This bulletin contains corrected illustrations of the valve body in the F4AC1 automatic transaxle overhaul procedures.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997-98 Eclipse 2.0L, Non-Turbo equipped with the F4AC1 automatic transaxle
AFFECTED SERVICE MANUAL
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 23D-66, 69
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 23D-66, 69
SERVICE MANUAL REVISIONS

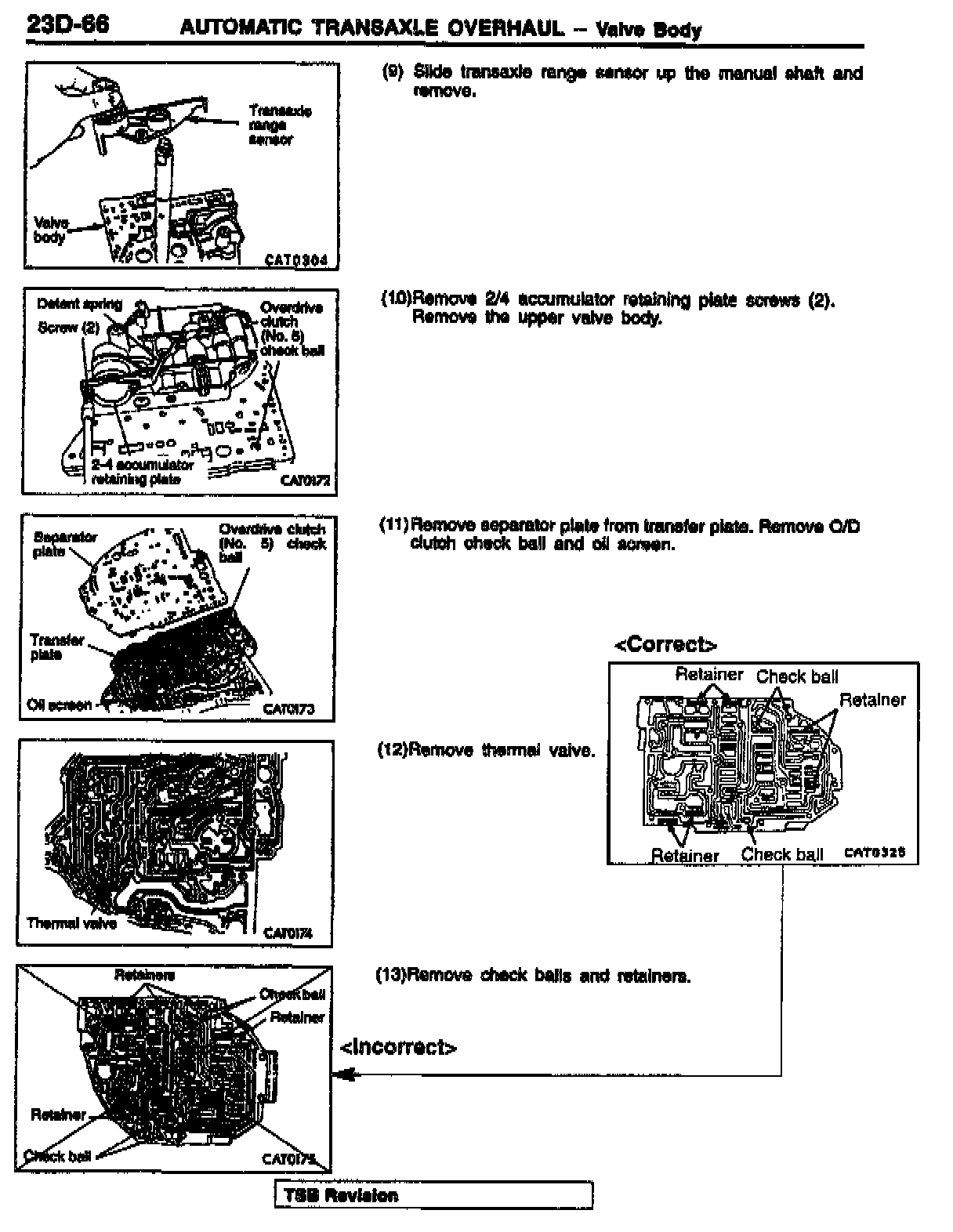

1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 23D-66
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 23D-66
Correct the illustration of the valve body in step 12 as shown:
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 23D-69
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 23D-69
Correct the illustration of the valve body in step 3 as shown:
