Automatic Transmission/Transaxle: Diagrams

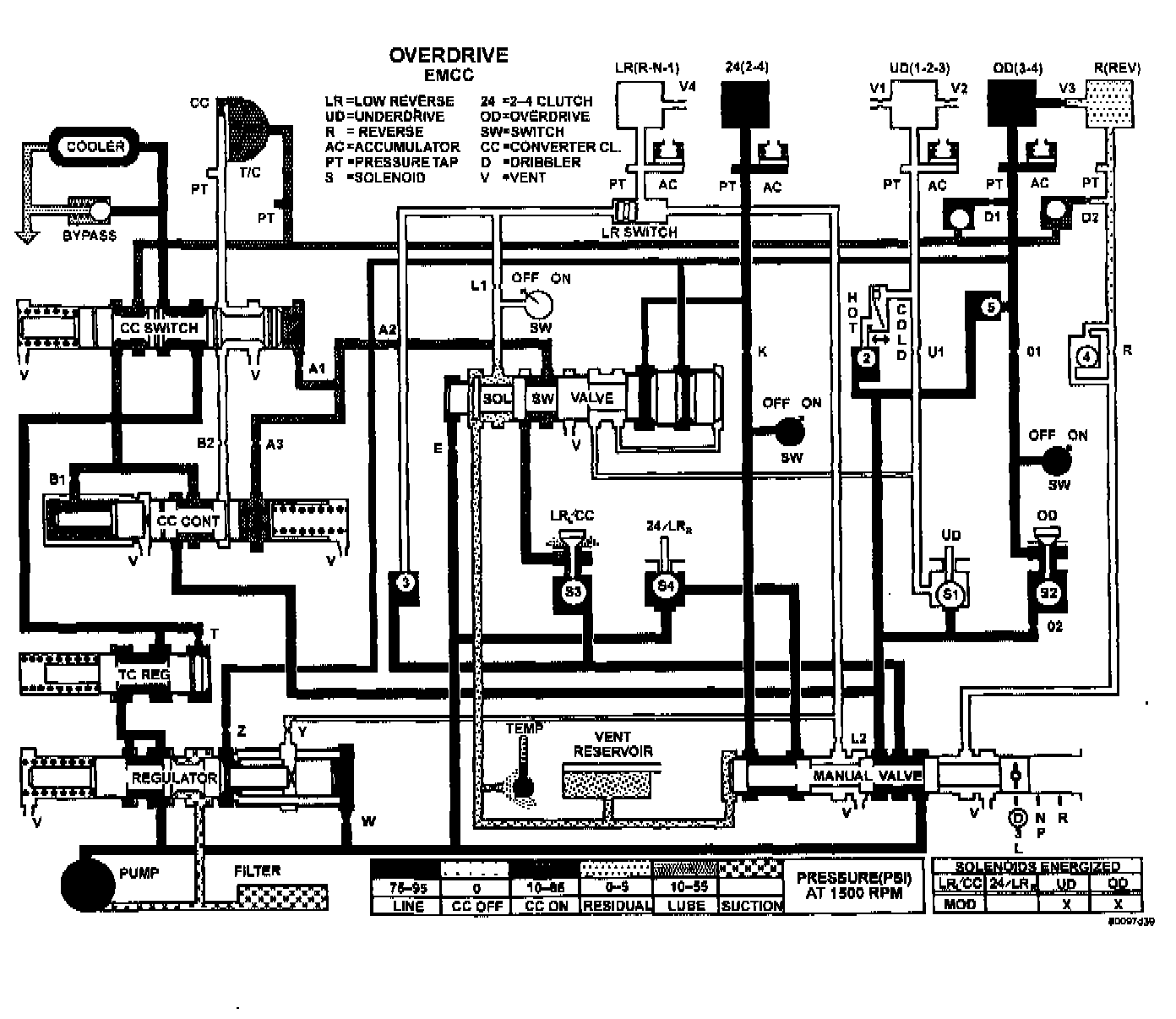

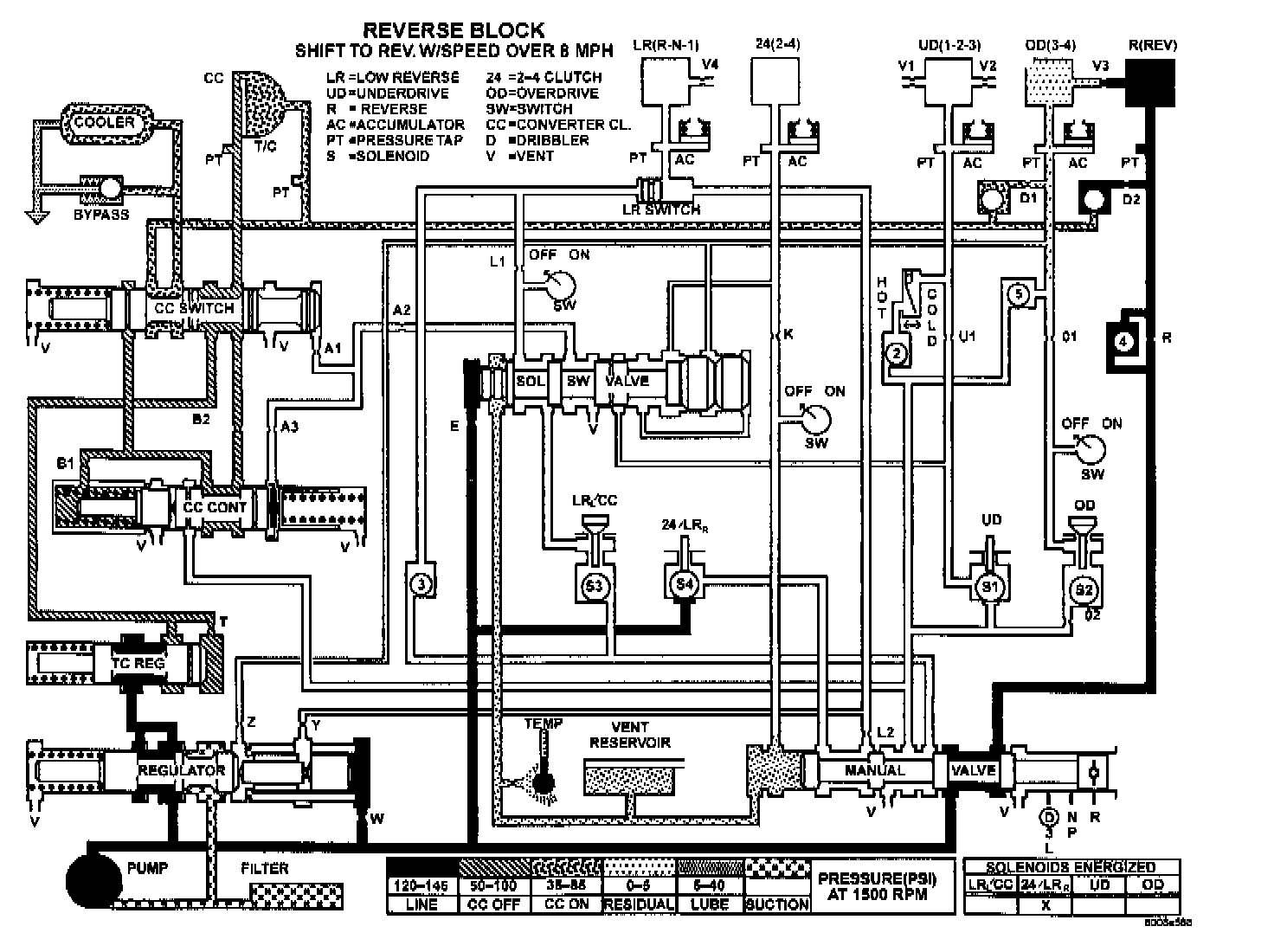

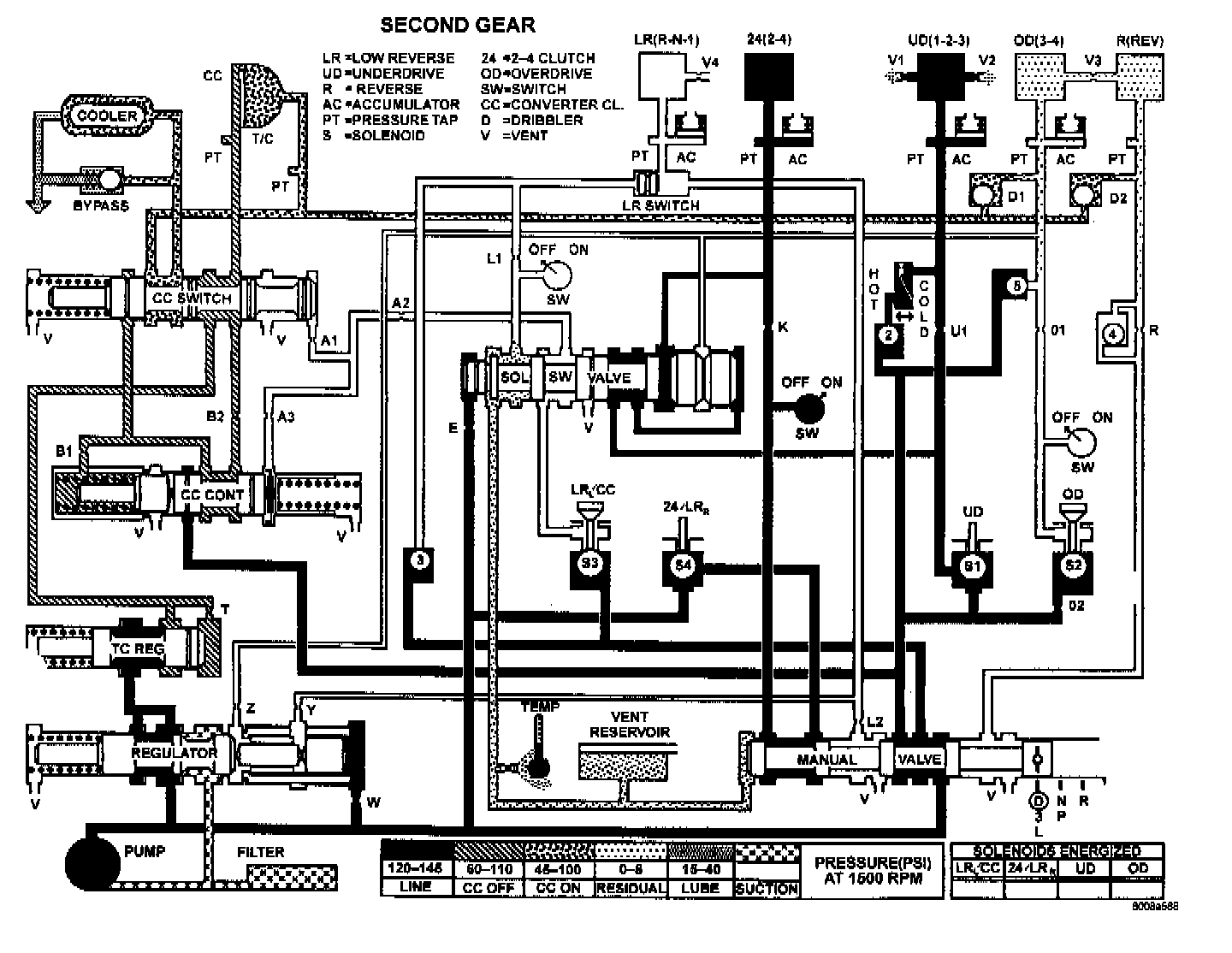

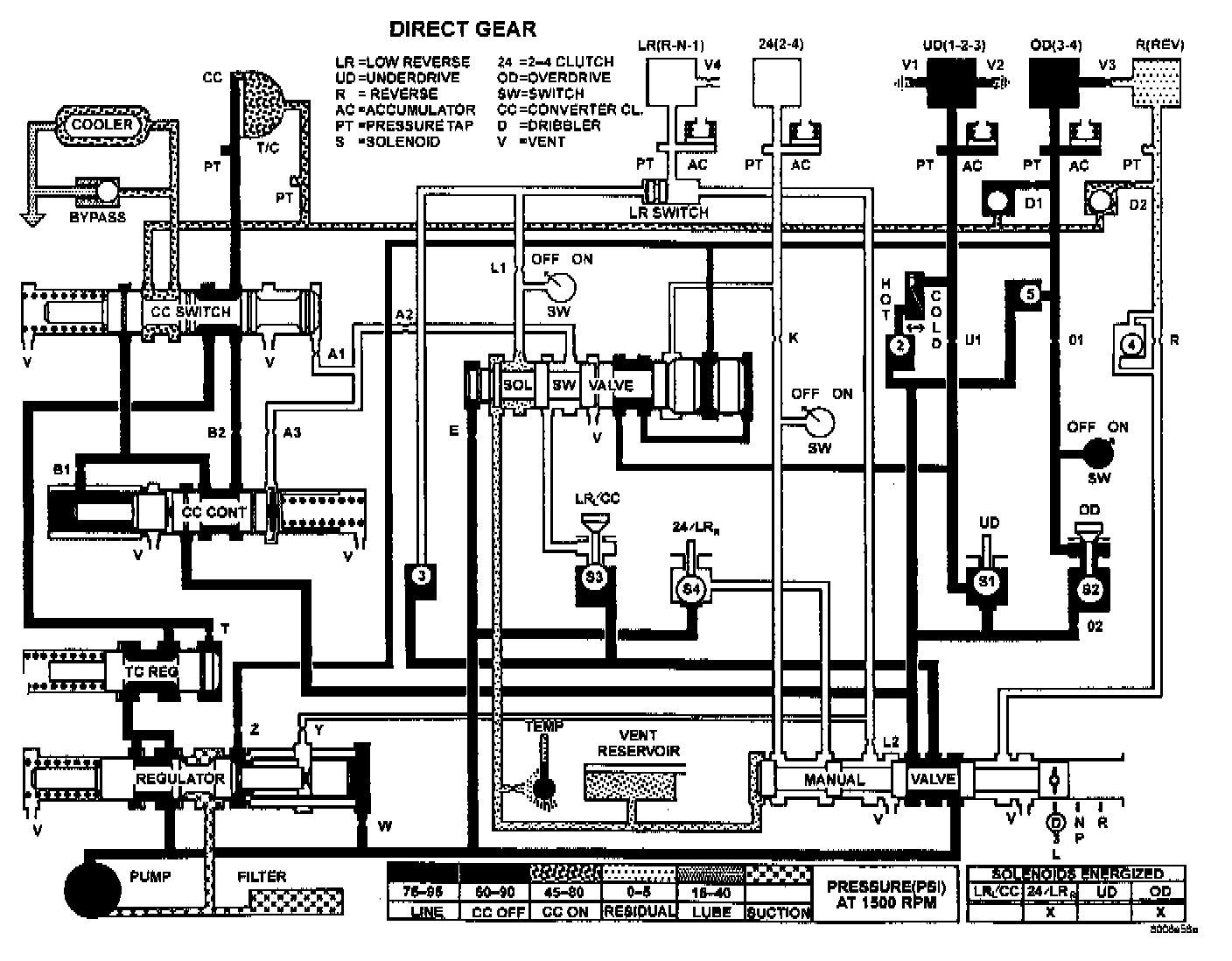

HYDRAULIC CIRCUIT

Electronically Modulated Converter Clutch

Electronically Modulated Converter Clutch

Converter Clutch ON

Electronically Moderated Converter Clutch

Converter Clutch ON
