Blower Motor Resistor: Testing and Inspection

RESISTOR RESISTANCE CHECK

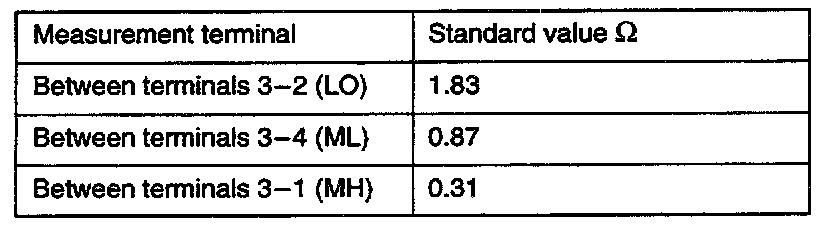

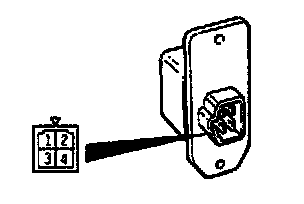

Use an ohmmeter to measure the resistance between the terminals as indicated. Check that the measured value is at the standard value.
