Hose/Line HVAC: Service and Repair

INSTALLATION SERVICE POINT

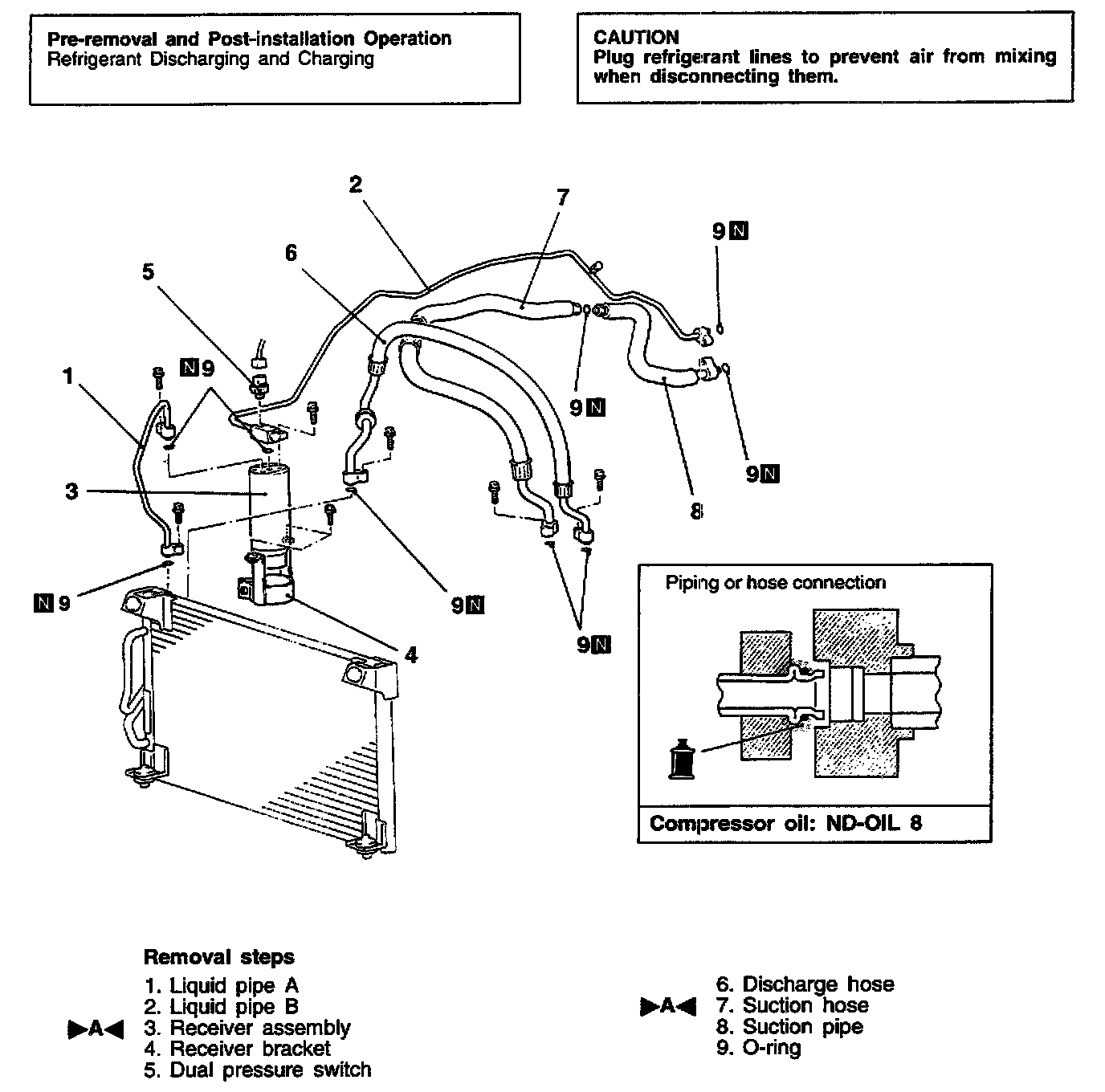

A SUCTION HOSE, RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose or the receiver assembly, refill them with a specified amount of compressor oil.
Compressor oil:
ND-OIL 8
Quantity:
Suction hose: 10 cu cm (.34 fl.oz.)
Receiver: 10 cu cm (.34 fl.oz.)
