Drive Belt: Adjustments
Generator Drive Belt Tension Check
Check the belt tension with the tension gauge, or check the belt deflection by pressing the middle point of the belt by a force of 98 N (22 lbs.).
Standard value:
Tension: 400 - 490 N (90 - 110 lbs.)
Deflection
Generator Drive Belt Tension Adjustment
1 Remove the under cover side panel (R.H.).
2. Loosen the generator pivot nut.
3. Loosen the lock nut.
4. Turn the adjusting screw to adjust the belt tension or deflection to the standard value.
NOTE: When installing a new belt, apply 310 N (70 lbs.) of tension for 5 minutes or more, and then apply the final tension.
Standard value
5. Tighten the generator pivot nut.
Tightening torque: 54 Nm (40 ft. lbs.)
6. Tighten the lock nut.
Tightening torque: 61 Nm (45 ft. lbs.)
7. Install the under cover side panel (R.H.).
Power Steering Oil Pump Drive Belt Tension Check
Use the belt tension gauge to check belt tension at the shown point or check deflection by applying 98 N (22 lbs.) to the shown point.
Standard value: Tension: 400 - 489 N (90 - 110 lbs.)
Deflection: 11.0 - 14.0 mm (0.43 - 0.55 inches)
Power Steering Oil Pump Drive Belt Tension Adjustment
1. Loosen power steering oil pump fixing bolt (A, B, C).
2. Move power steering oil pump, tension belt moderately and adjust tension.
3. Tighten the fixing bolt (A).
Tightening torque: 39 Nm (29 ft. lbs.)
4. Tighten the remaining fixing bolts (B and C).
Tightening torque: 39 Nm (29 ft. lbs.)
5. Check the belt deflection mount and readjust if necessary.
CAUTION: Turn the crankshaft one full rotation or more clockwise before this check.

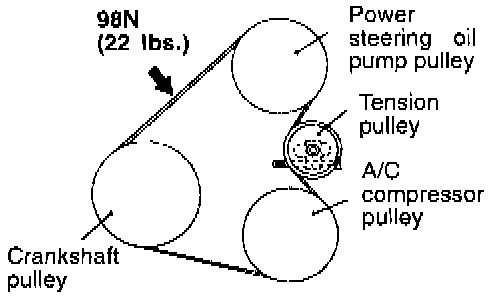

Power Steering Oil Pump And A/C Compressor Drive Belt Tension Check
Use the belt tension gauge to check belt tension at the shown point or check deflection by applying 98 N (22 lbs. ) to the shown point.
Standard value: Tension: 412 - 510 N (92.6 - 114.6 lbs.)
Deflection: 10.0 - 11.0 mm (0.39 - 0.43 inches)

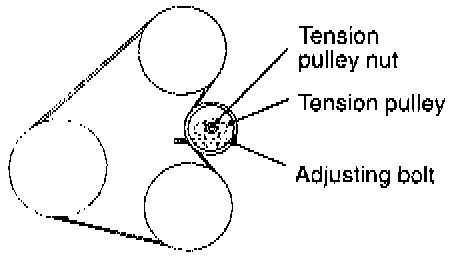

Power Steering Oil Pump and A/C Compressor Drive Belt Tension Adjustment
1. Loosen the tension pulley nut.
2. Adjust the belt deflection amount using the adjusting bolt.

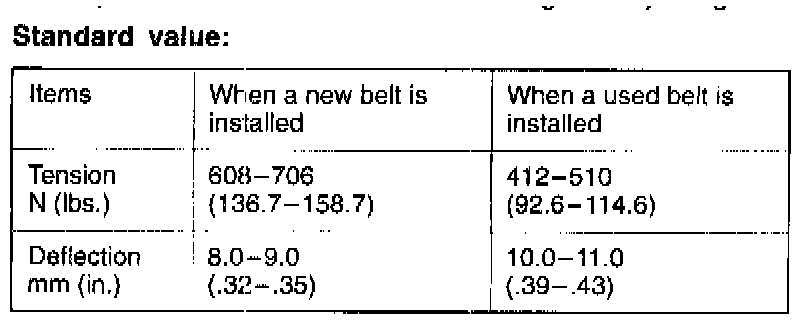

Standard value
3. Tighten the tension pulley nut.
CAUTION: Fix the power steering oil pump at the closest position to the vehicle front.
