Sensors

Sensor Locations Overall View:

Sensor Locations Views A-J:

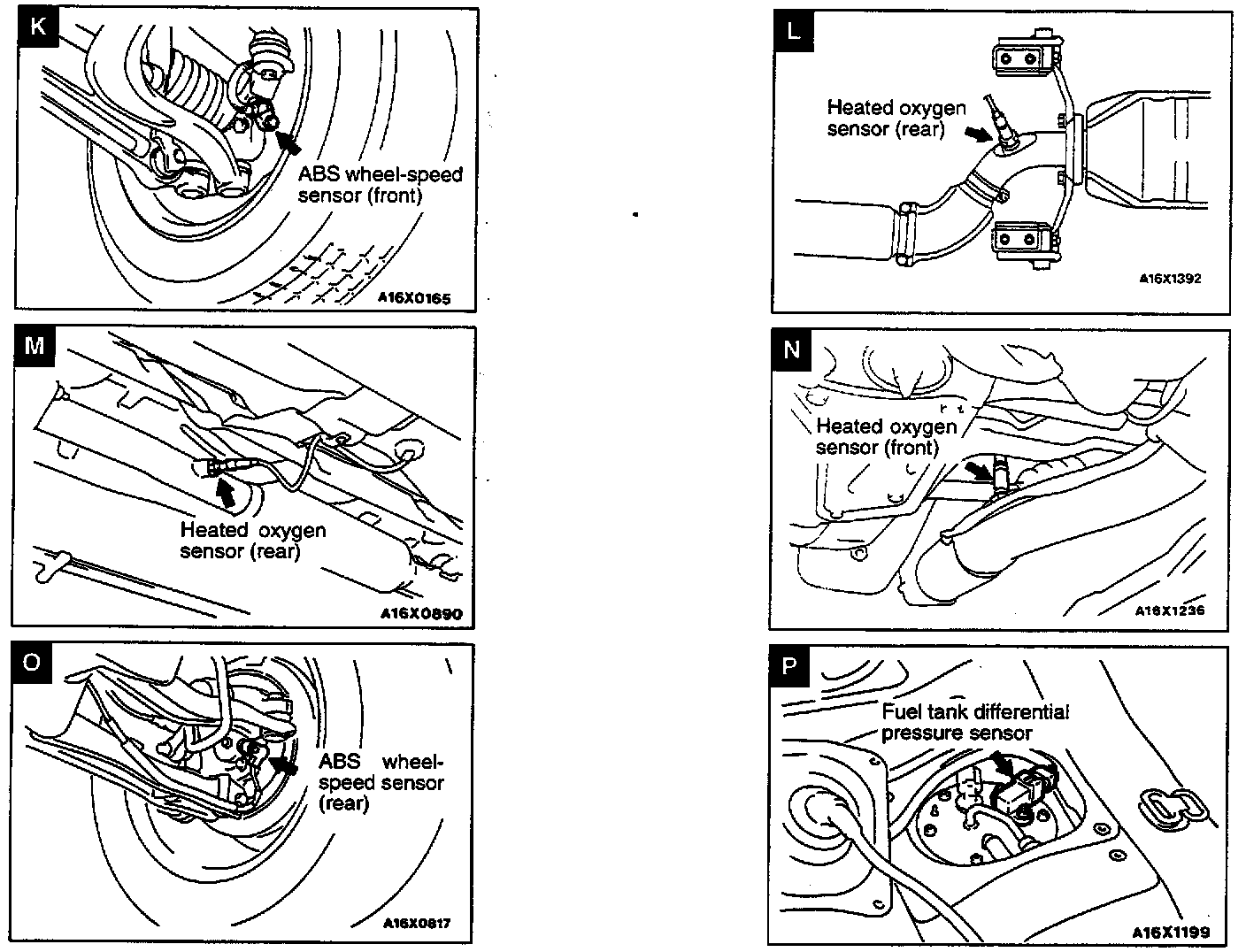

Sensor Locations Views K-P:

Name Symbol
ABS Wheel Speed Sensor(front) K
ABS Wheel Speed Sensor(rear) O
A/T Fluid Temperature Sensor F
Camshaft Position Sensor C
Crankshaft Position Sensor I
Engine Coolant Temperature Sensor G
Fin Thermo Sensor J
Fuel Tank Differential pressure sensor P
Heated Oxygen Sensor (front)
(Vehicle for Federal) N
(Vehicle for California) H
Heated Oxygen Sensor (rear)
(Vehicle for Federal) M
(Vehicle for California) L
Manifold Differential Pressure Sensor E
Throttle Position Sensor D
Vehicle Speed Sensor B
Volume Air Flow Sensor A
