A Connectors - Engine Compartment Harness

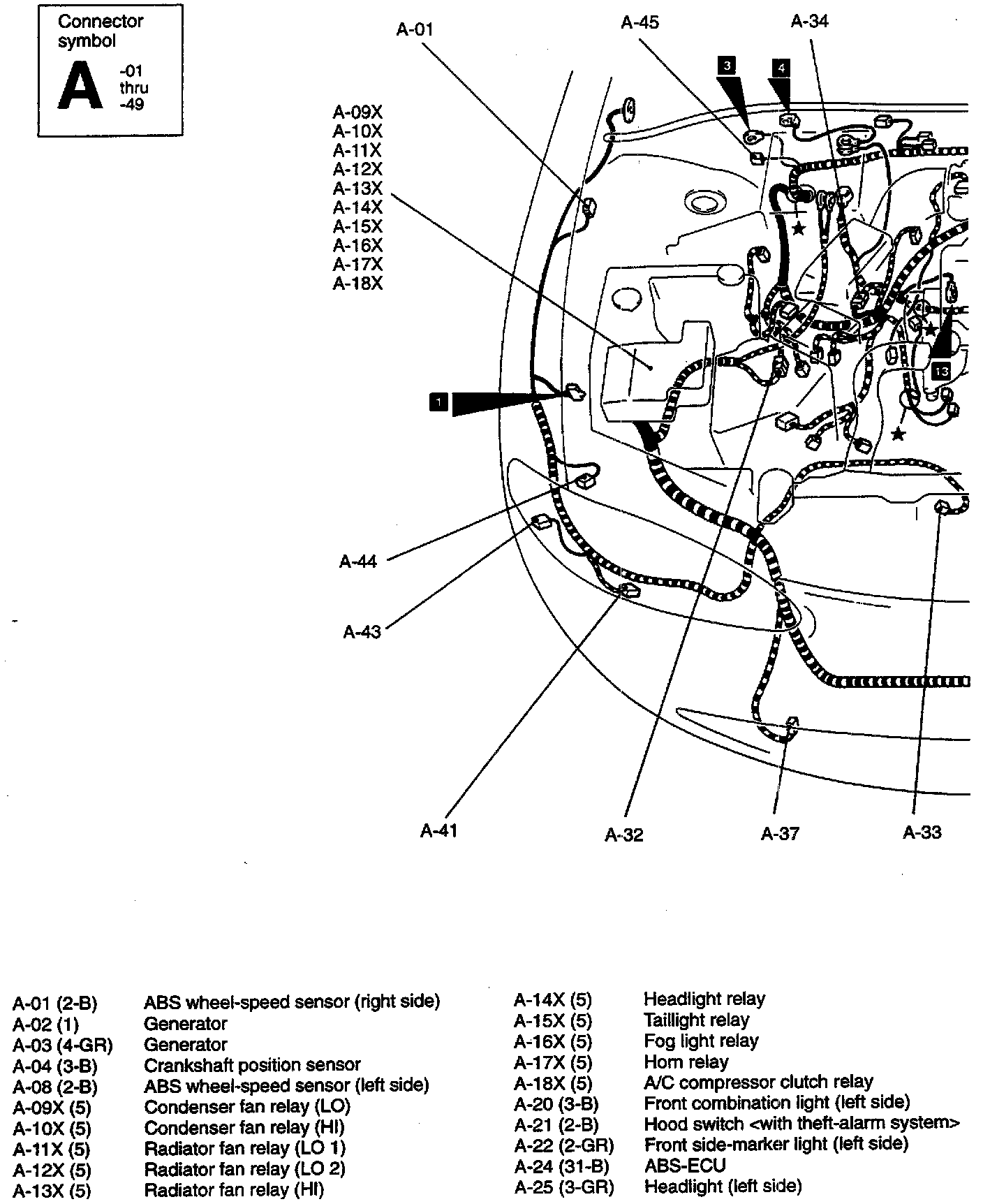

Engine Compartment A-01(2-B) Thru A-25(3-GR):

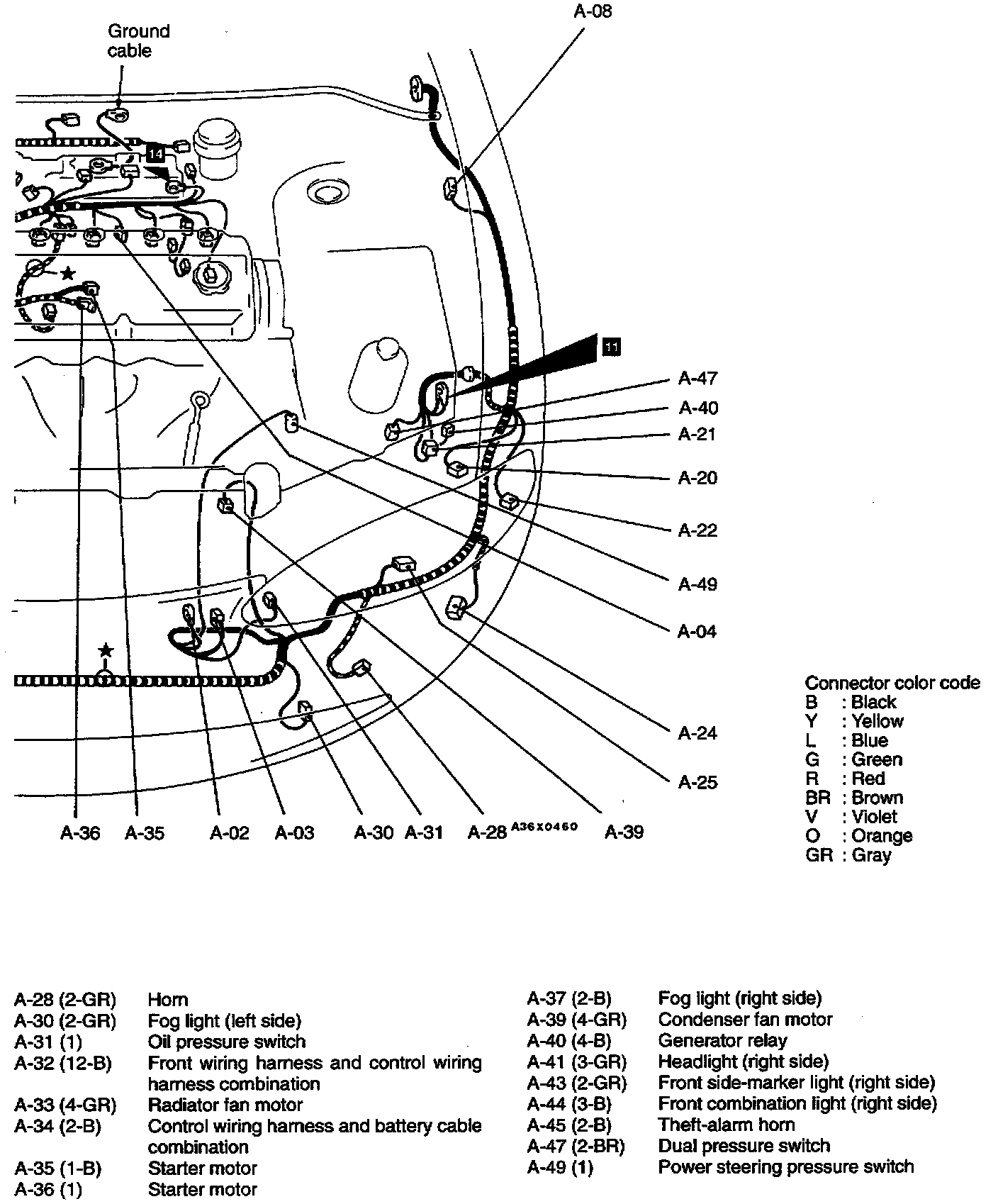

Engine Compartment A-28(2-GR) Thru A-49(1):

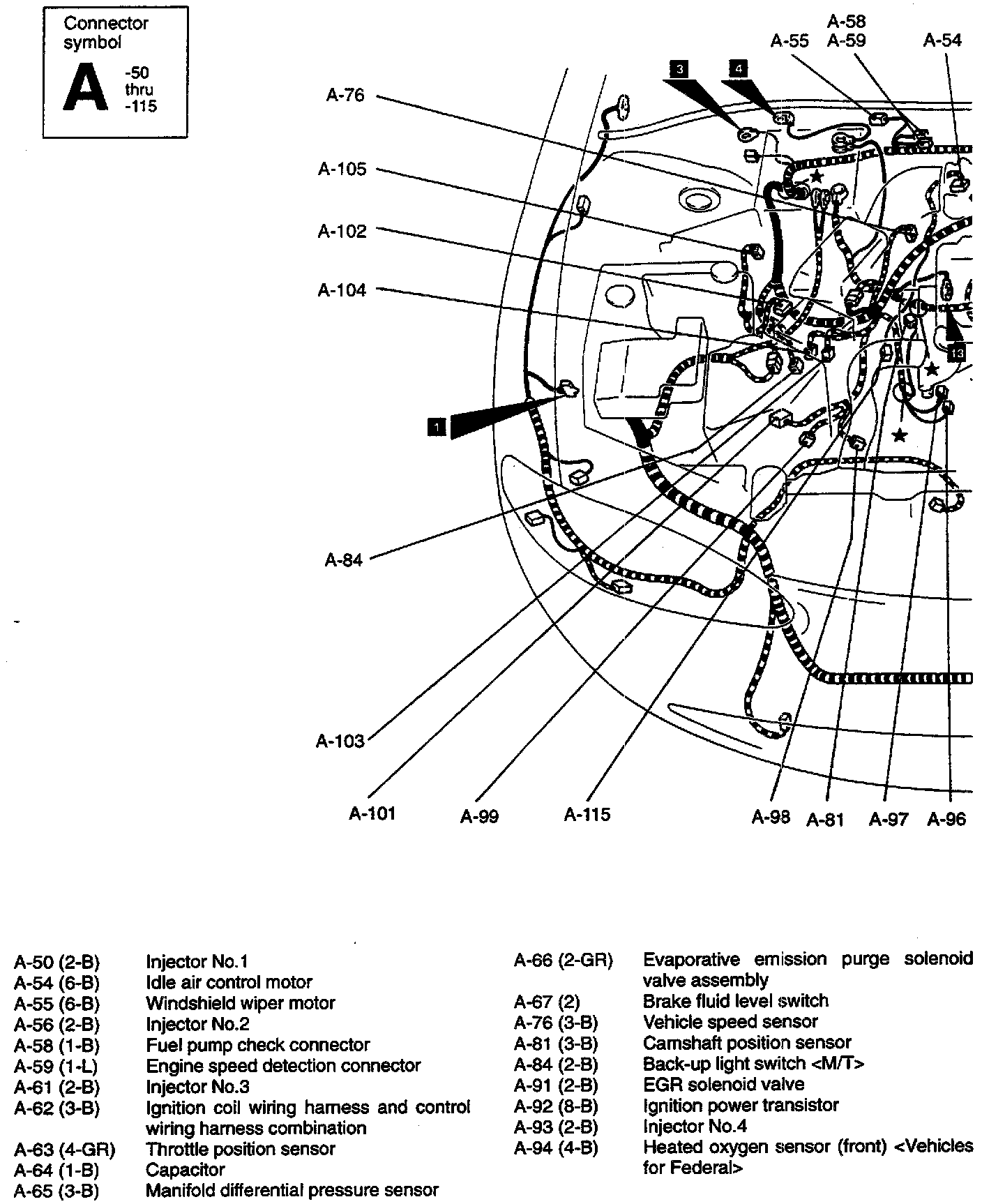

Engine Compartment A-50(2-B) Thru A-94(4-B):

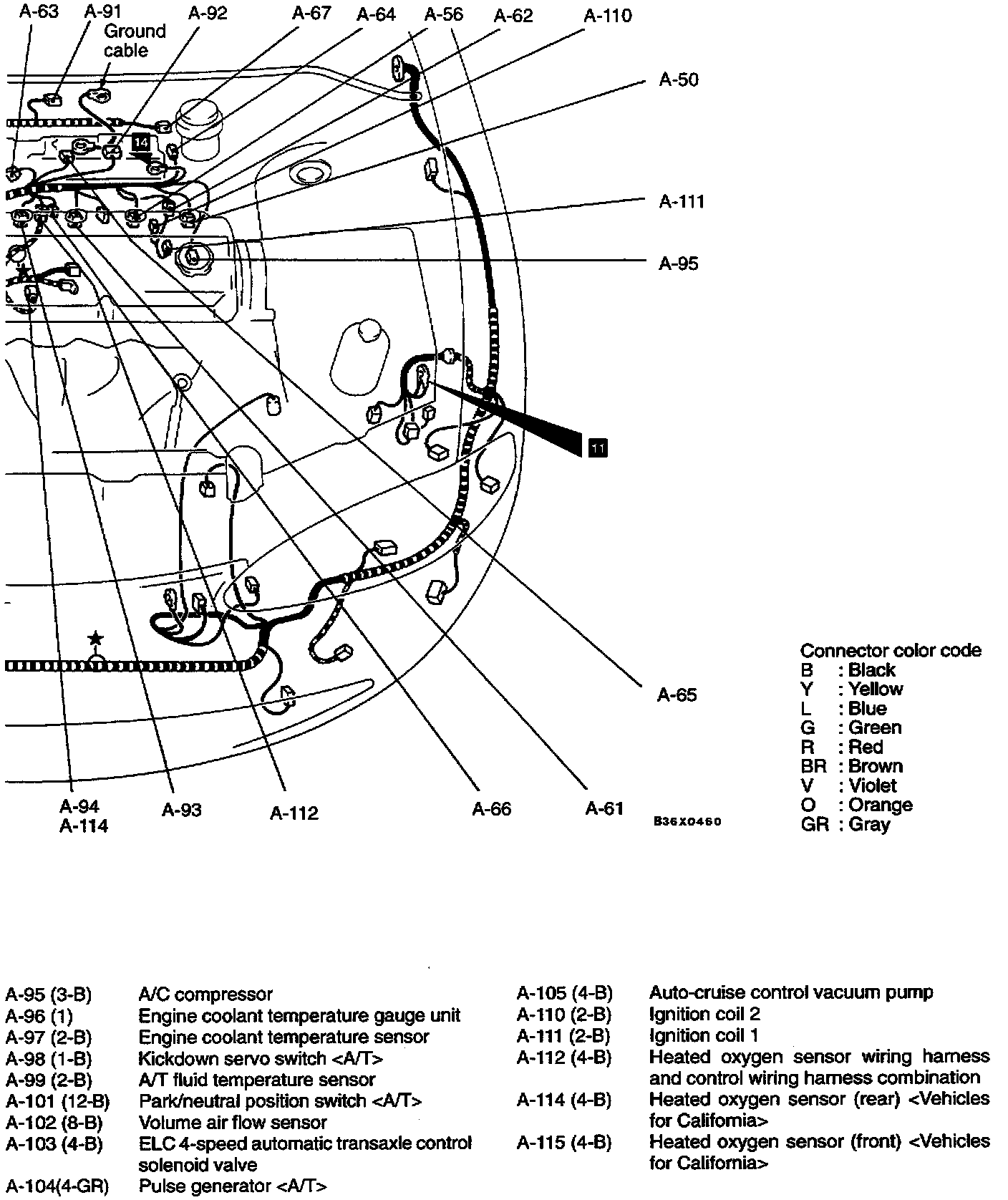

Engine Compartment A-95(3-B) Thru A-115(4-B):
