Ignition System - Spark Plug Identification
NO: TSB-98-16-003DATE: October, 1998
MODEL: See Below
SUBJECT:
SPARK PLUG CHANGE (CHAMPION) - SERVICE MANUAL REVISION
[TSB Revision TSB-98-16-003]
PURPOSE
This bulletin contains information concerning a change of spark plug. Beginning with August, 1997 production, 1998 Eclipse Spyder GS (2.4L) and 1998 Galant vehicles were equipped with the Champion RC10YC4 spark plug. This new spark plug can also be used in place of the Champion RC9YC4 originally installed in 1998 Eclipse Spyder GS or 1998 Galant built up to July 1997.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1998 Eclipse Spyder GS (2.4L)
1998 Galant
AFFECTED SERVICE MANUALS
1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 16-56
1998 Galant Service Manual, Volume 1, Page 16-30
SERVICE MANUAL REVISIONS

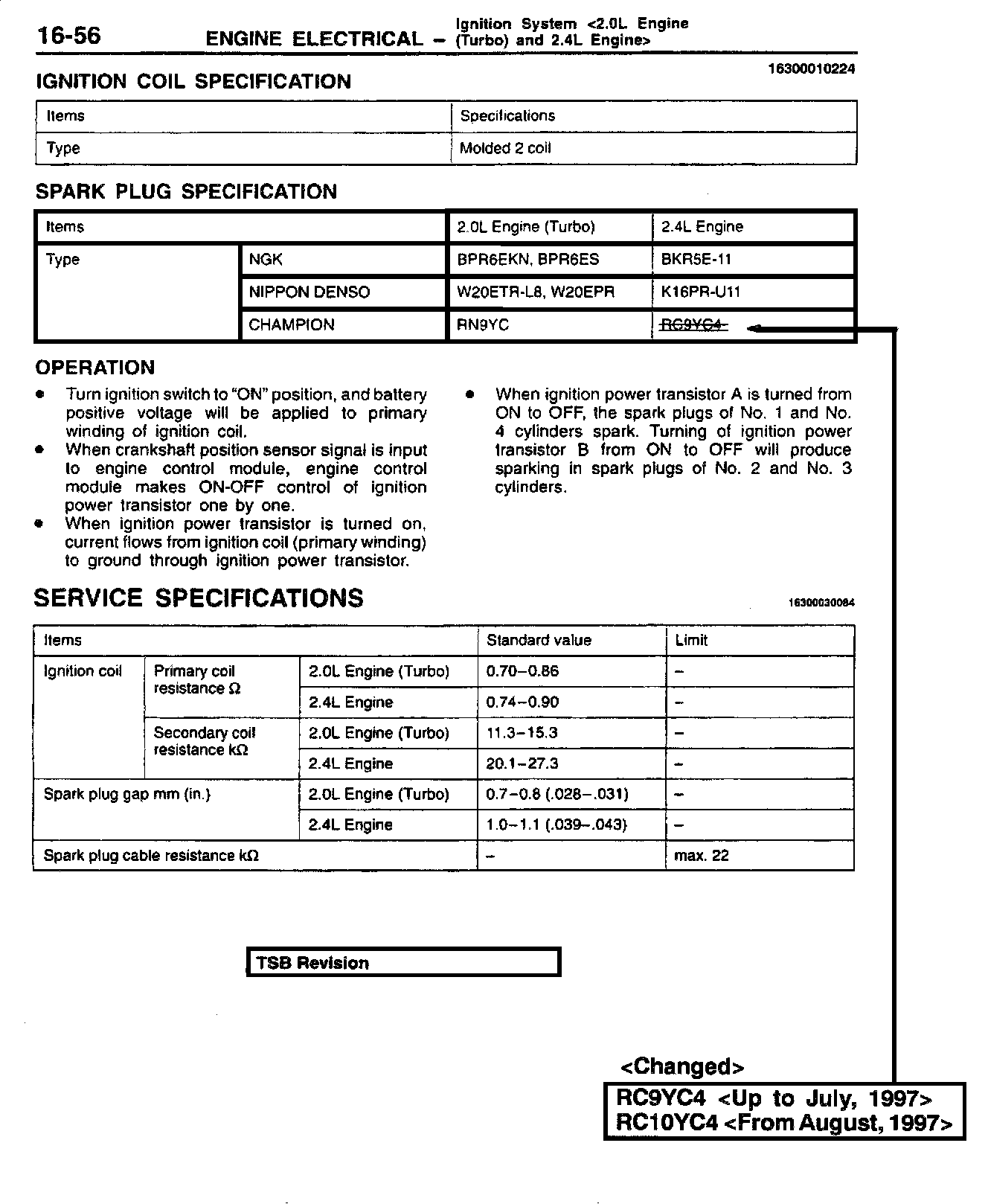

1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 16-56 Add the new spark plug information as shown:

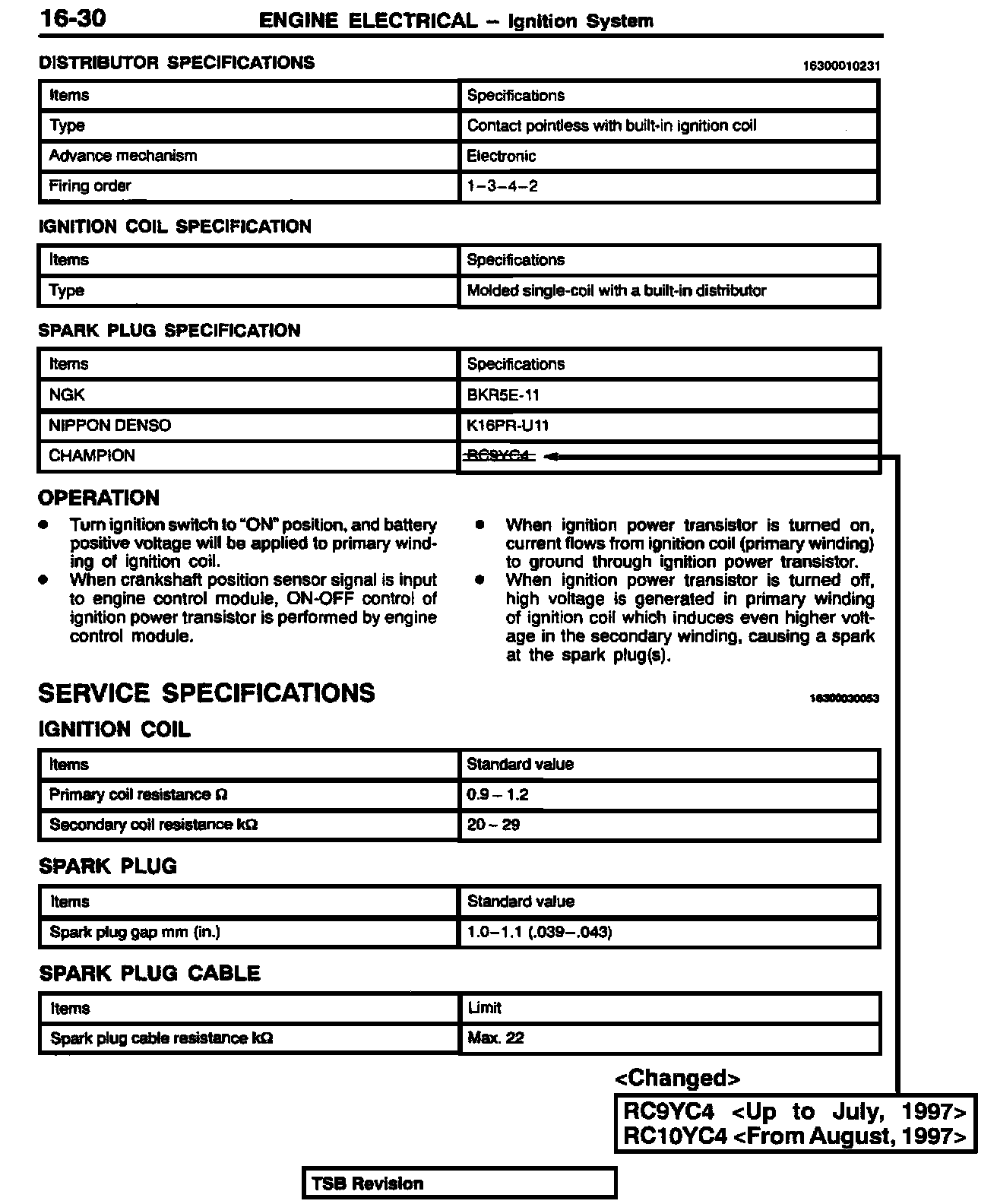

1998 Galant Service Manual, Volume 1, Page 16-30 Add the new spark plug information as shown:
