Fuel Gauge Sender

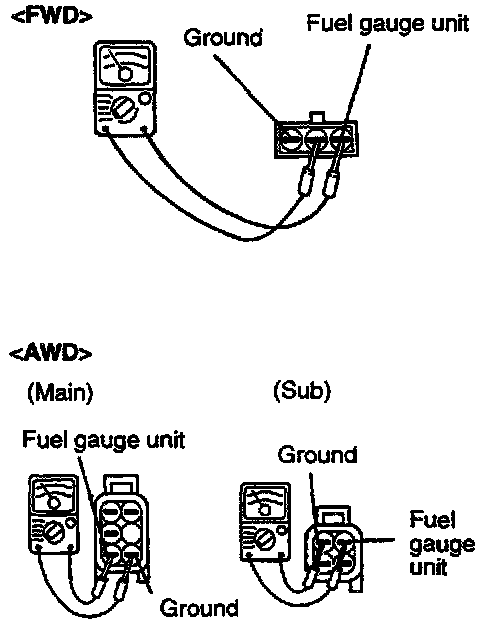

Fuel Gauge Sender
Fuel gauge unit resistance Ohm
Float point "F"
4 ± 2
Float Point "E"
112 ± 7
