Mirrors: Testing and Inspection

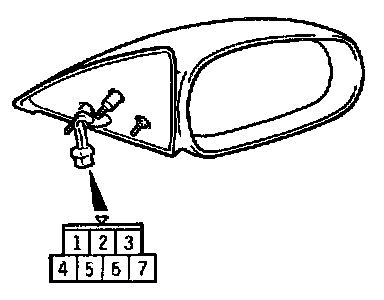

ELECTRICALLY CONTROLLED MIRROR CHECK
Check that the mirror moves as described in the table when each terminal is connected to the battery.

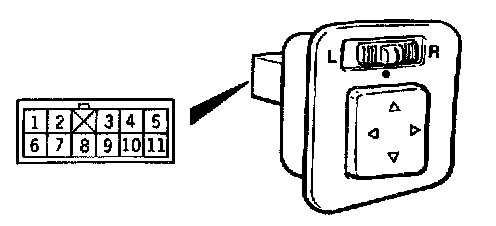

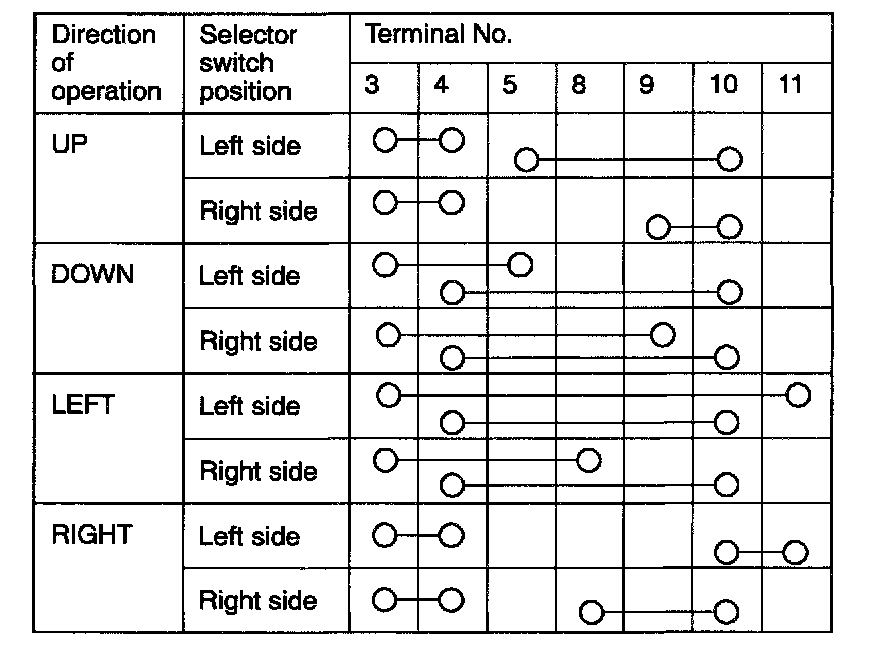

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK
