Home
>>
Mitsubishi
>>
1999
>>
Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lamp
Backup Lamp

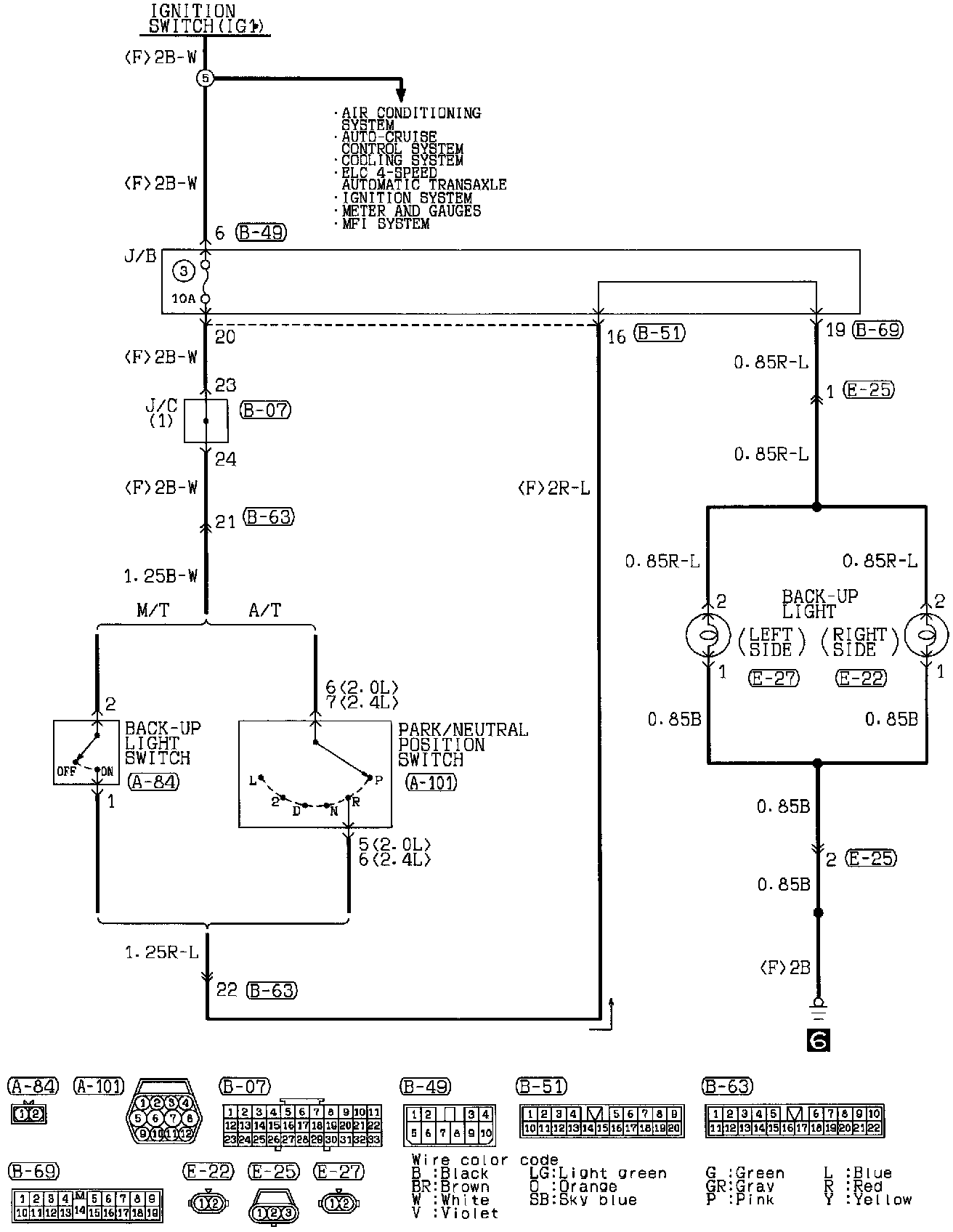

Backup Light (Part 2 Of 2):
