Condenser Fan Motor Relay: Locations

Relay Locations Overall View:

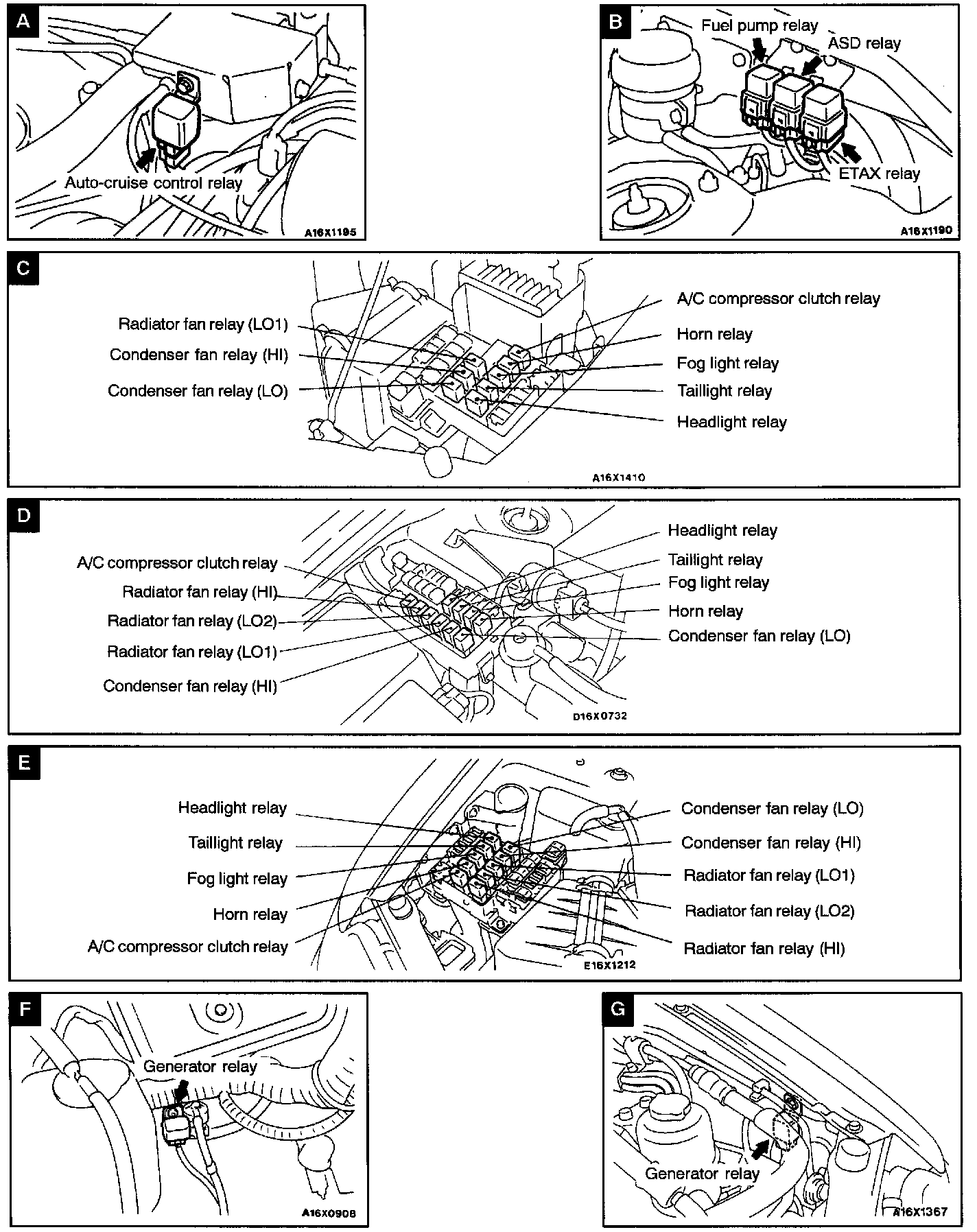

Relay Location Views A-G:






Name Symbol
Condenser Fan Relay(HI),(LO) D
