Condenser Fan Motor Relay: Testing and Inspection

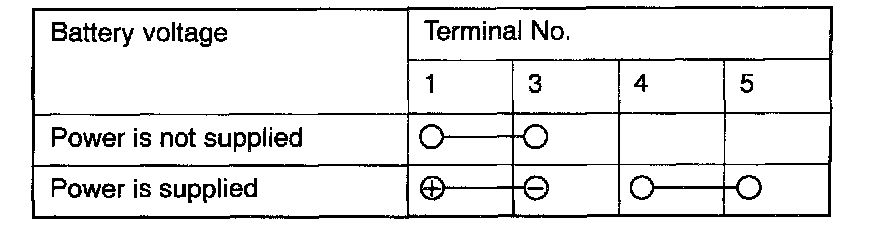

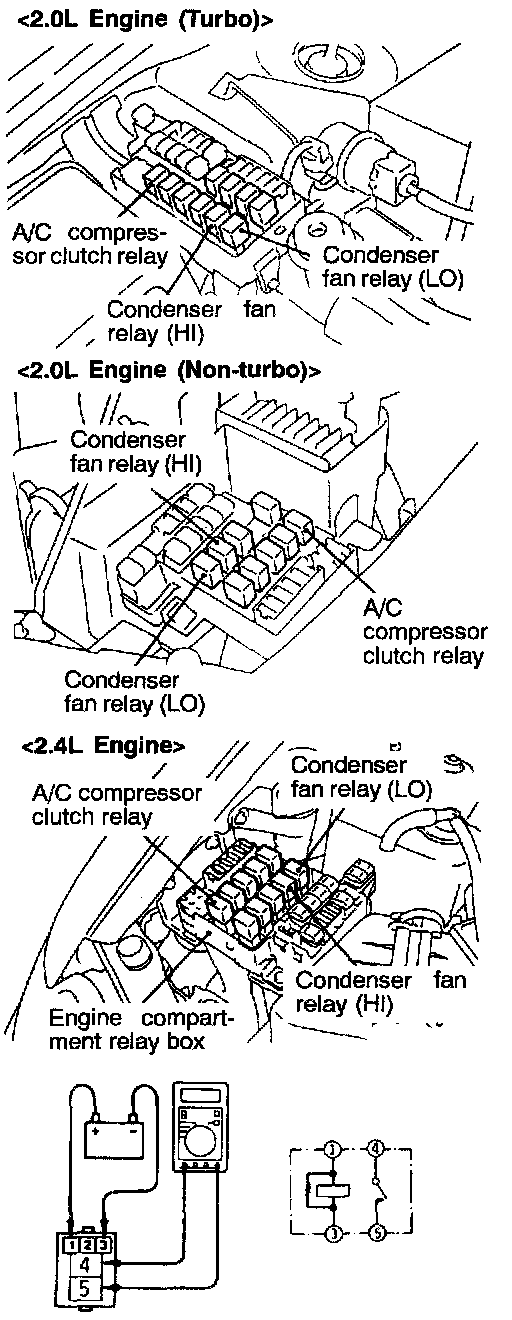

A/C COMPRESSOR CLUTCH RELAY, CONDENSER FAN RELAY (LO) AND (HI) CONTINUITY CHECK
